SIP 6" Swivel & Tilt Machine Vice

01727

Click on image to enlarge

*These images are representative

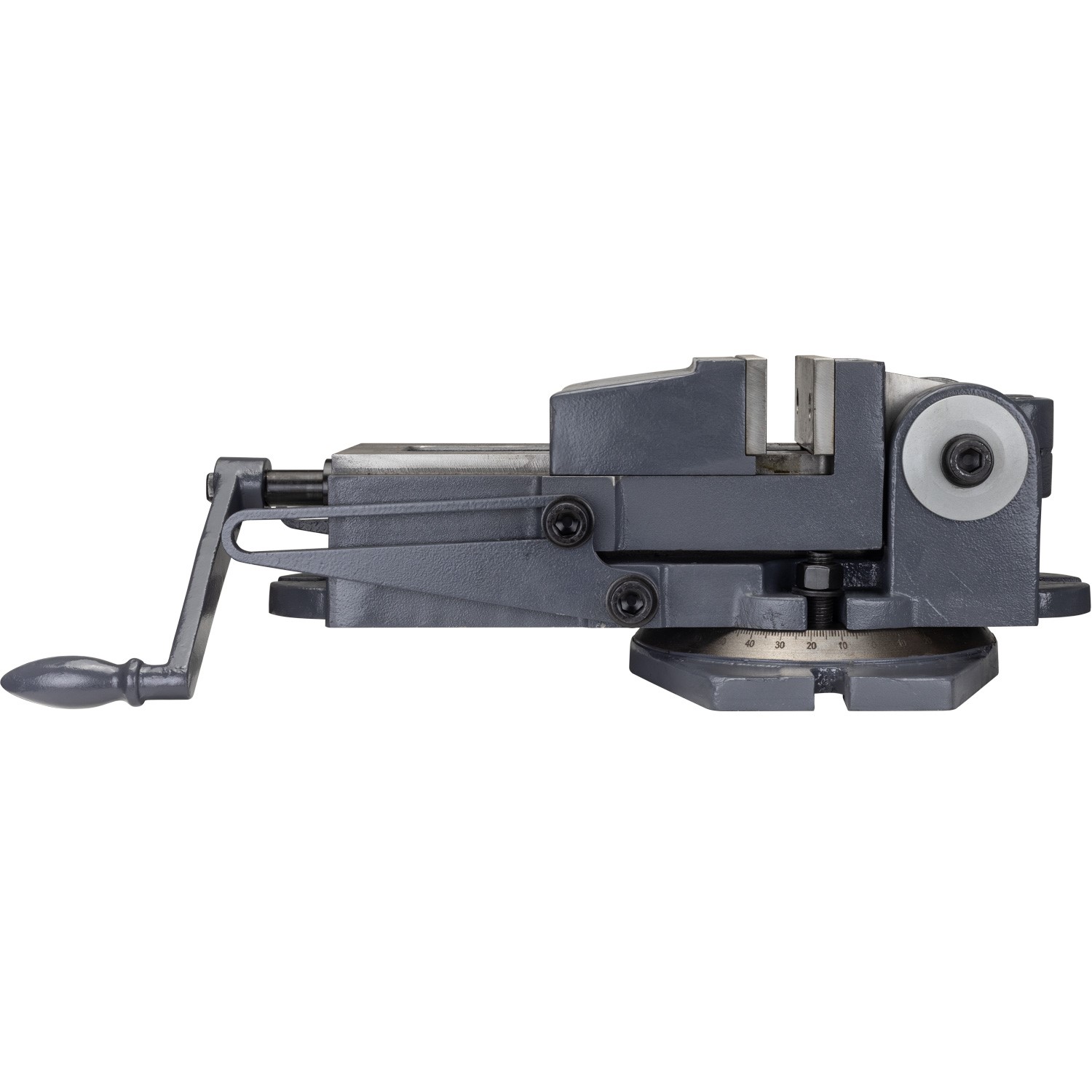

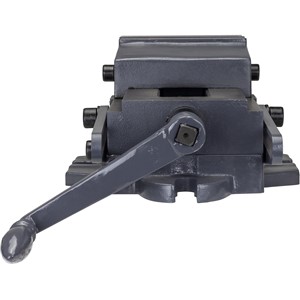

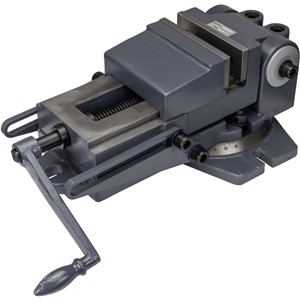

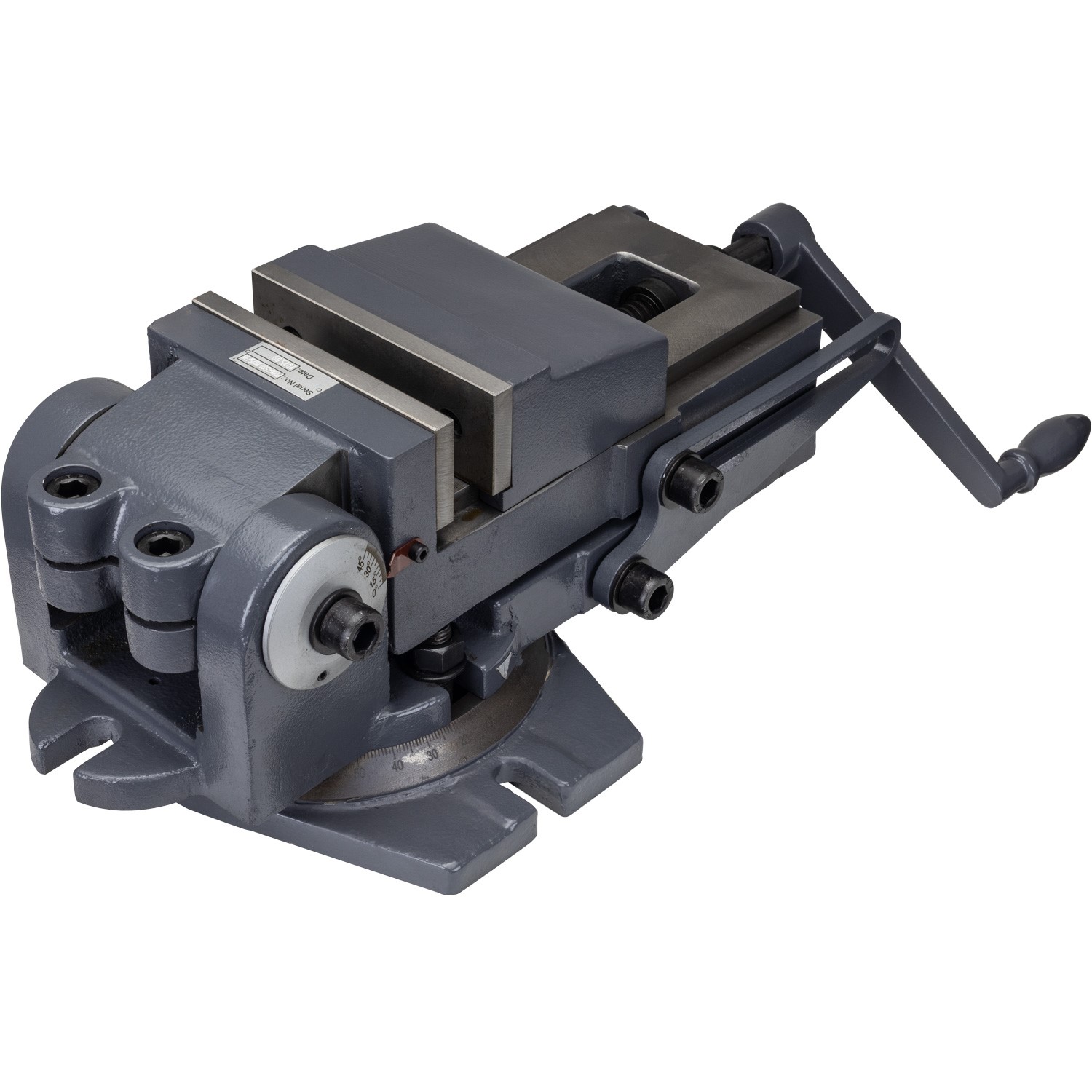

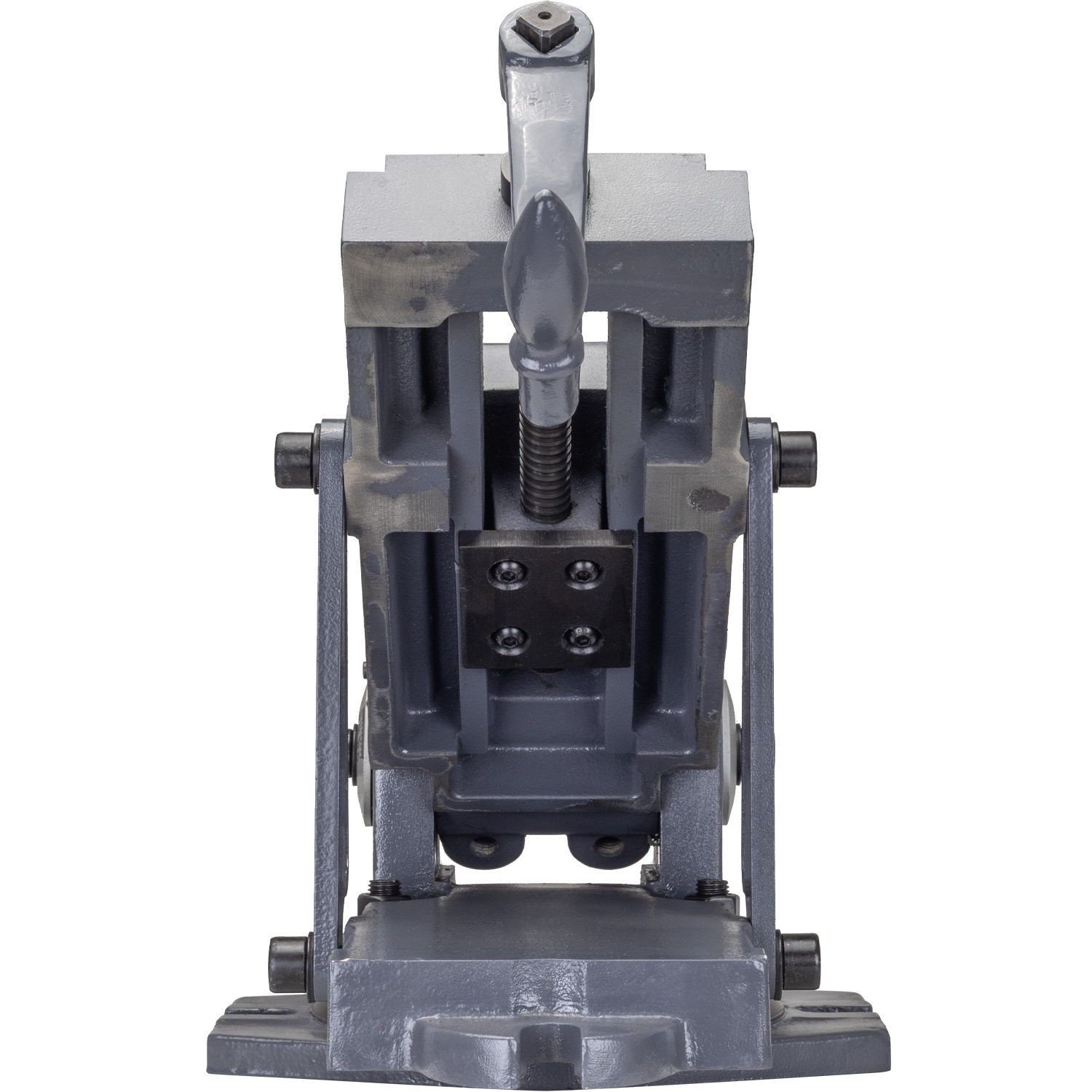

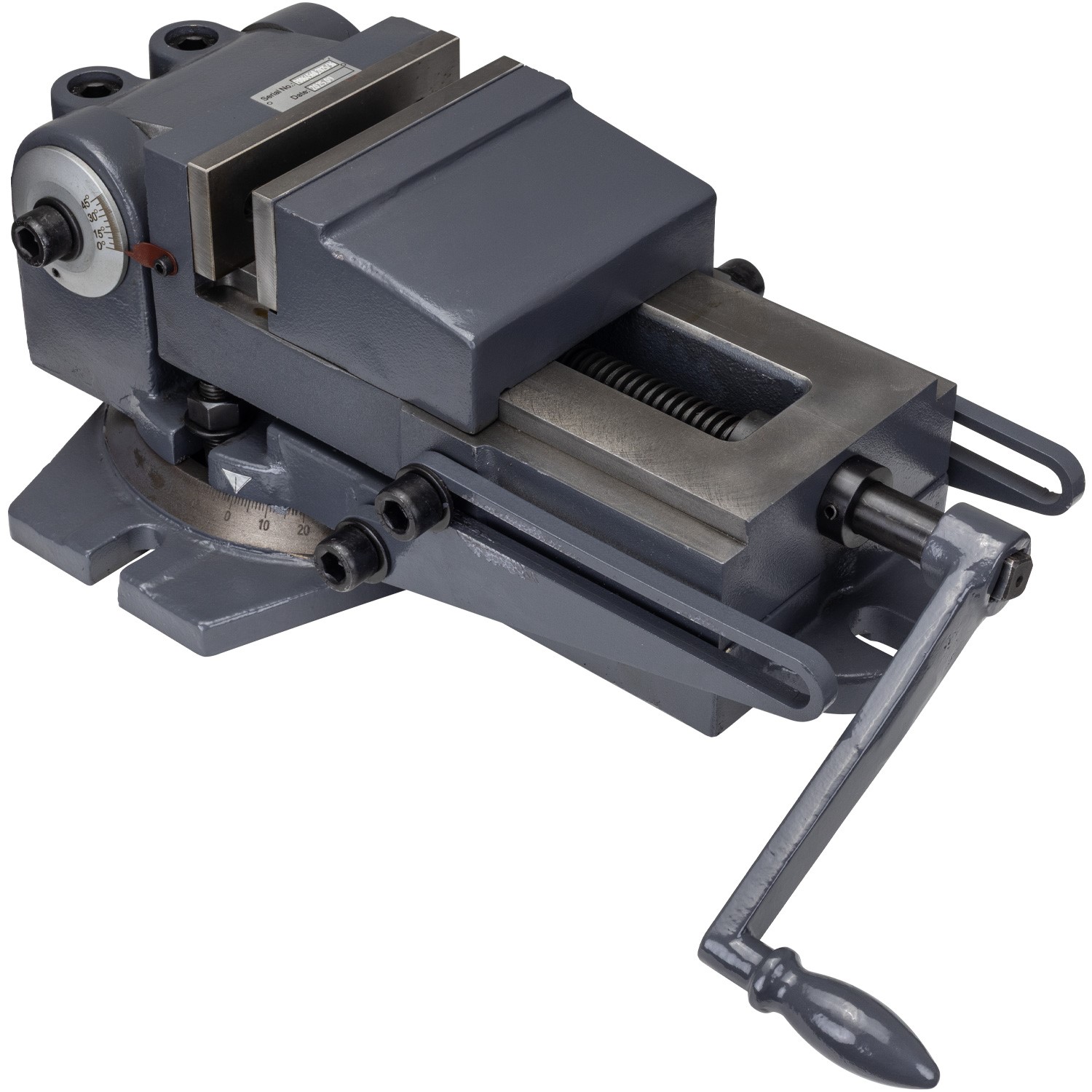

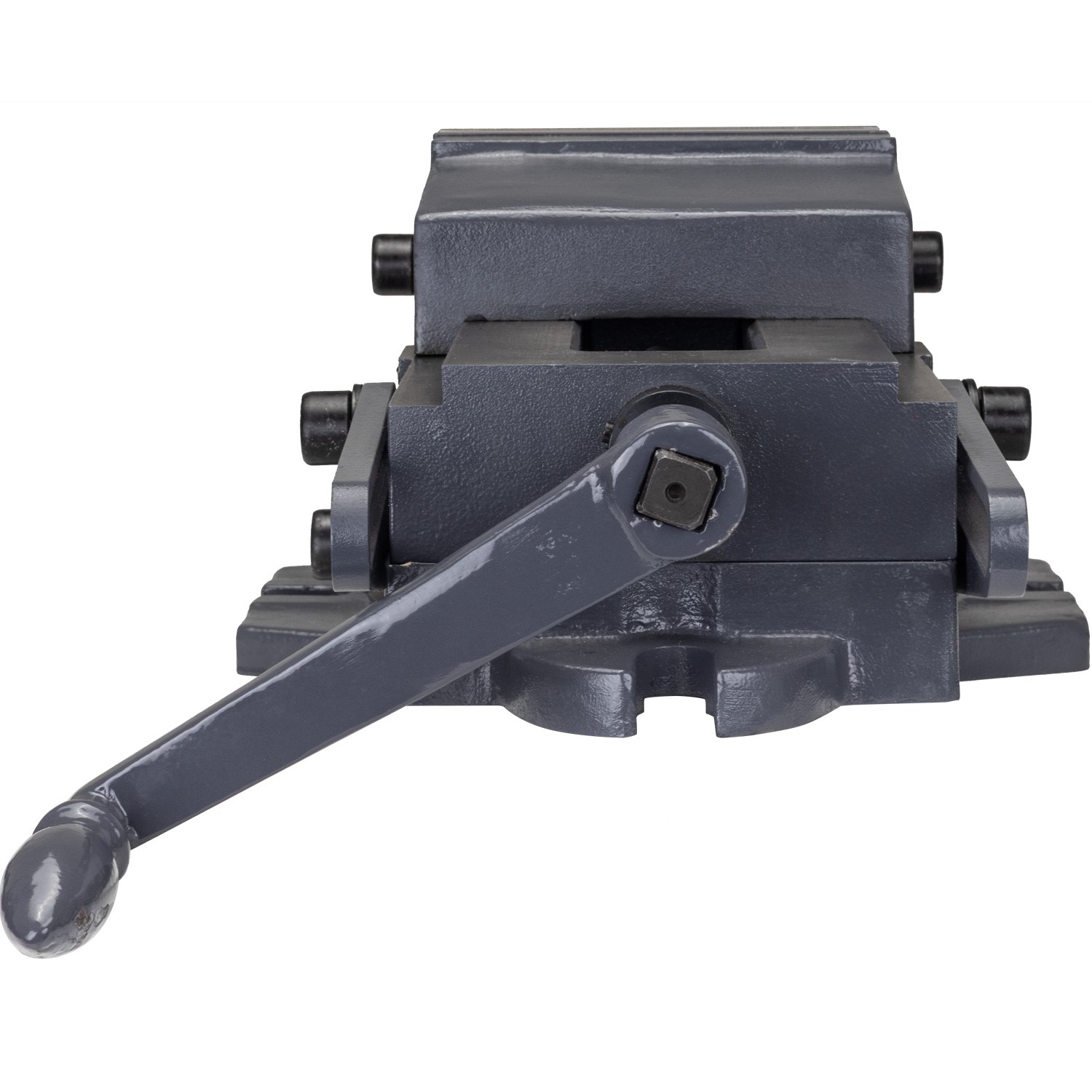

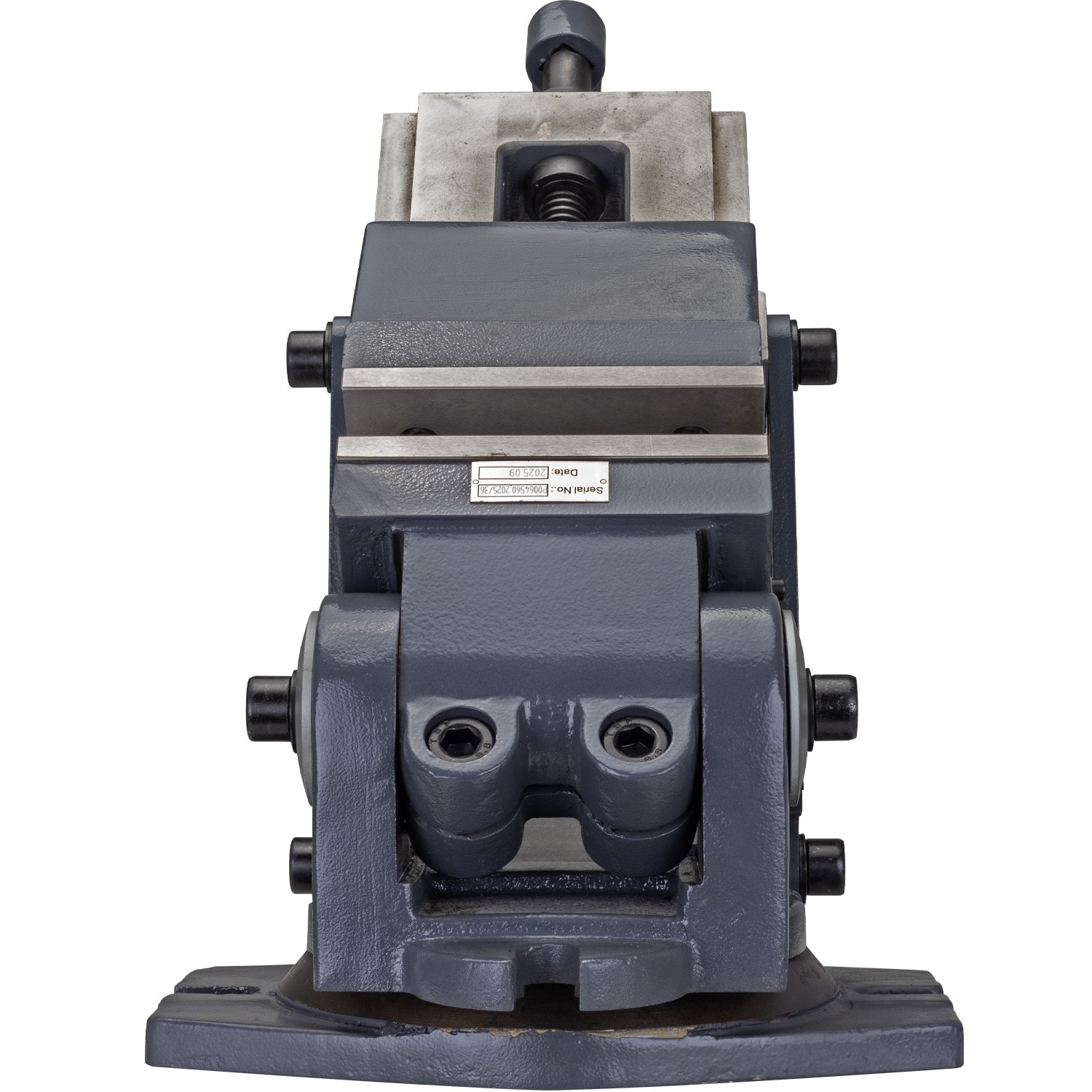

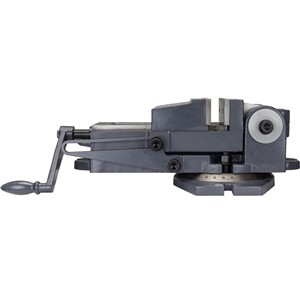

SIP 6" Swivel & Tilt Machine Vice

01727

The SIP 6" Swivel & Tilt Machine Vice enables horizontal rotation and vertical inclination for precise multi-angle machining. This helps reduce set-up time and eliminates need for additional fixtures while ensuring accuracy in complex drilling, plus improved tool access.

With a swivel base that allows the operator to rotate workpieces from 0° to 360° without unclamping, and a 0° to 45° tilting mechanism for additional flexibility when machining at an angle, this vice offers maximum versatility in professional metalworking and fabrication.

Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

KEY FEATURES

Heavy-duty 6" machine vice with grey cast iron body and hardened tool steel jaws
Designed for maximum versatility in horizontal rotation and vertical inclination
Swivel base allows 0° to 360° rotation without unclamping the workpiece
Tilting design offers multi-angle machining ability to reduce set-up time needed
Angle gauges for precise set-up for accuracy in complex or repetitive machining
Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)

BUY NOW

Full Specification

Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

Applications & uses: Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling.

What's in the box?: 1x SIP 6" Swivel & Tilt Machine Vice.

Full Specification 2

HEAVY-DUTY 6" MACHINE VICE EASILY WITHSTANDS DEMANDING USE IN PROFESSIONAL METALWORK & FABRICATION WORKSHOPS

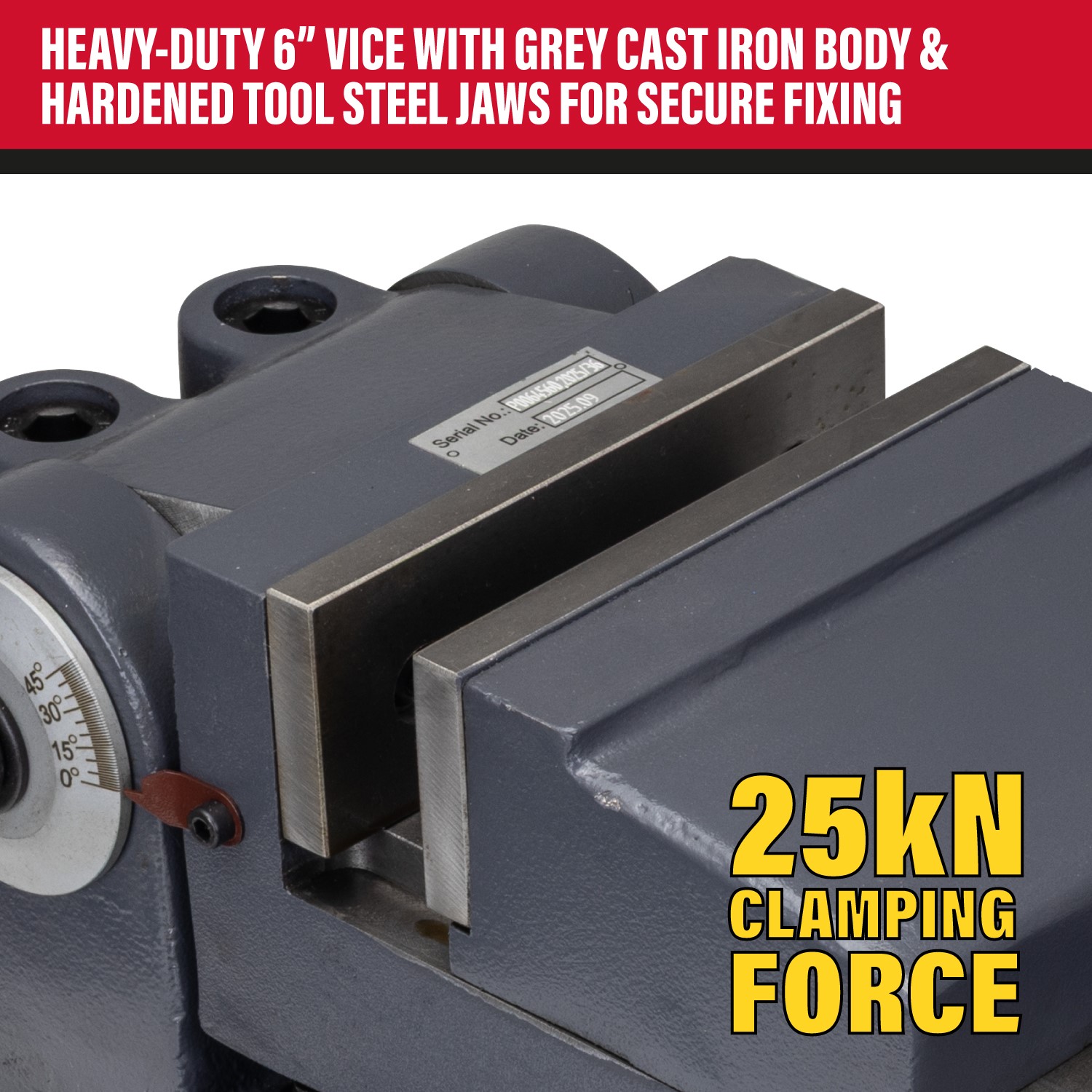

High-quality machine vice with 6" jaw opening and 25kN clamping force for secure fixings of workpieces in a variety of positions.
Built with a robust grey cast iron machine body and hardened tool steel jaws for outstanding durability and secure clamping.
The jaw is fixed to the vice body, allowing perpendicularity and parallelism within 0.05mm/100mm.

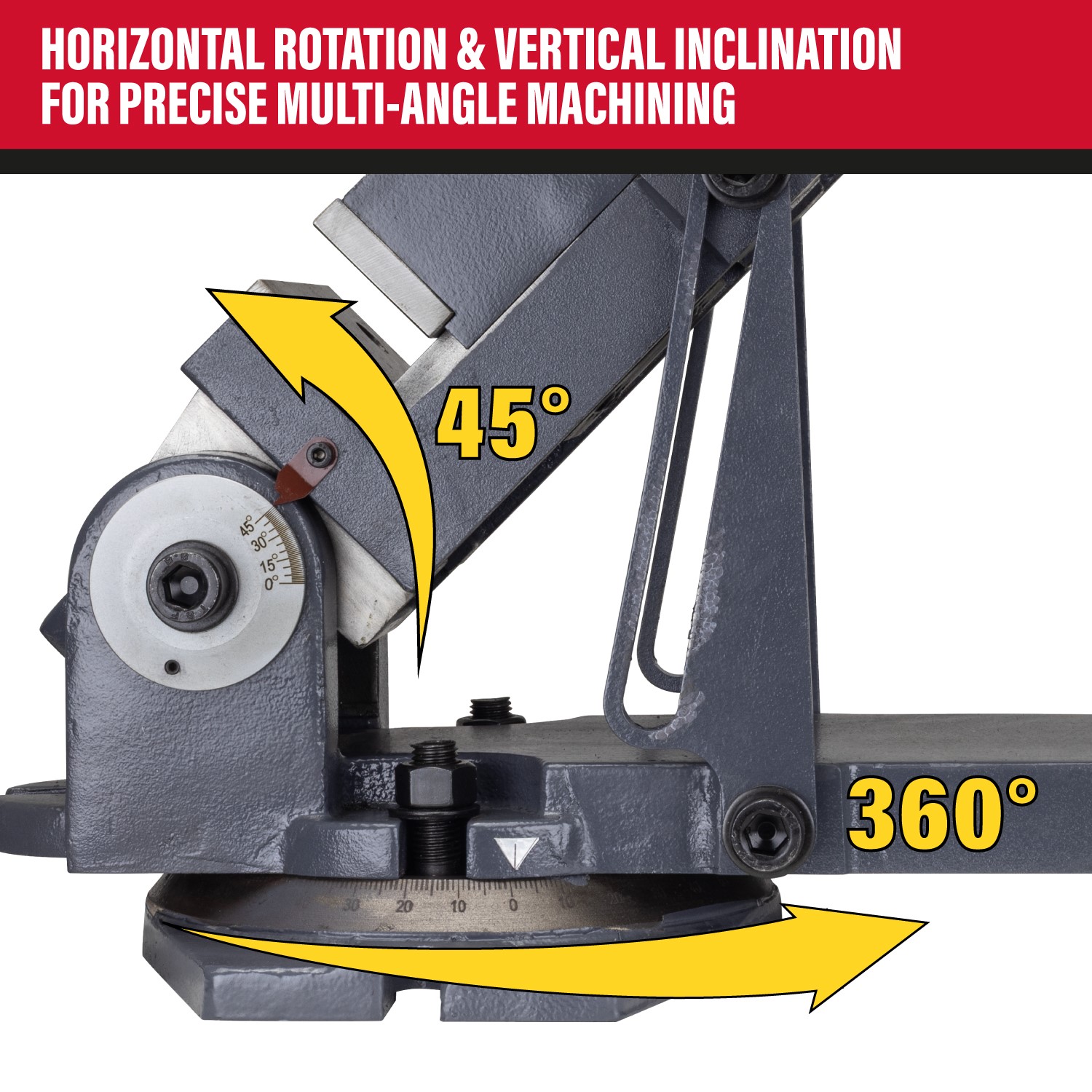

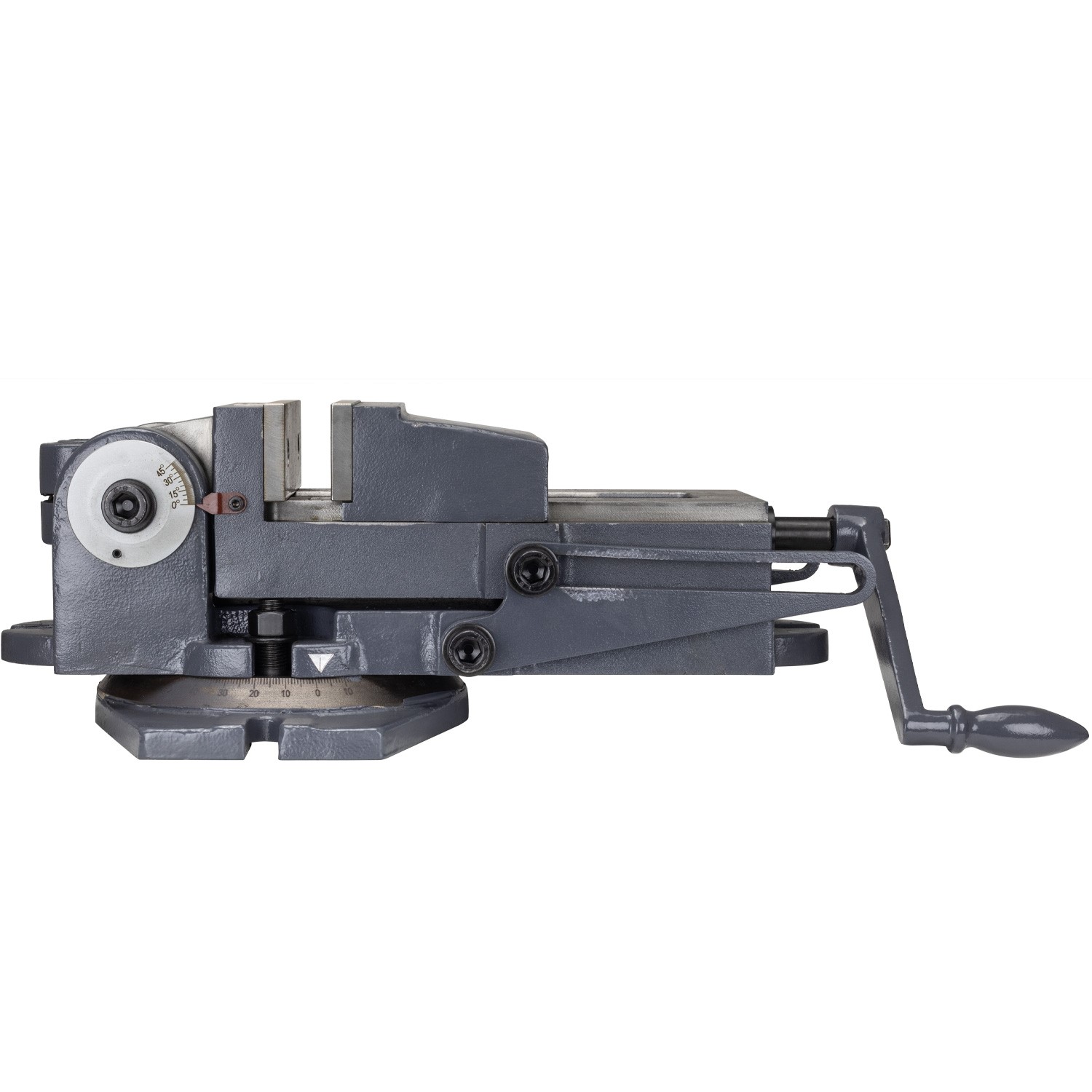

ROTATING SWIVEL BASE & VERSATILE TILTING SYSTEM FOR MAXIMUM FLEXIBILITY WHEN POSITIONING WORKPIECES

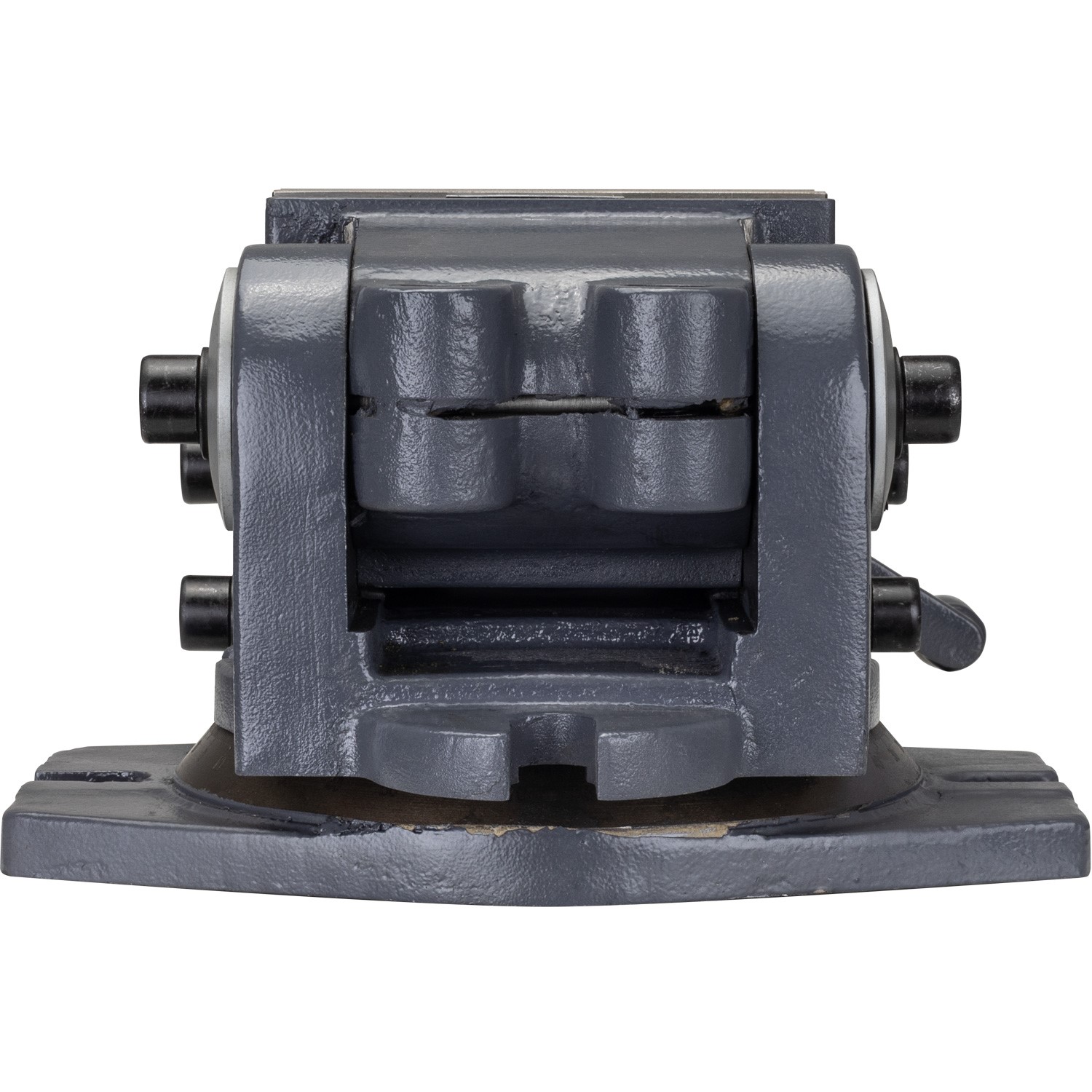

Mounted on a durable swivel base that allows unrestricted 0° to 360° rotation of a workpiece to the desired angle without need to unclamp it.

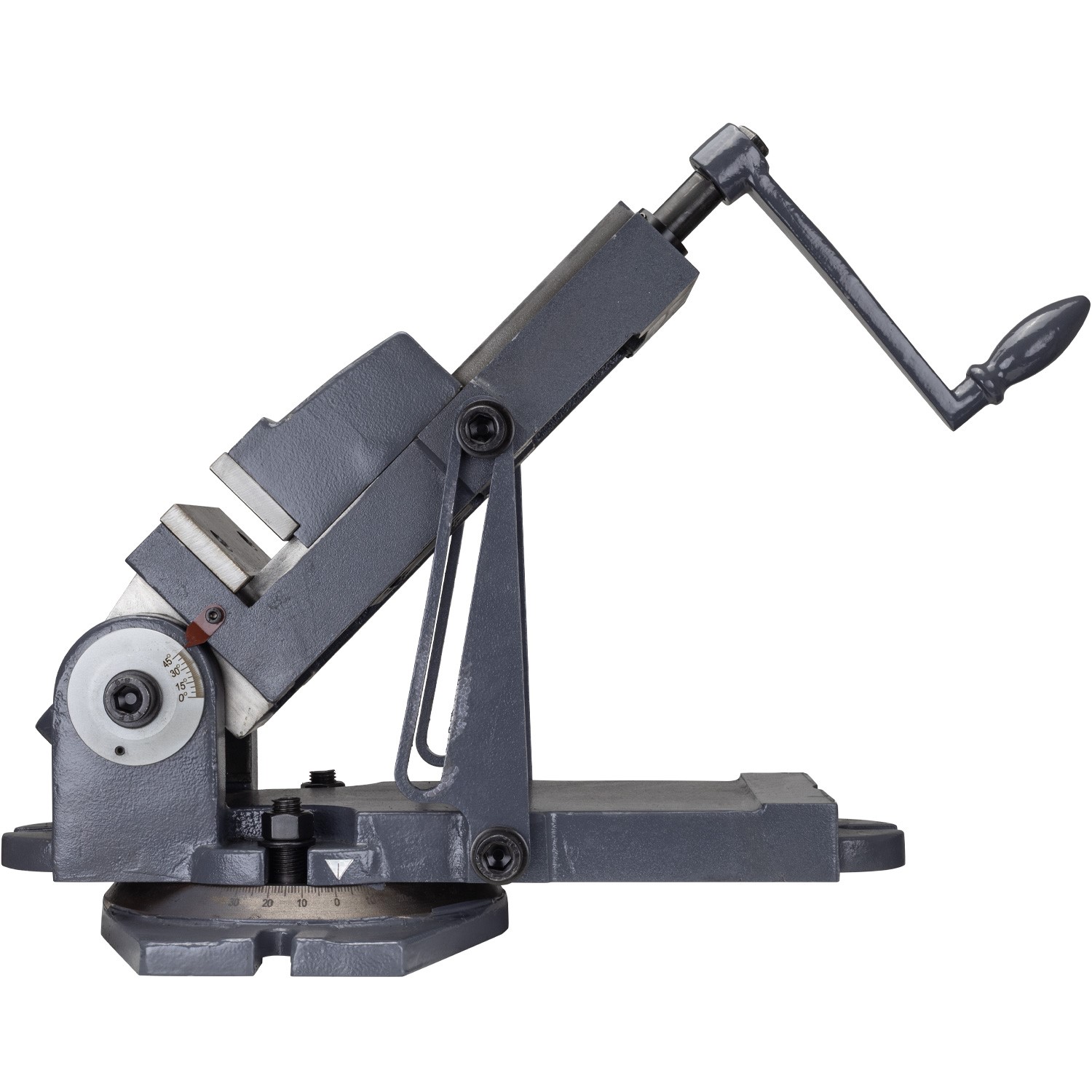

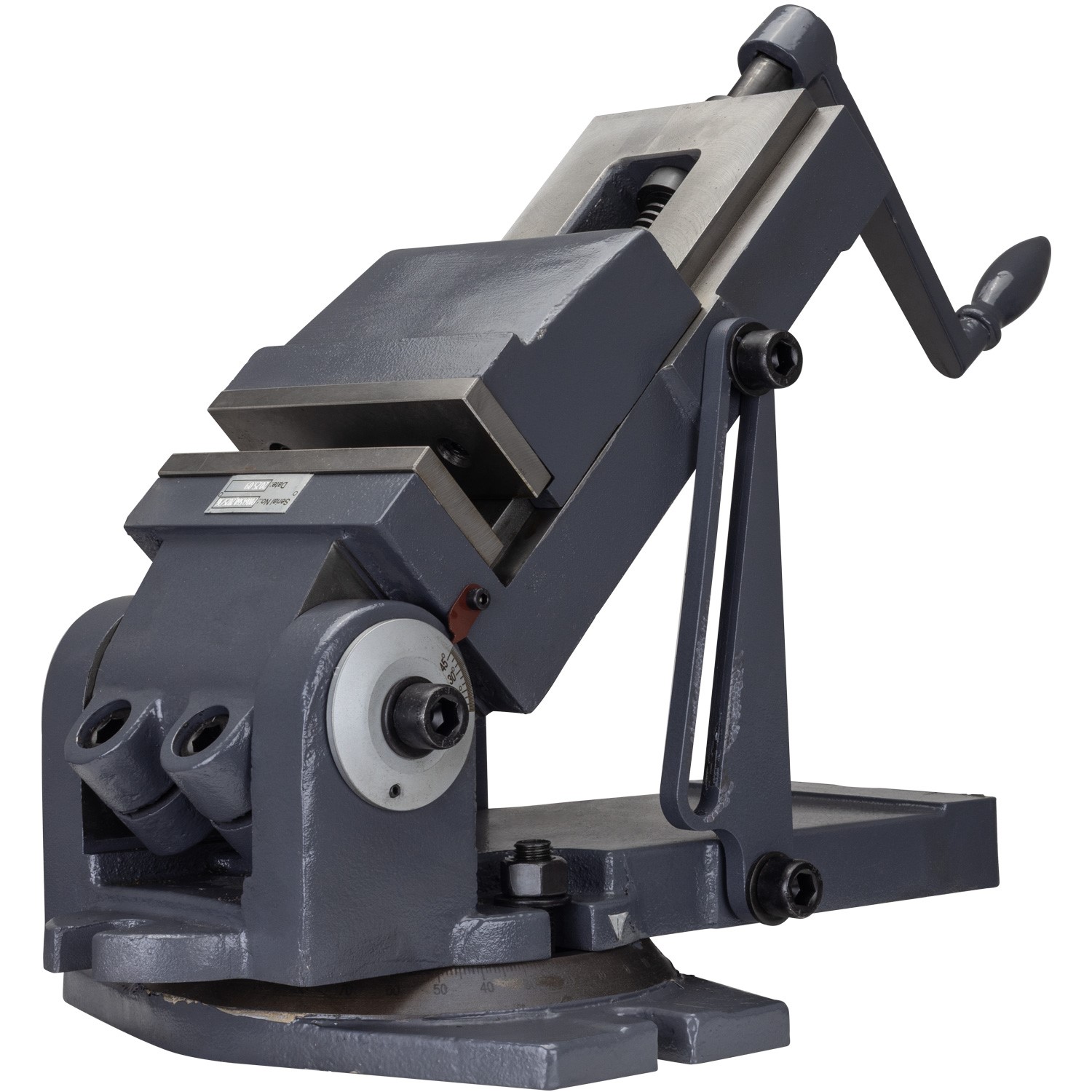

The integrated tilting system provides 0° to 45° vertical inclination of the workpiece for drilling applications that require machining at an angle.
These functions combined ensure high versatility and, because piece do not need to be unclamped, maintains accuracy during complex drilling.
Specific angles can be set using the separate angle gauges built into the swivel base and the tilting platform.

COMPATIBLE WITH THE COMPLETE SIP INDUSTRIAL FLOOR PILLAR DRILL RANGE

- 01719 SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
- 01720 SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
- 01721 SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill

Technical Information

ITEM NO.	01727
Jaw Width:	6" (152mm)
Jaw Opening:	6" (152mm)
Jaw Depth:	2" (51mm)
Clamping Force:	25kN
Vice Height:	7.25" (184mm)
Base Type:	Swivel and tilt
Base Size:	9" (229mm) x 11.5" (292mm)
Composition:	Grey cast iron (body), hardened tool steel (jaws)
Mounting Hole Size:	17mm
Accuracy / Parallelism:	0.05mm / 100mm
Net Weight:	52kg
Gross Weight:	53kg

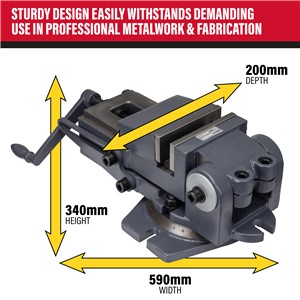

Product Dimensions:	340(H) x 590(W) x 200mm(D)
Packaged Dimensions:	260(H) x 560(W) x 210mm(D)
