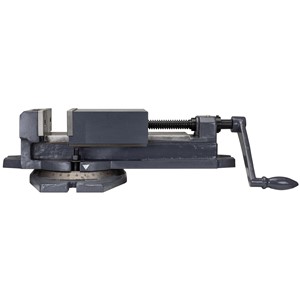

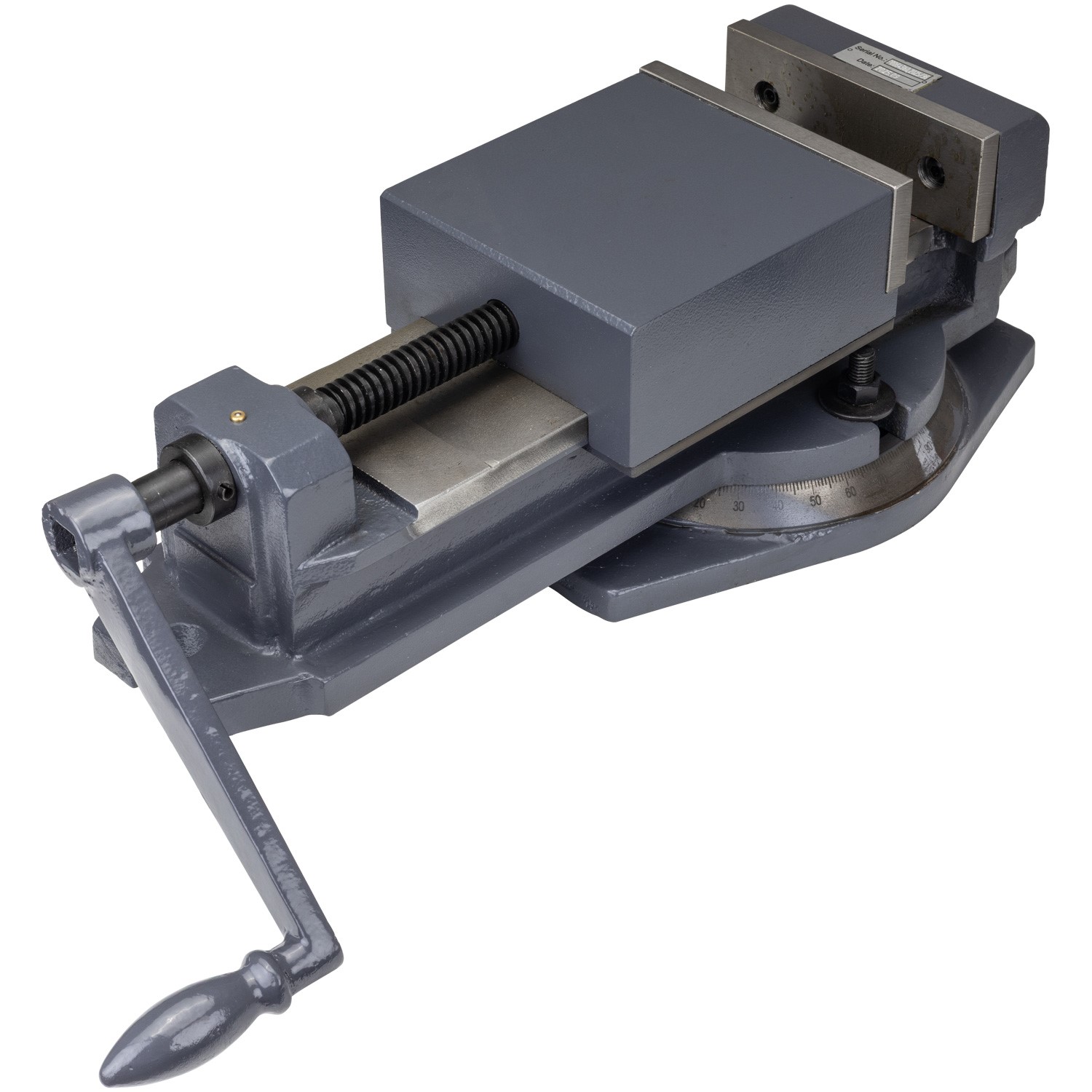

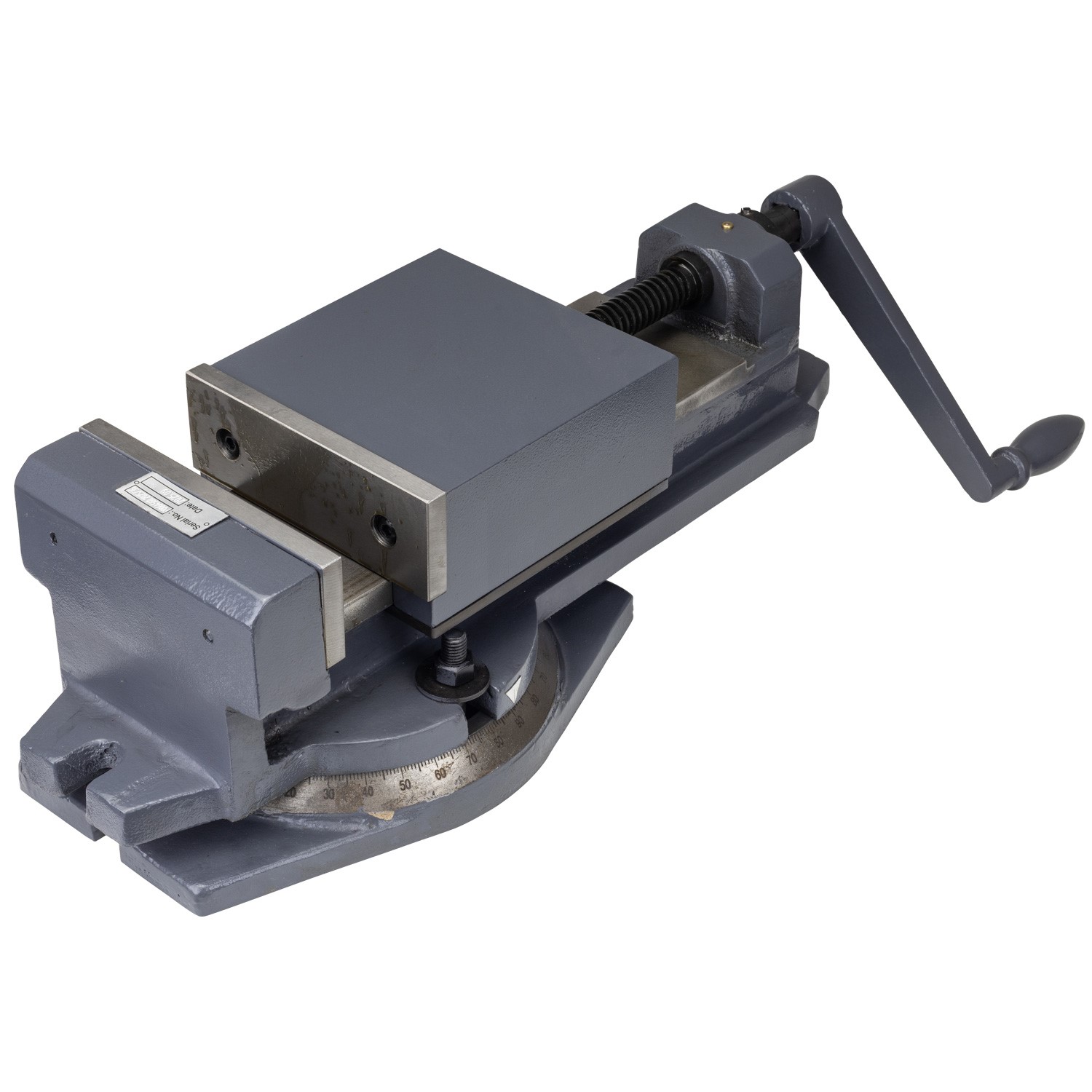

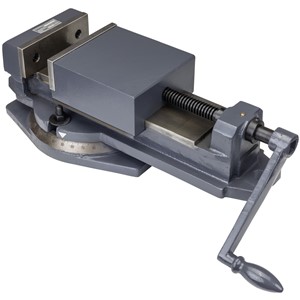

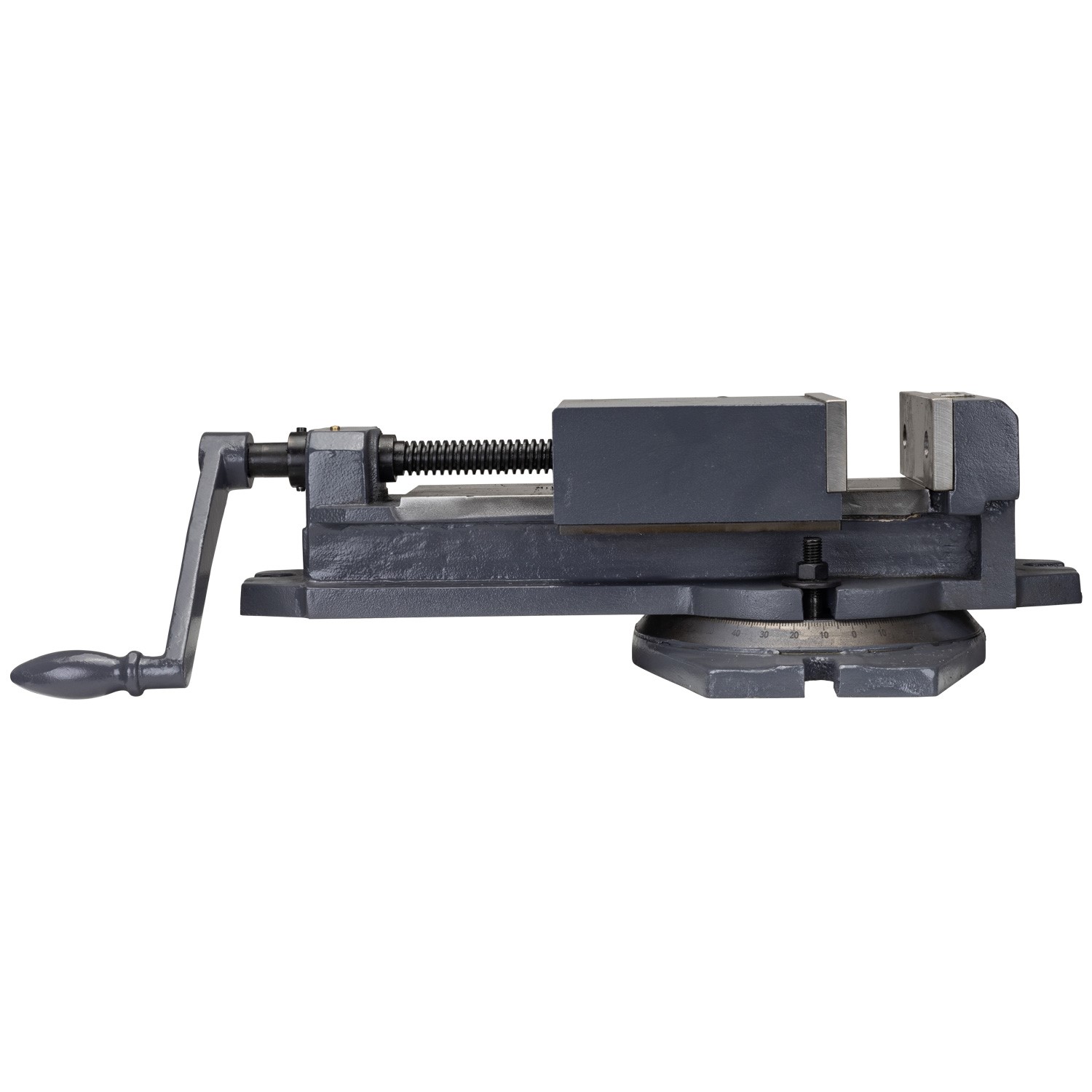

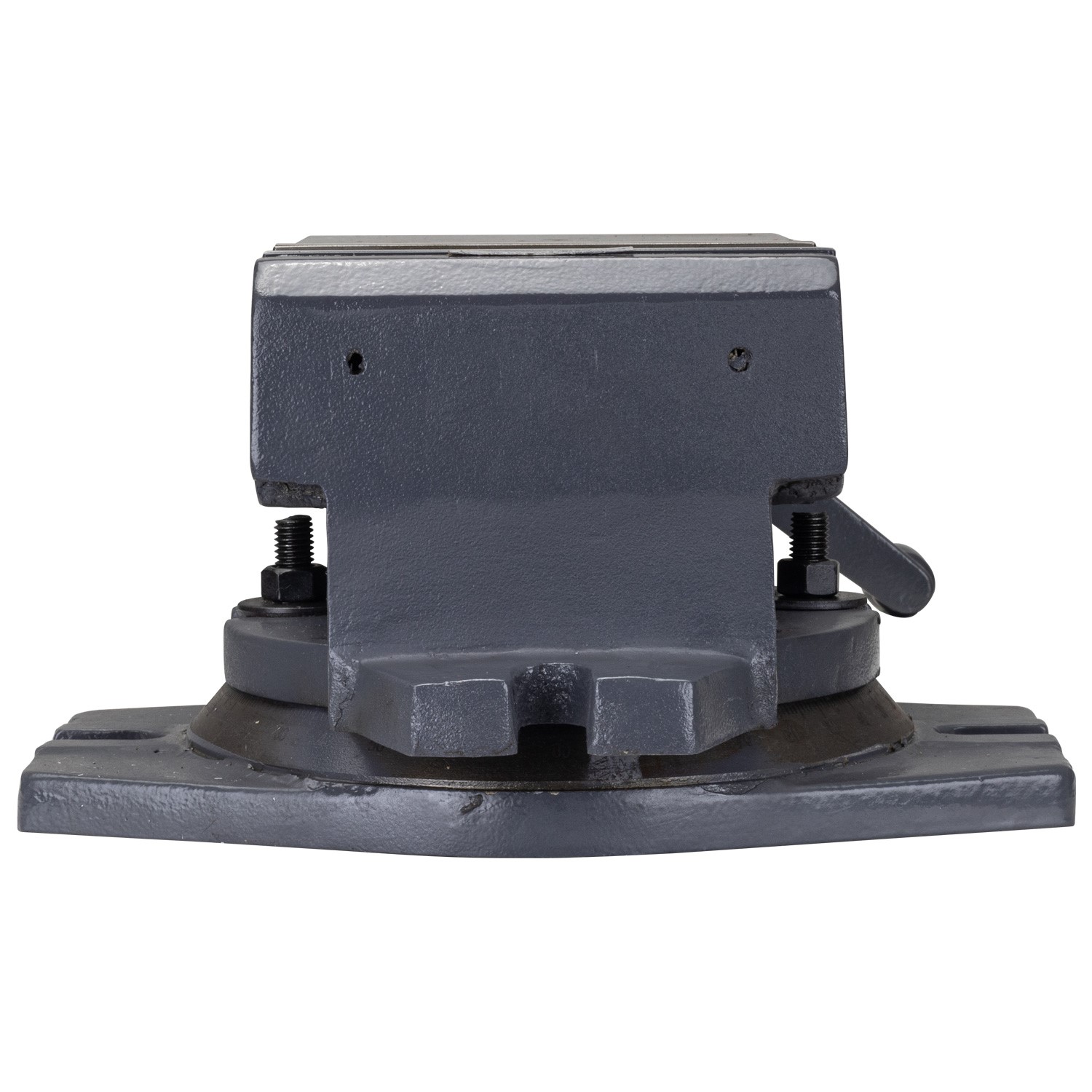

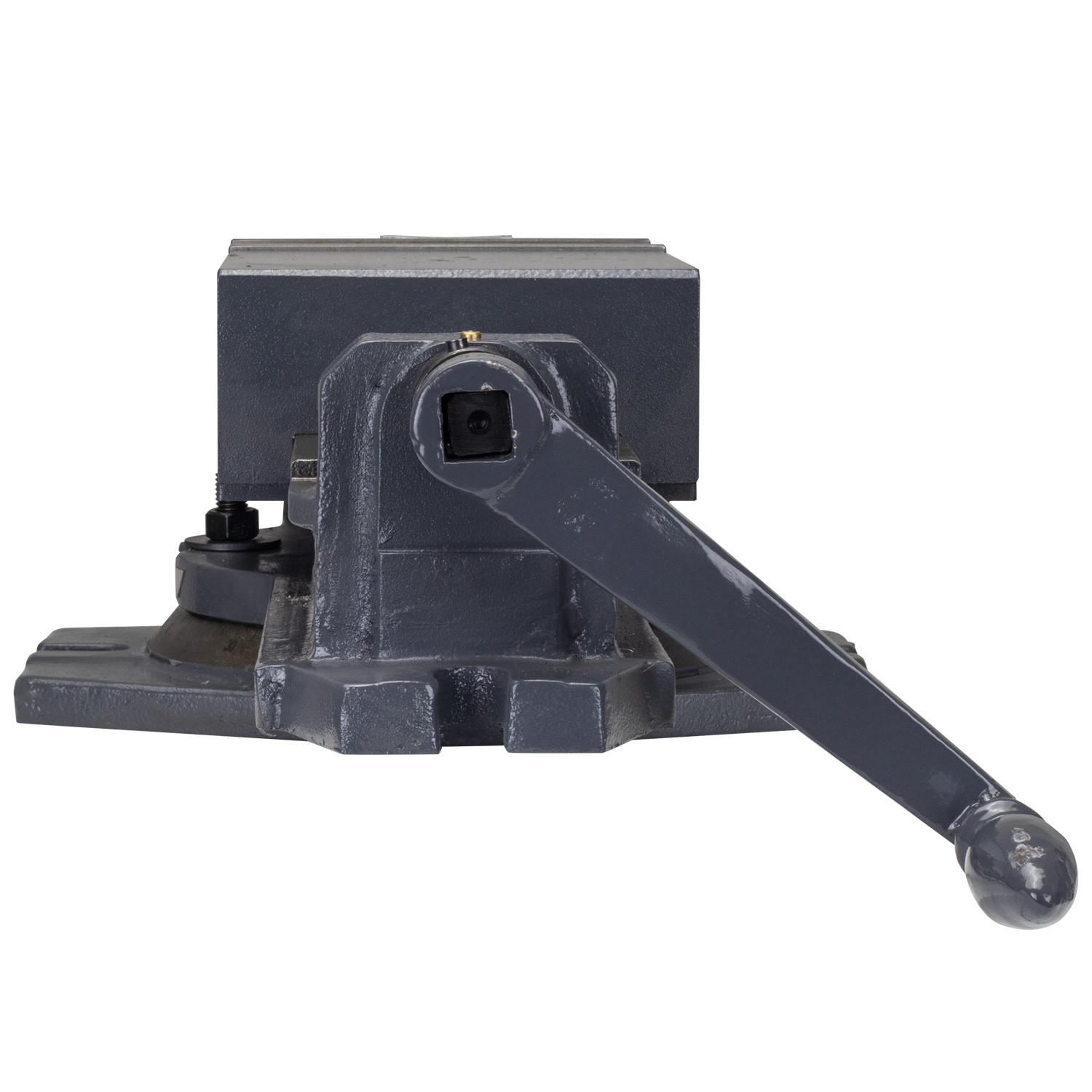

SIP 6" Swivel Machine Vice

01729

Click on image to enlarge

*These images are representative

SIP 6" Swivel Machine Vice

01729

The SIP 6" Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.

Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

KEY FEATURES

Heavy-duty 6" machine vice with grey cast iron body and hardened tool steel jaws
Swivel base allows 0° to 360° rotation without unclamping the workpiece
Adjustable design reduces set-up time, maintains accuracy and improves access
Angle gauge for precise set-up for accuracy in complex and repetitive machining
Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
Perfect for use in professional metalwork and fabrication workshops

BUY NOW

Full Specification

Applications & uses: Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling.

What's in the box?: 1x SIP 6" Swivel Machine Vice.

Full Specification 2

HEAVY-DUTY 6" MACHINE VICE EASILY WITHSTANDS DEMANDING USE IN PROFESSIONAL METALWORK & FABRICATION WORKSHOPS

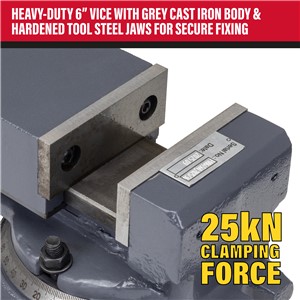

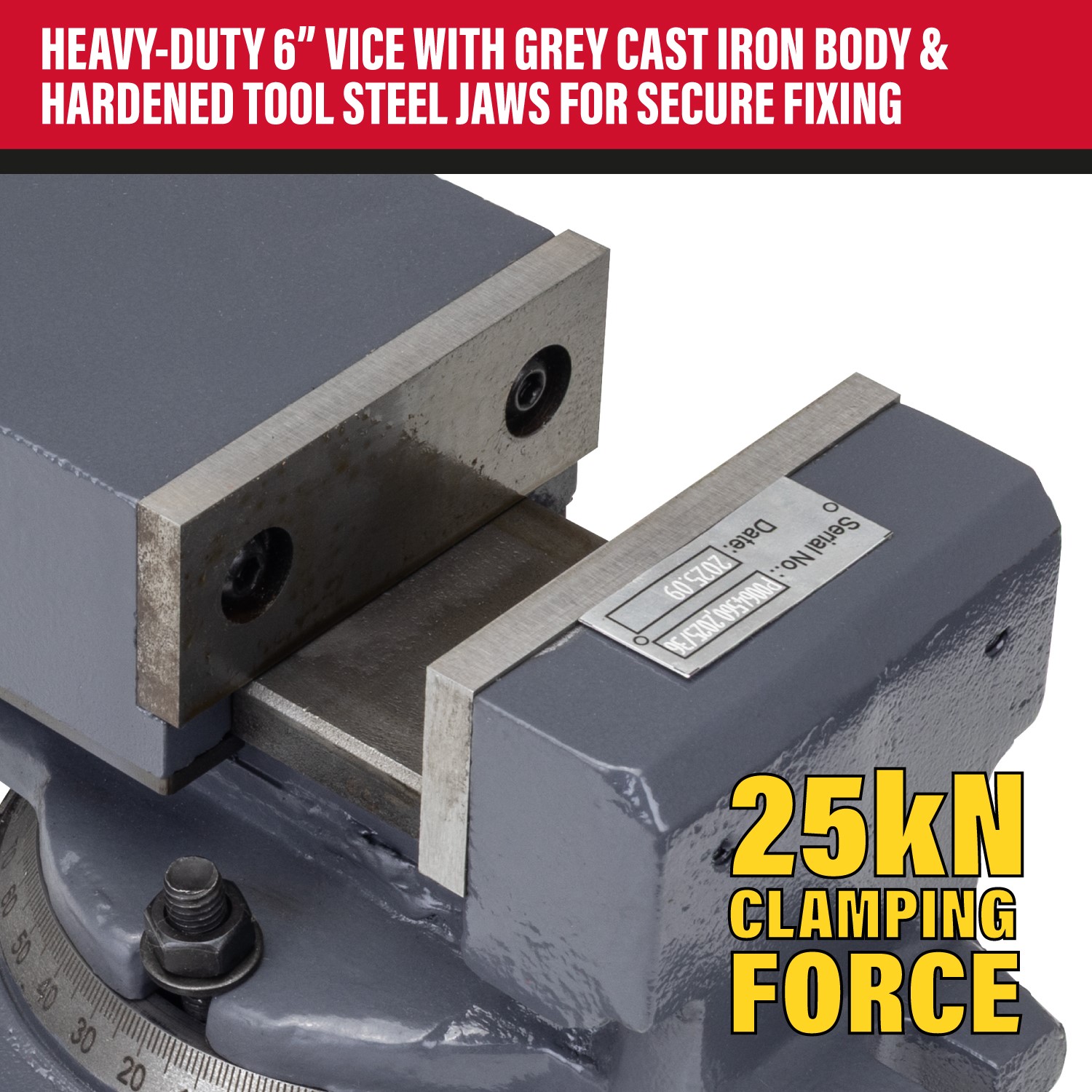

High-quality machine vice with 6" jaw opening and 25kN clamping force for secure fixing of workpieces in a variety of positions.
Built with a robust grey cast iron machine vice body and hardened tool steel jaws for outstanding durability and secure clamping.
The jaw is fixed to the vice body, allowing perpendicularity and parallelism within 0.05mm/100mm.

ROTATING SWIVEL BASE FOR INCREASED FLEXIBILITY WHEN POSITIONING WORKPIECES

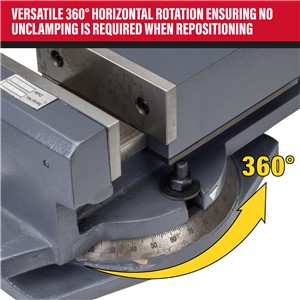

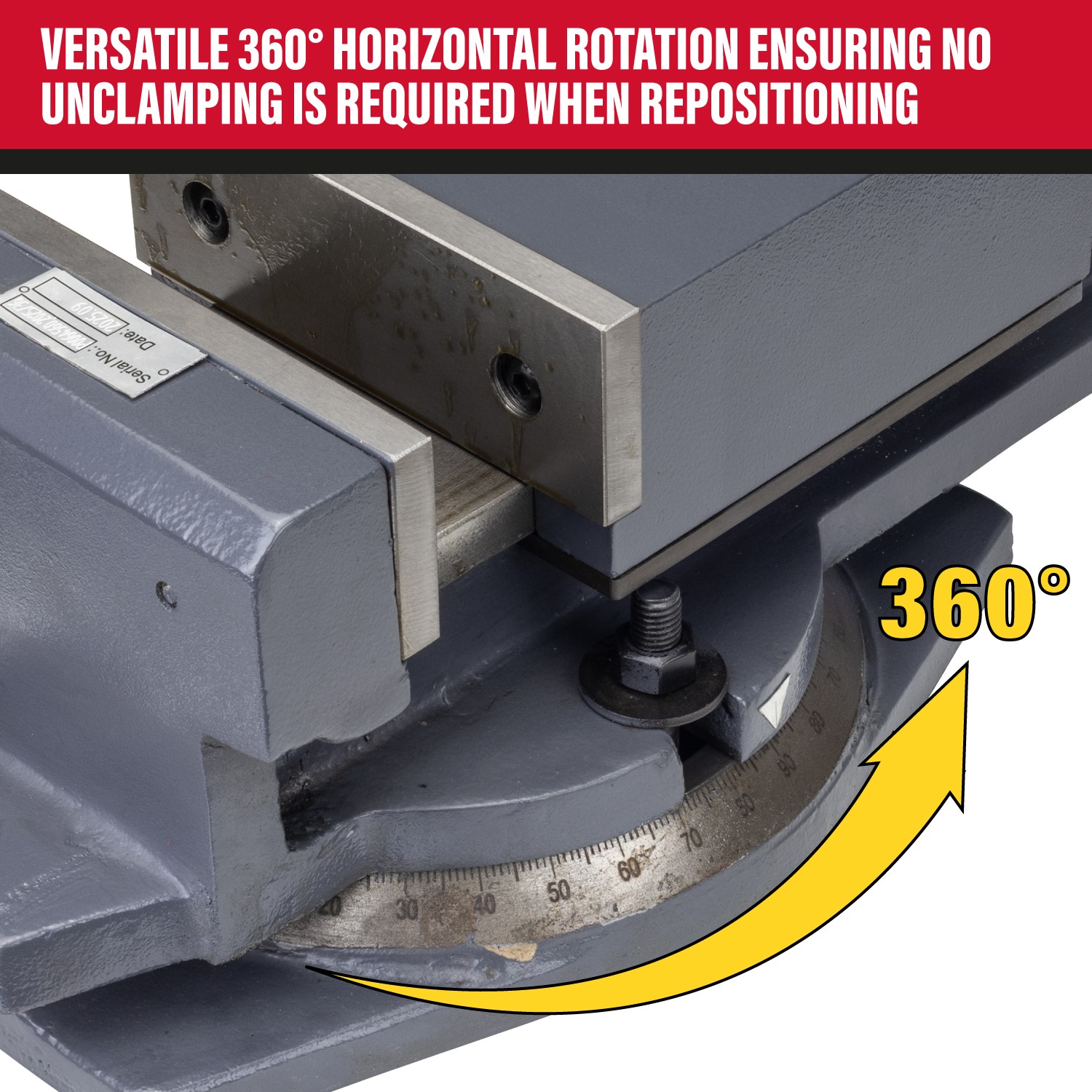

Mounted on a durable swivel base that allows unrestricted 0° to 360° rotation of a workpiece to the desired angle without need to unclamp it.
This function ensures high versatility and, because pieces do not need to be unclamped, maintains accuracy during complex drilling.
Specific angles can be set using the angle gauge built into the swivel base.

COMPATIBLE WITH THE COMPLETE SIP INDUSTRIAL FLOOR PILLAR DRILL RANGE

- 01719 SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
- 01720 SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
- 01721 SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill

Technical Information

ITEM NO.	01729
Jaw Width:	6" (152mm)
Jaw Opening:	6" (152mm)
Jaw Depth:	2" (51mm)
Clamping Force:	25kN
Vice Height:	6" (152mm)
Base Type:	Swivel
Base Size:	11.5" (292mm) x 8.4" (214mm)
Composition:	Grey cast iron (body), hardened tool steel (jaws)
Mounting Hole Size:	18mm
Accuracy / Parallelism:	0.05mm / 100mm
Net Weight:	40kg
Gross Weight:	41kg

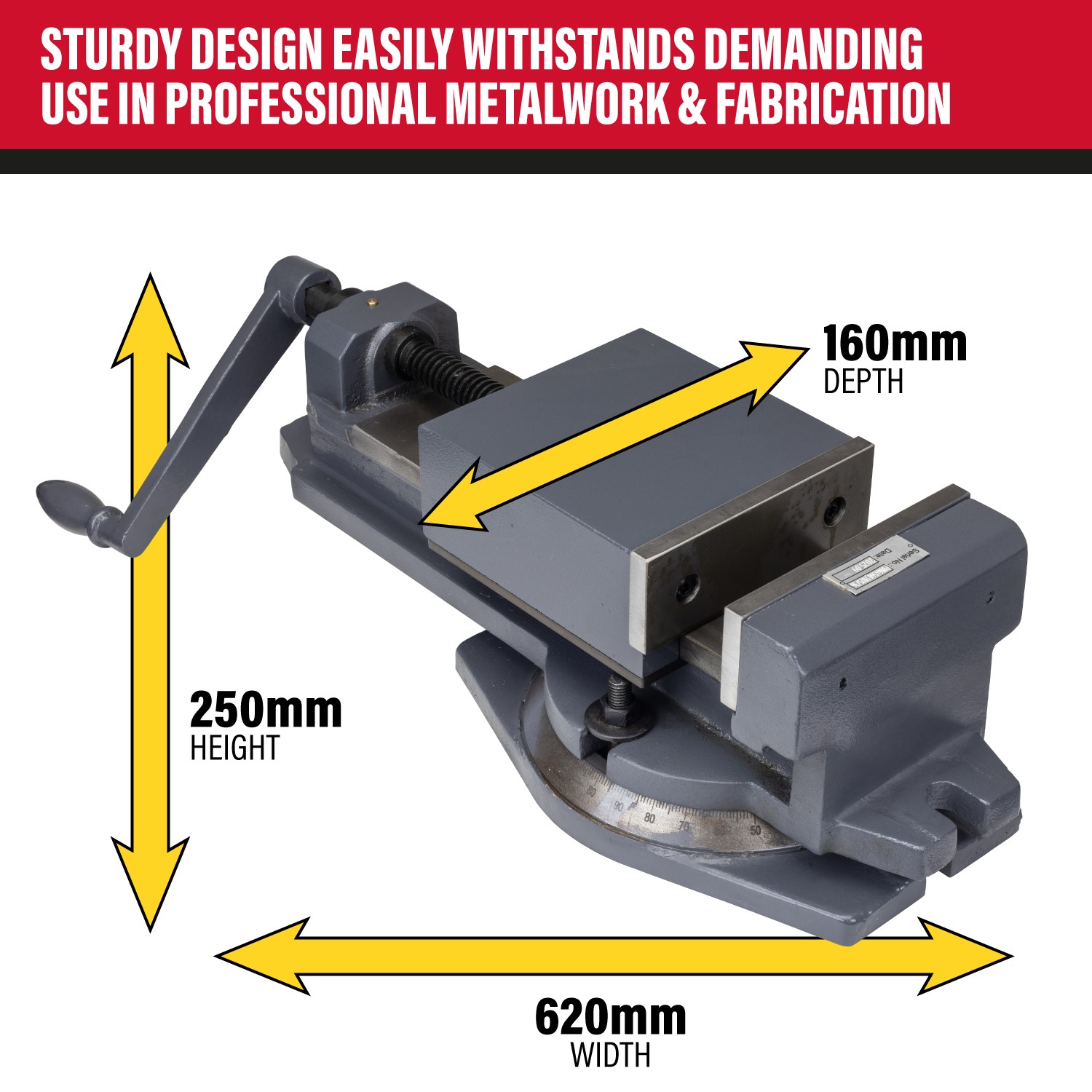

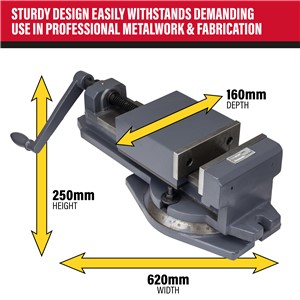

Product Dimensions:	250(H) x 620(W) x 160mm(D)
Packaged Dimensions:	260(H) x 440(W) x 220mm(D)
