SIP 5.5" Quick Lock Machine Vice

01730

Click on image to enlarge

*These images are representative

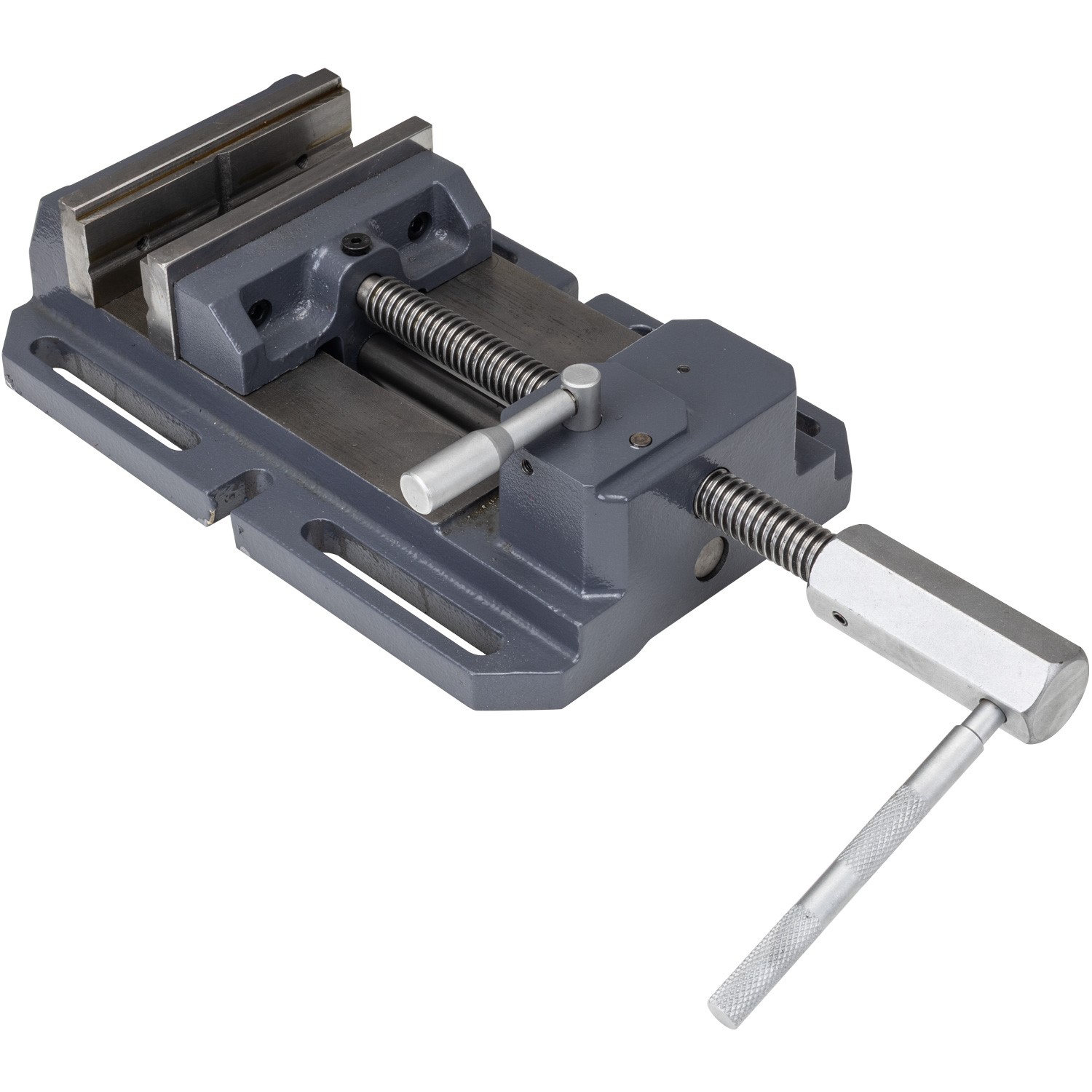

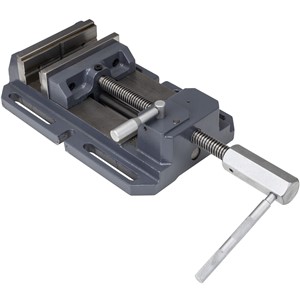

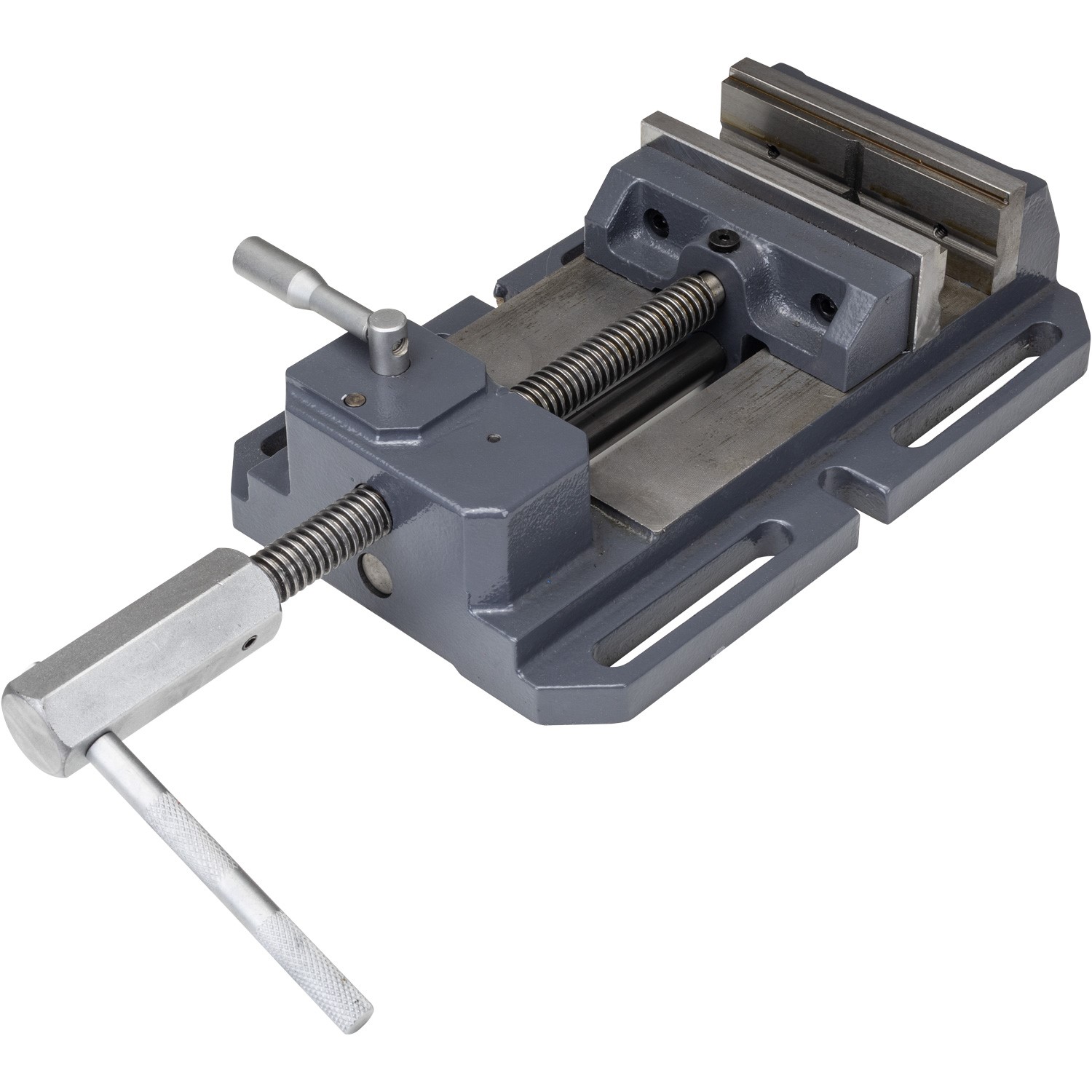

SIP 5.5" Quick Lock Machine Vice

01730

The SIP 5.5" Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication.

It easily slides into position against the workpiece to boost efficiency by reducing set-up time required when machining or during changeovers. The slotted base helps to maintain drilling accuracy and safety, and can be secured to the drill press table for added stability.

Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

KEY FEATURES

Heavy-duty 5.5" machine vice with grey cast iron body and tempered steel jaws
Speedy Quick Lock clamping helps reduce set-up time and maintains accuracy
Boosts efficiency for set-up and changeover in busy production environments
Slotted base allows secure fixing to the drill press table for added stability
Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
Perfect for use in professional metalwork and fabrication workshops

BUY NOW

Full Specification

The SIP 5.5" Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication.

Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

Applications & uses: Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: small castings, brackets and flanges. Suitable for pillar drill drilling, milling, grinding and light to medium-duty work.

What's in the box?: 1x SIP 5.5" Quick Lock Machine Vice.

Full Specification 2

HEAVY-DUTY 5.5" MACHINE VICE EASILY WITHSTANDS DEMANDING USE IN PROFESSIONAL METALWORK & FABRICATION WORKSHOPS

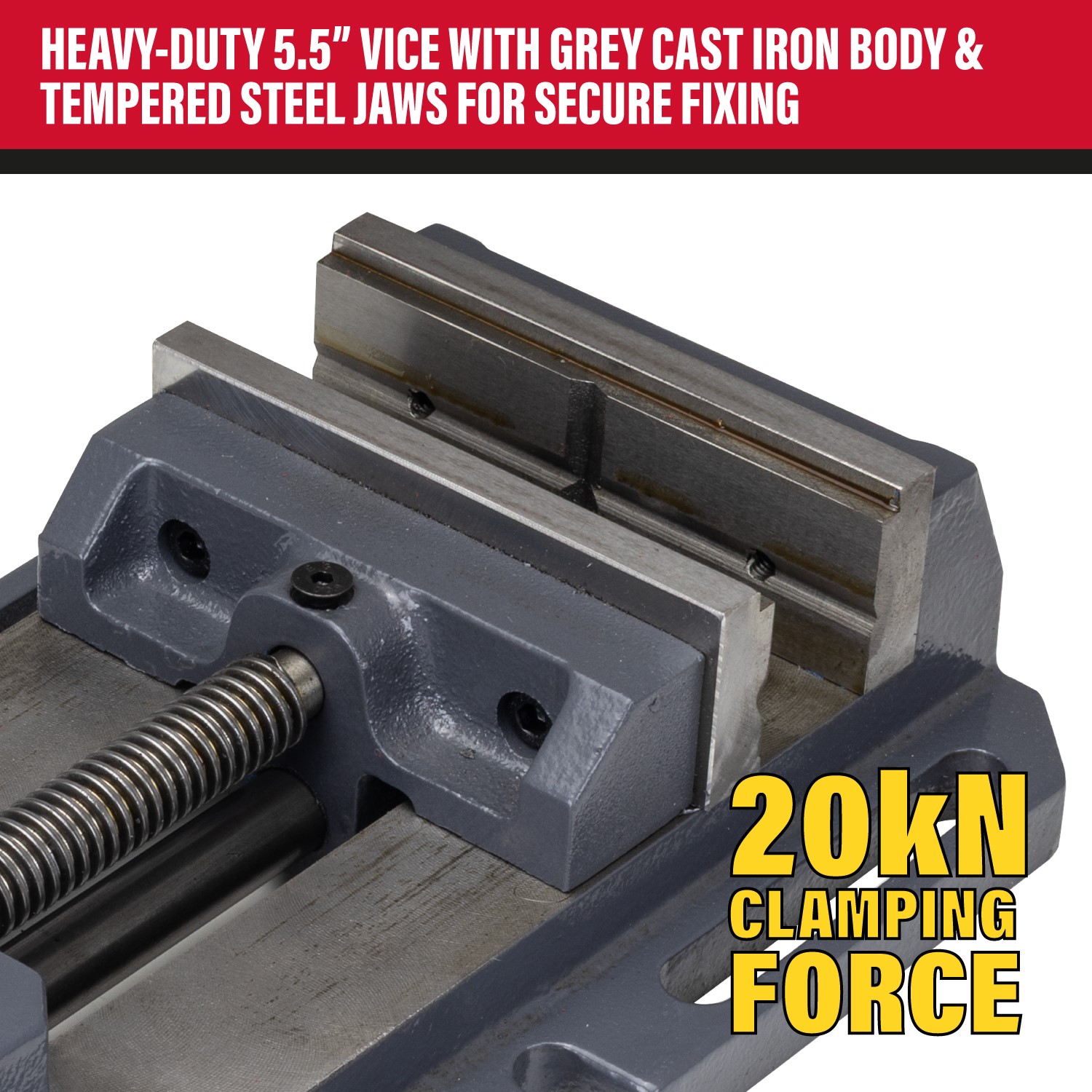

High-quality machine vice with 5.5" jaw opening and 20kN clamping force to secure fixing of workpieces in a variety of positions.

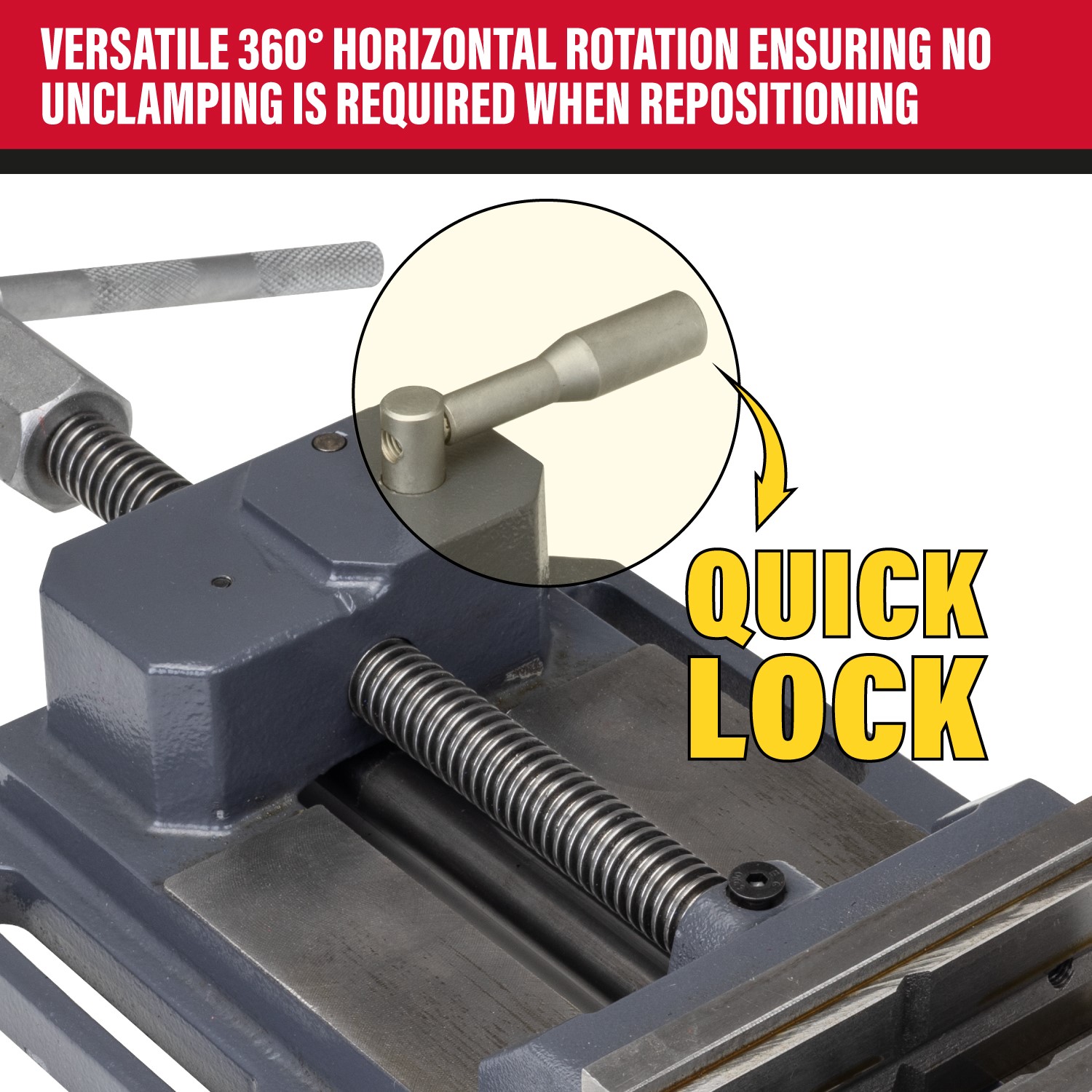

Quick Lock functionality offers speedy clamping and unclamping that allows the vice jaw to be quickly slid into position against the workpiece.
Built with a robust grey cast iron machine vice body, plus quenched and tempered structural steel jaws for outstanding durability and secure clamping.
The jaw is fixed to the vice body, allowing perpendicularity and parallelism within 0.05mm/100mm.

COMPATIBLE WITH THE COMPLETE SIP INDUSTRIAL FLOOR PILLAR DRILL RANGE

- 01719 SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
- 01720 SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
- 01721 SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill

Technical Information

ITEM NO.	01730
Jaw Width:	5.5" (140mm)
Jaw Opening:	5.5" (140mm)
Jaw Depth:	2" (51mm)
Clamping Force:	20kN
Vice Height:	3.19" (81mm)
Base Type:	Fixed
Base Size:	17" (430mm) x 9.5" (240mm)
Composition:	Grey cast iron (body), quenched/tempered structural steel (jaws)
Mounting Hole Size:	14mm
Accuracy / Parallelism:	0.05mm / 100mm
Net Weight:	12kg
Gross Weight:	13kg

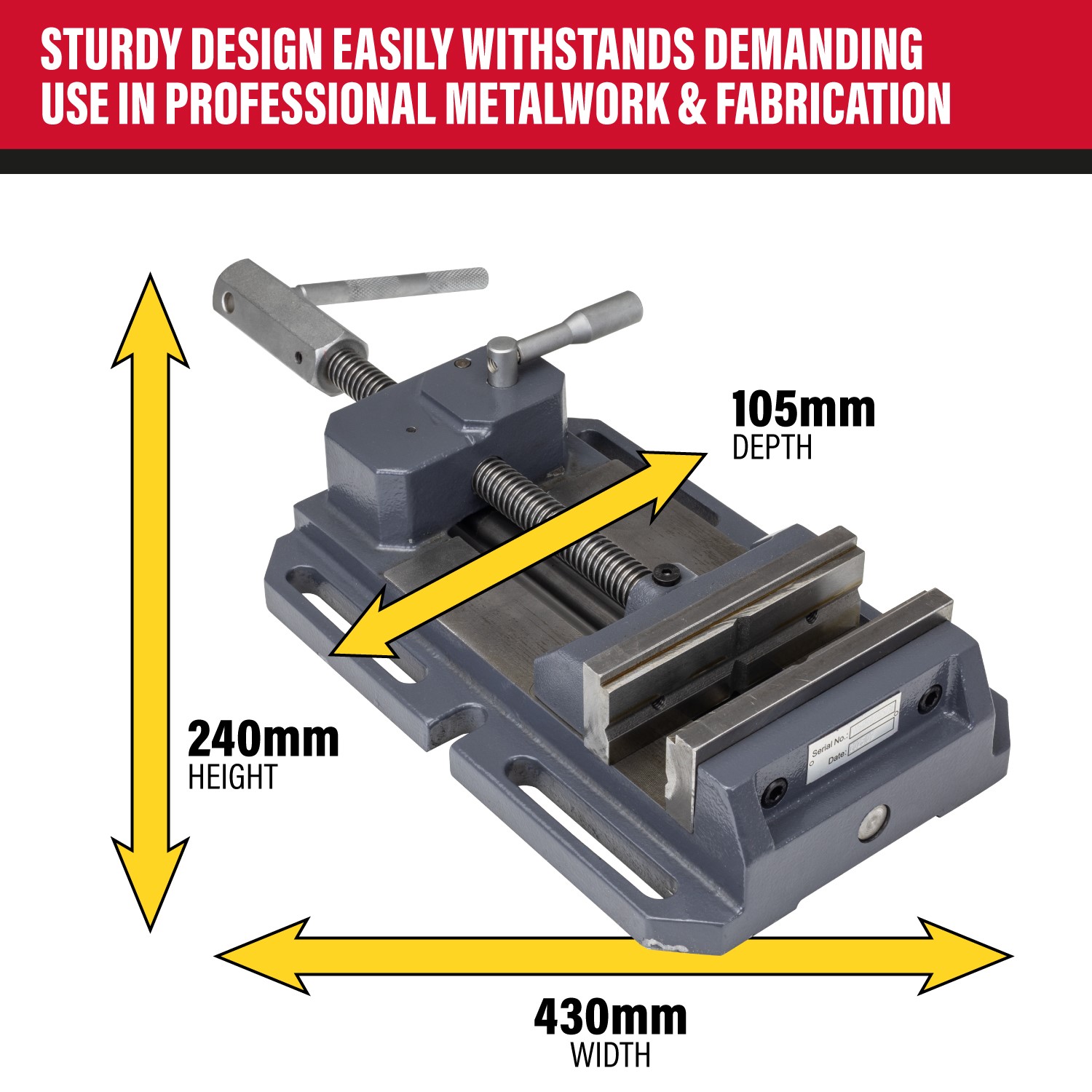

Product Dimensions:	240(H) x 430(W) x 105mm(D)
Packaged Dimensions:	260(H) x 480(W) x 140mm(D)
