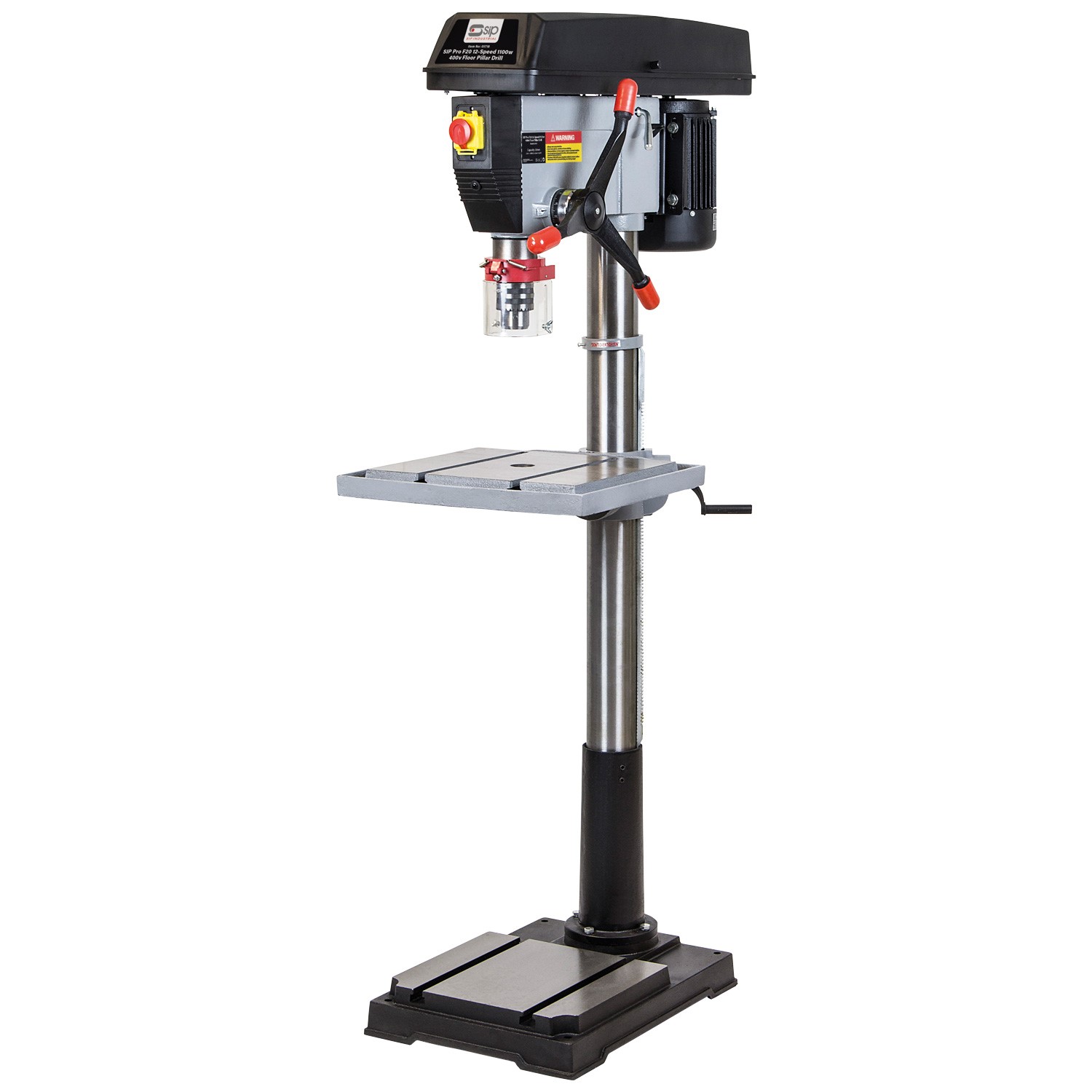

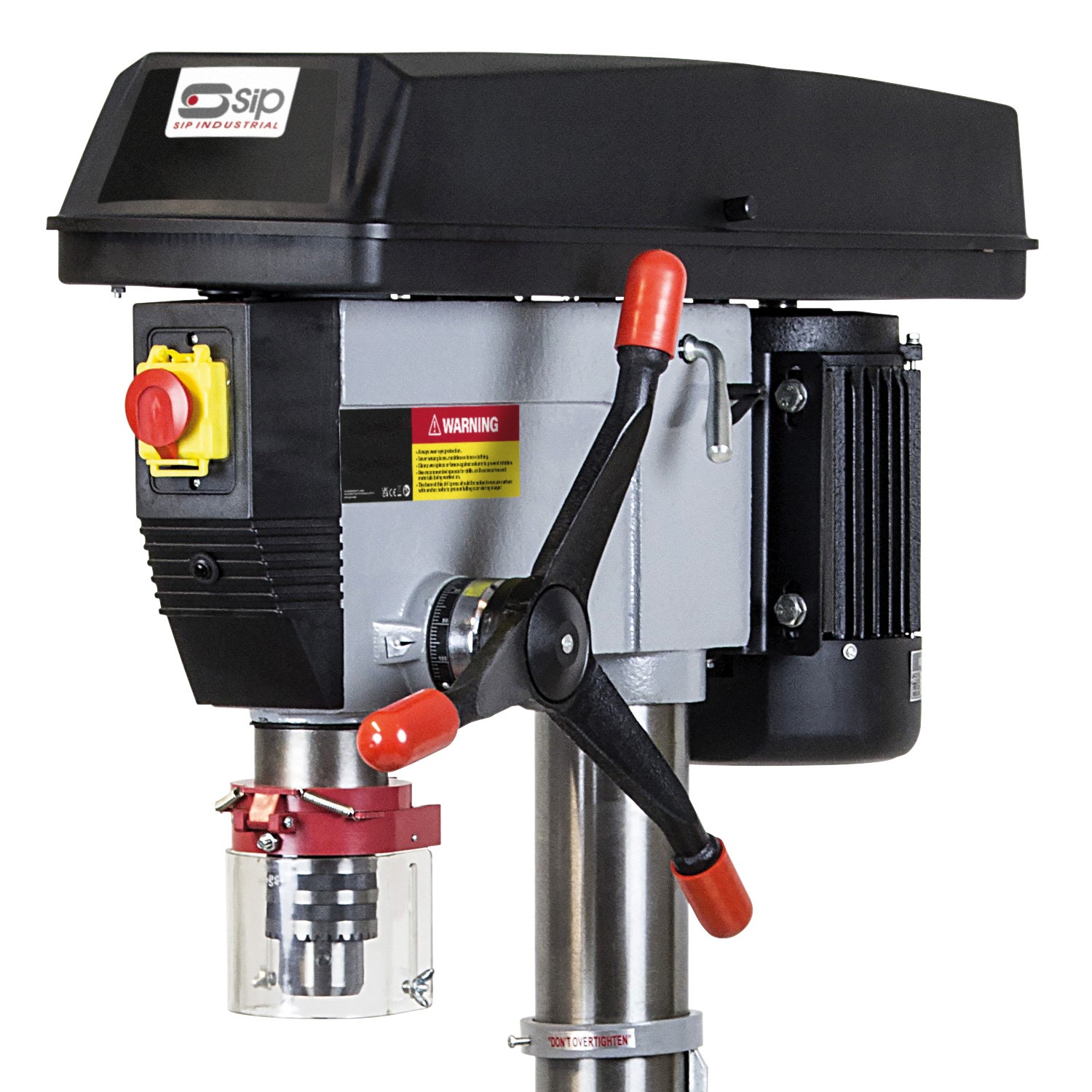

SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill

01718

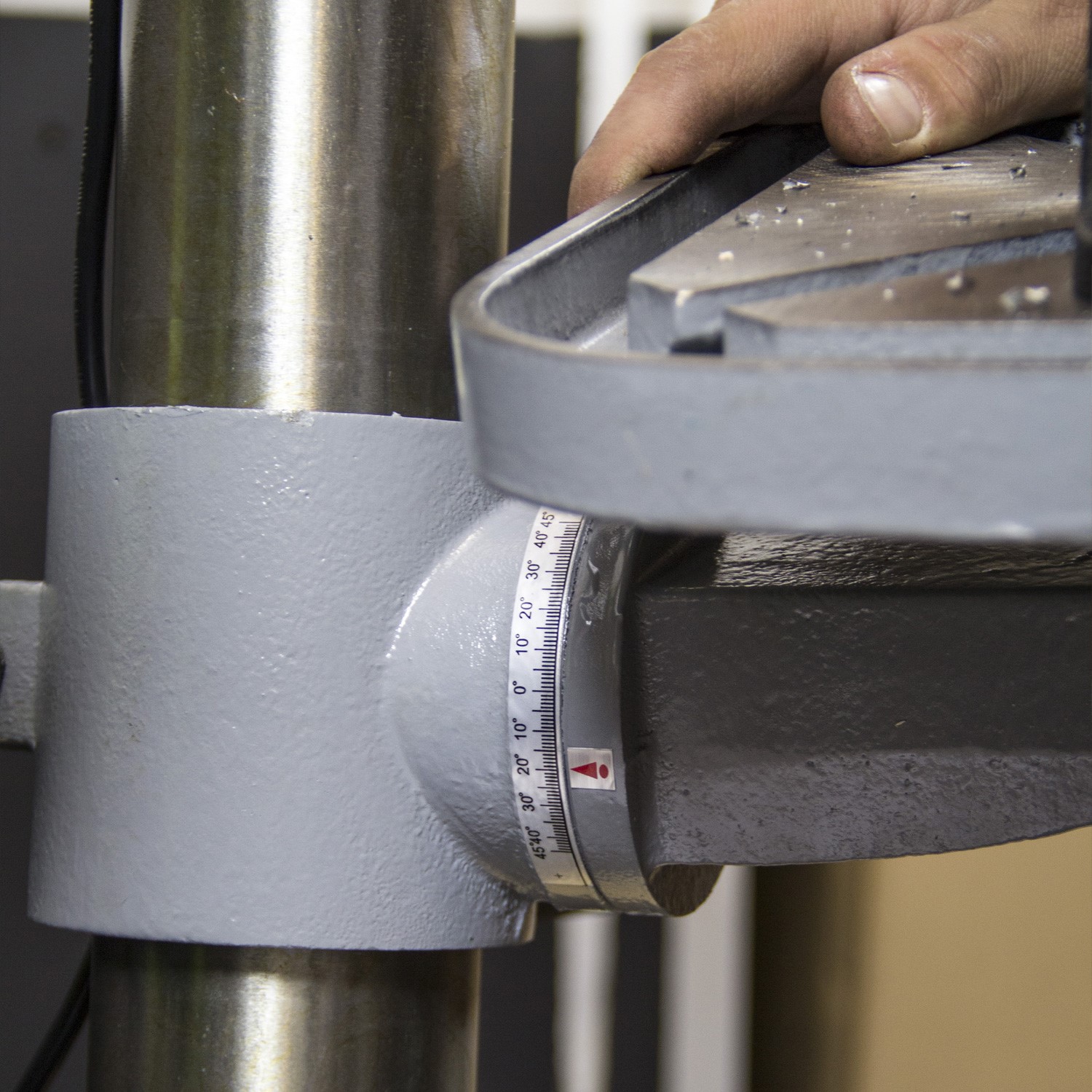

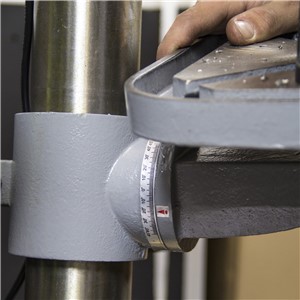

The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned to enable accurate drilling.

Plus, it's MT4 fitting allows for a larger drilling capacity.

KEY FEATURES

12 spindle speeds powered by a 1100w motor from a 400v 3-phase supply
Supports a variety of drilling applications
High-power brushless induction motor
Fitted with drilling depth stop
Adjustable drill table for greater accuracy
Safety interlock switch for safe motor belt adjustment

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT4 fitting allows for a larger drilling capacity.

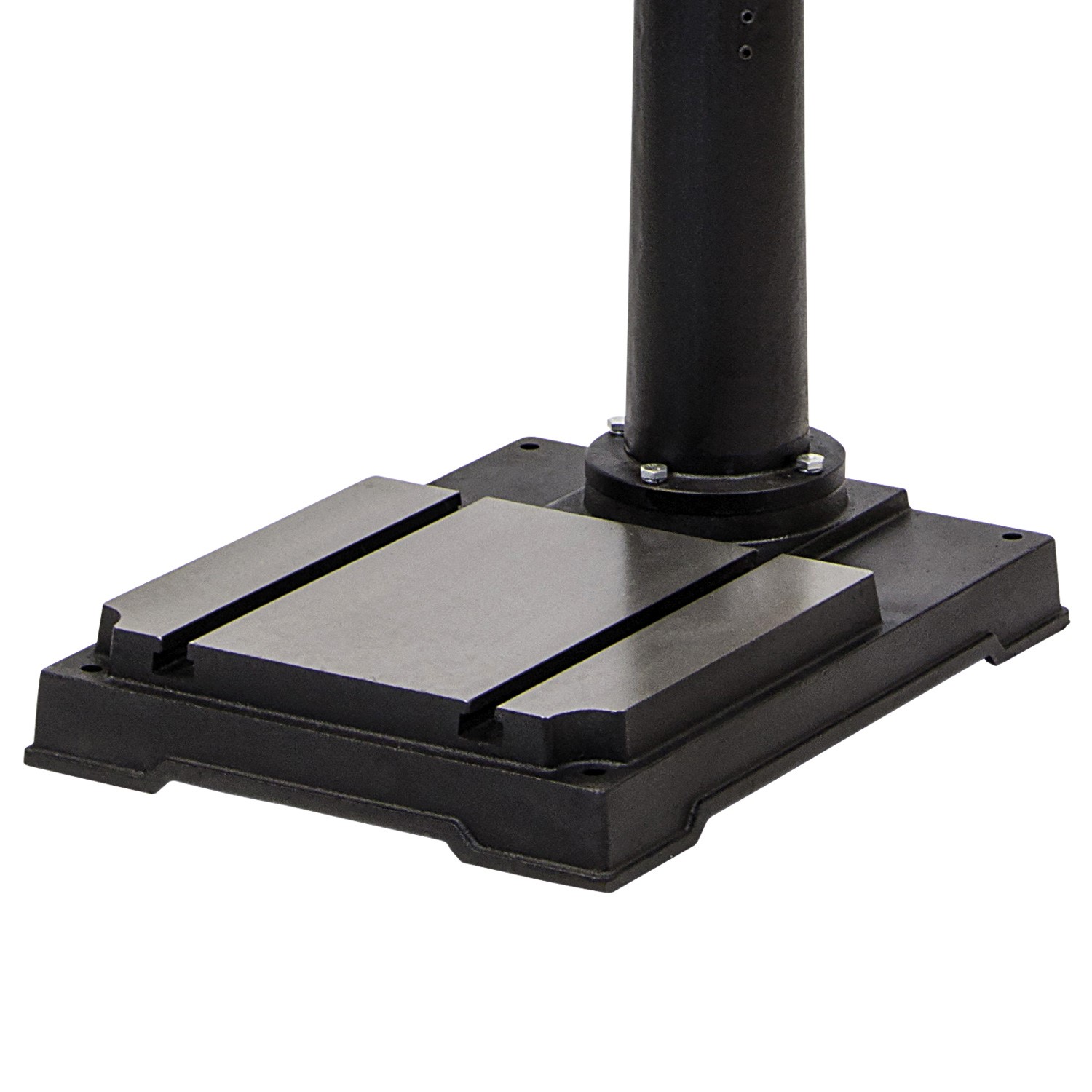

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.

Supports a variety of drilling applications
A larger drilling capacity via an MT4 fitting is ideal for materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.

Multi-speed functionality
Allows precise control of hole sizes across the drilling spectrum.

High-power brushless induction motor
Delivers powerful performance for consistent high-quality drilling.

Intuitive features for ease-of-use
Adjustable drilling table and three-lever handle ensures smooth drilling force.

Fitted with drilling depth stop
Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

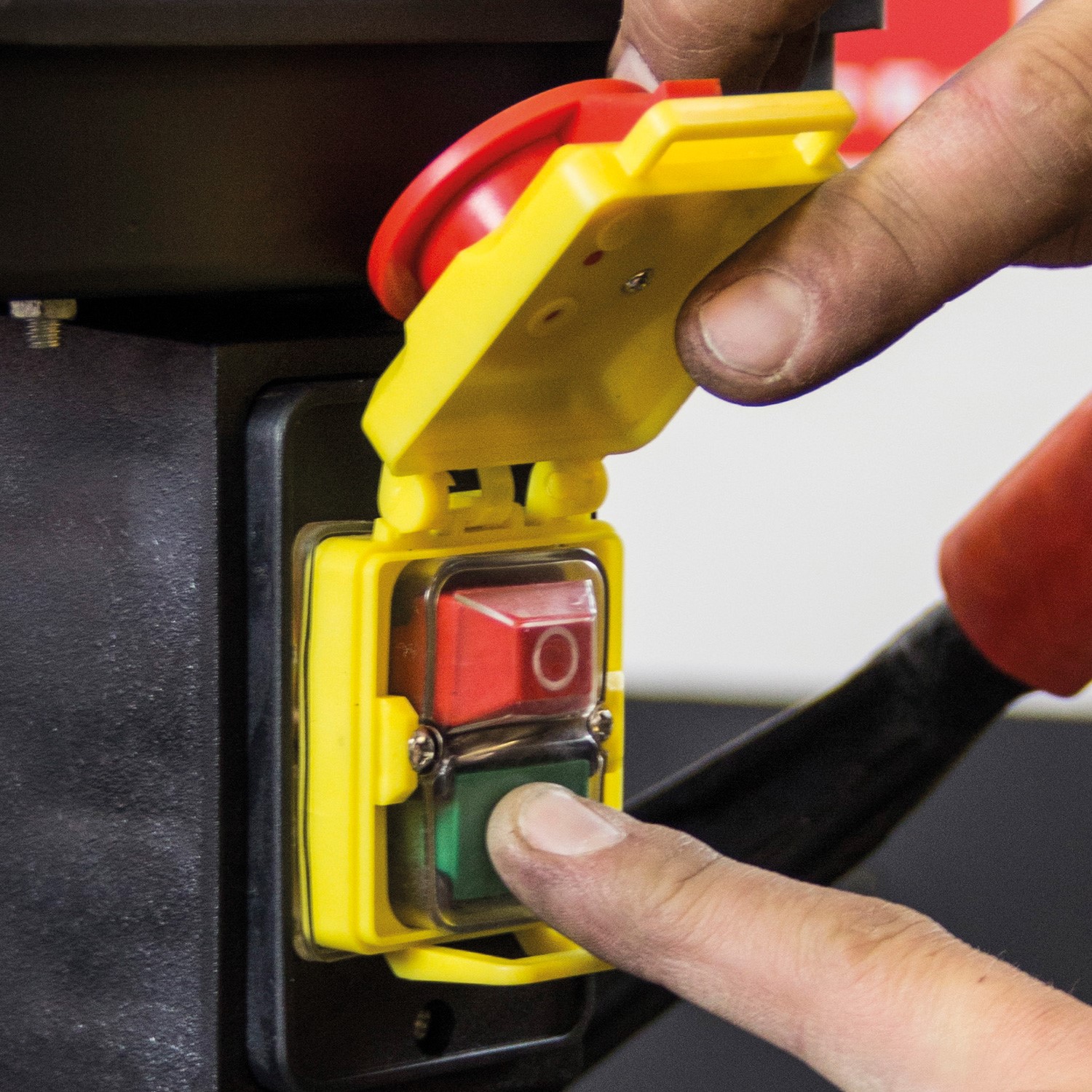

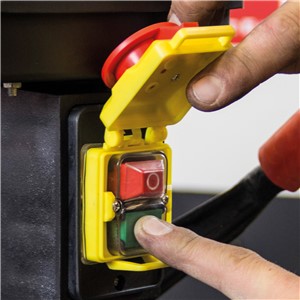

Safety interlock switch
Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

SIP 2-Year Standard Silver Warranty | Find out more

Technical Information

ITEM NO.	01718
Input Voltage:	400v 3-PHASE
Motor Power:	1100w
No. of Speeds:	12 speeds
Speed Range:	150rpm - 2500rpm
Drill Bit Size:	5mm - 20mm
Spindle Taper:	MT4
Table Size:	420mm x 470mm
Base Size:	570mm x 425mm
Column Diameter:	Ø 92mm
Swing:	506mm
Height:	1720mm
Spindle Travel:	120mm
Collar Diameter:	Ø 92mm
Max. Distance:	620mm (chuck to table) 1095mm (chuck to base)
Net Weight:	107.40kg
Gross Weight:	118.00kg
Product Dimensions:	1720(H) x 470(W) x 570mm(D)
Packaged Dimensions:	305(H) x 1415(W) x 650mm(D)
