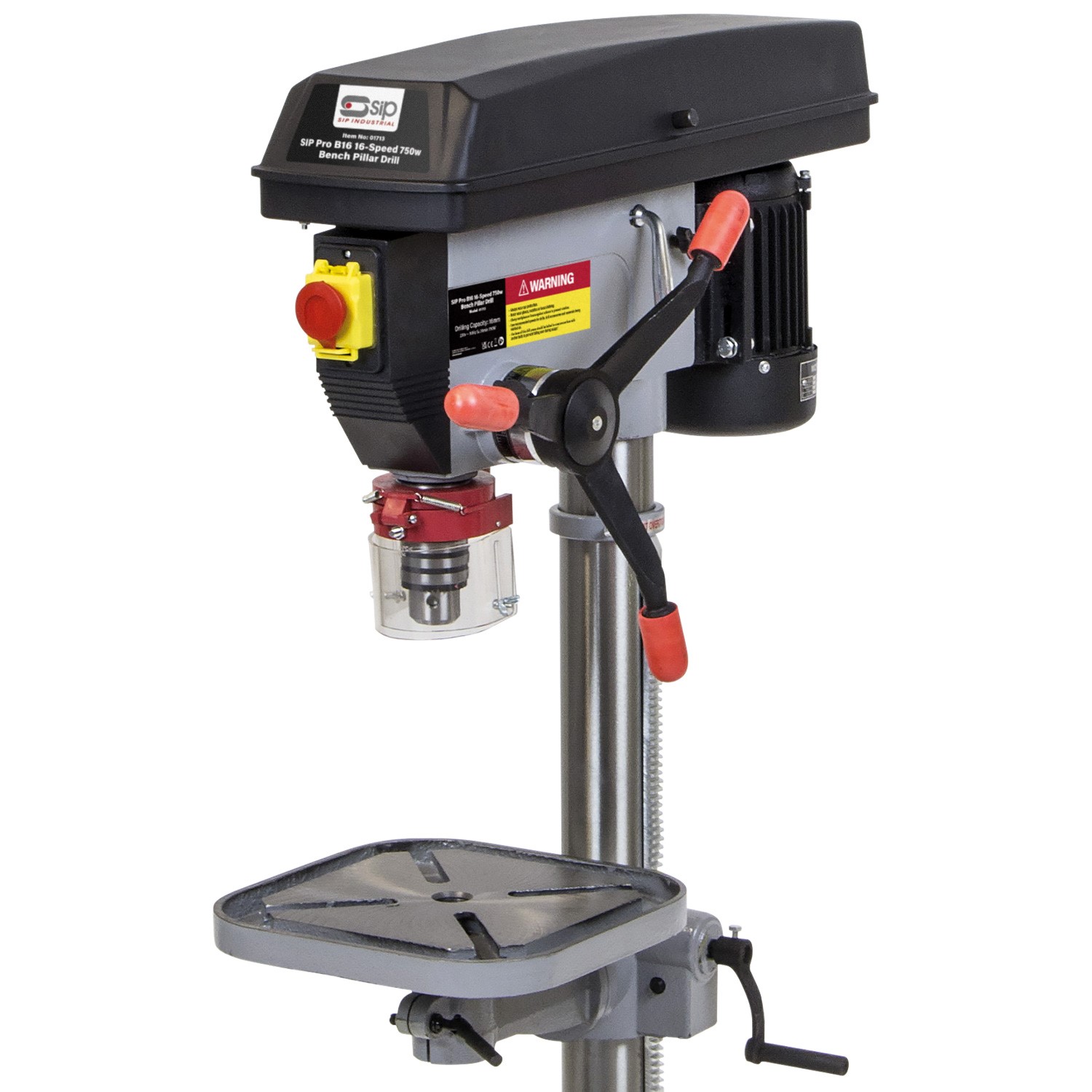

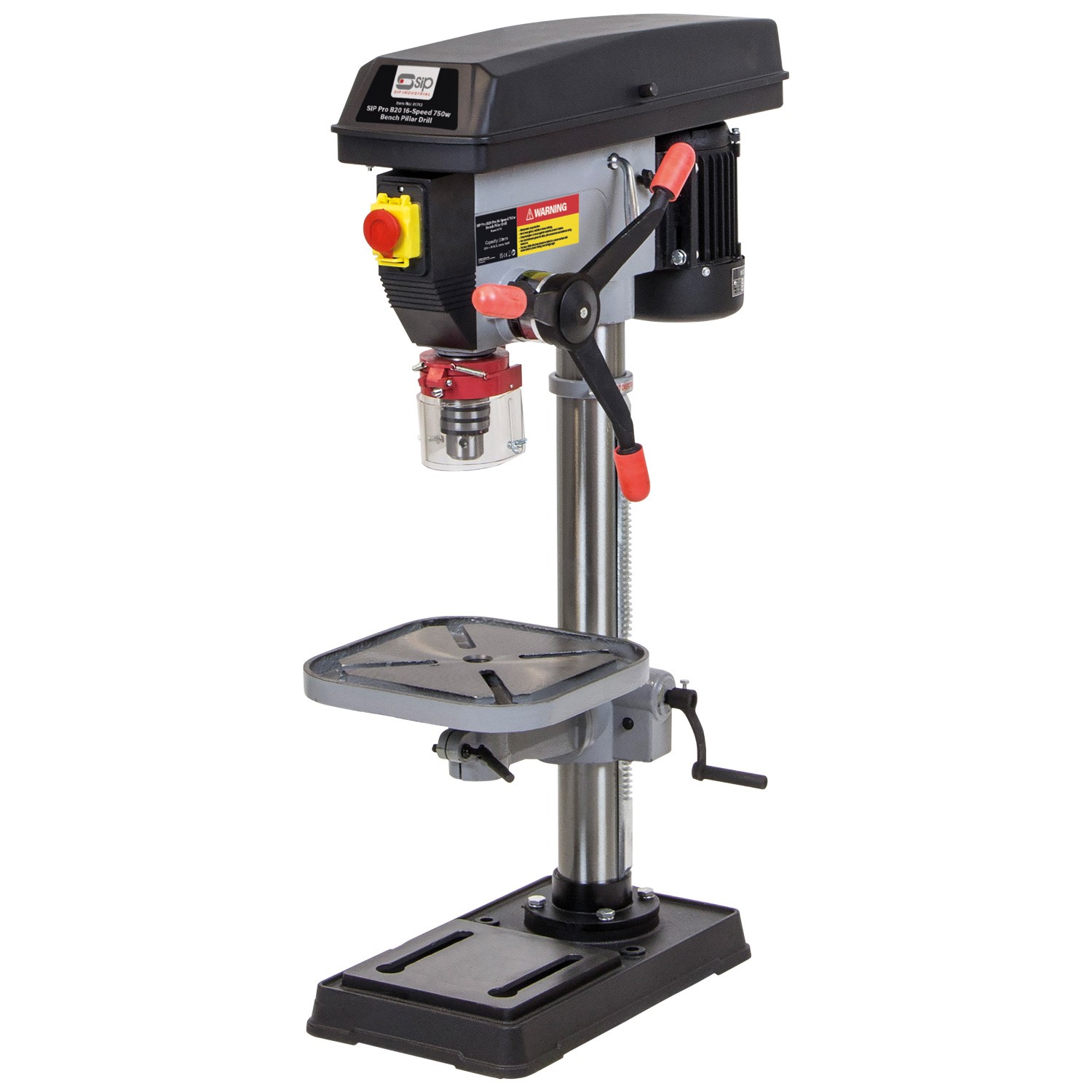

SIP Pro B20 16-Speed 750w Bench Pillar Drill

01713

Click on image to enlarge

SIP Pro B20 16-Speed 750w Bench Pillar Drill

01713

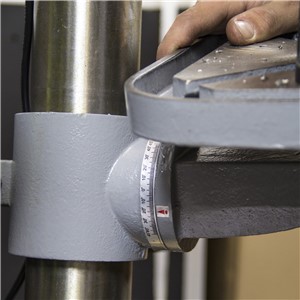

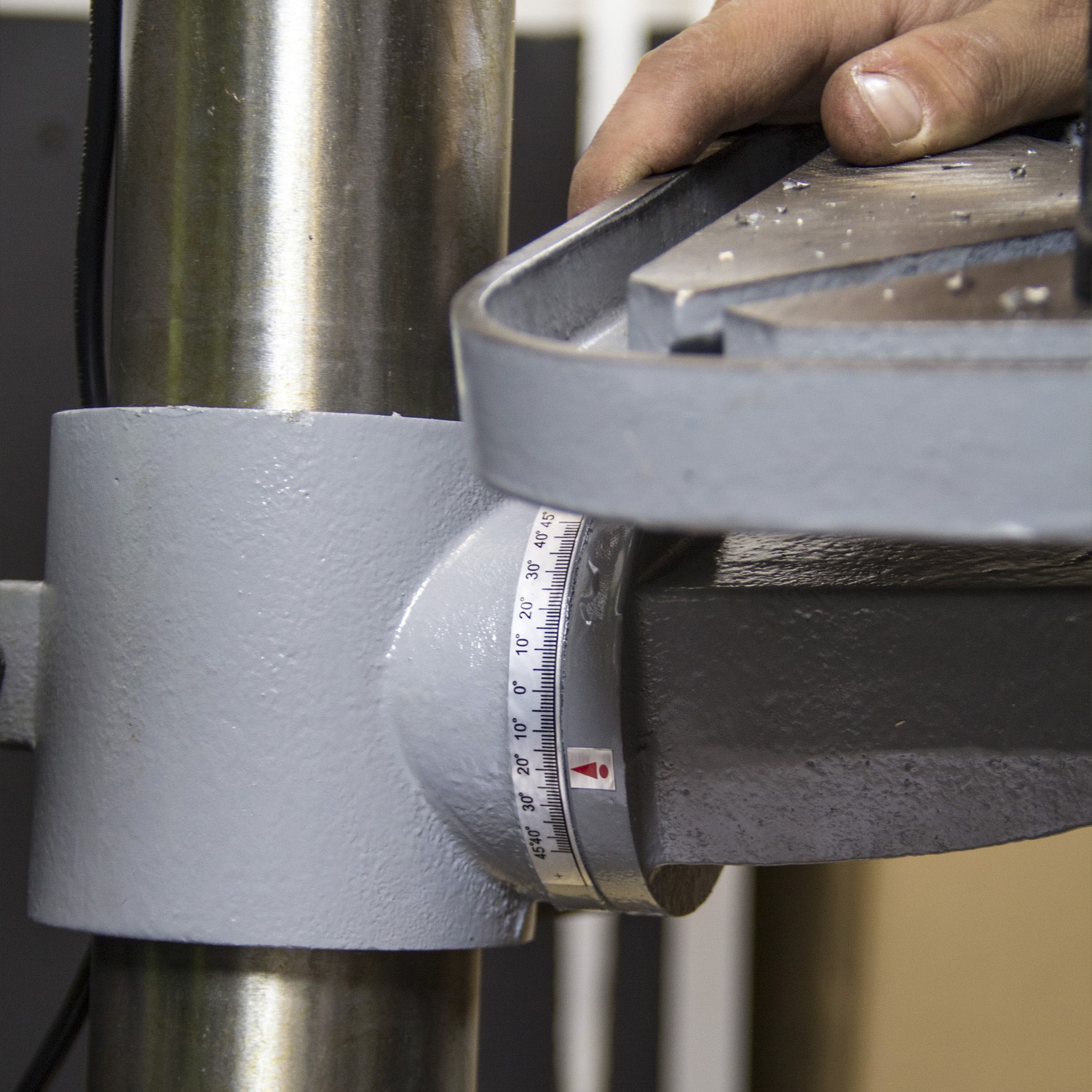

The SIP Pro B20 16-Speed 750w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned for accurate drilling.

KEY FEATURES

16 spindle speeds powered by a 750w motor from a 230v (13A) supply
Supports a variety of drilling applications
High-power brushless induction motor
Fitted with drilling depth stop
Adjustable drill table for greater accuracy
Safety interlock switch for safe motor belt adjustment

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Pro B20 16-Speed 750w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling.

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for a range of professional applications with limited floor space.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind, batch and general drilling applications, manufacturing gates, rails and trailers, plus metalwork and woodwork environments.

Supports a variety of drilling applications
Compatible with materials including ferrous and non-ferrous metals, hard and soft woods and high-density plastics.

Multi-speed functionality
Allows precise control of hole sizes across the drilling spectrum.

High-power brushless induction motor
Delivers powerful performance for consistent high-quality drilling.

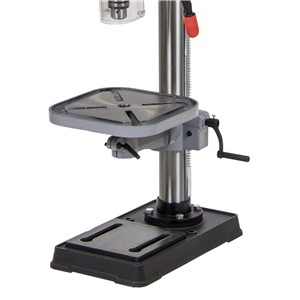

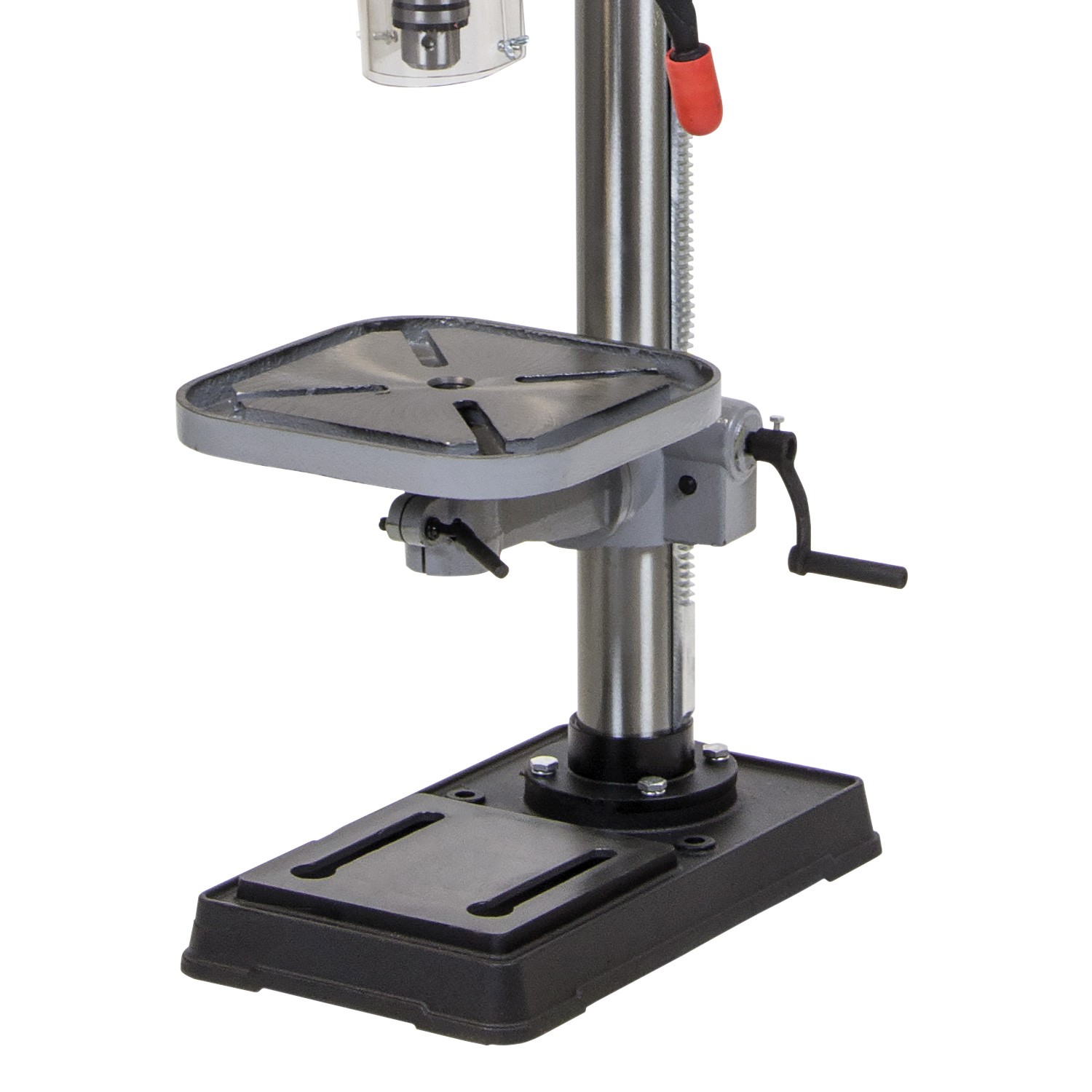

Intuitive features for ease-of-use
Adjustable drilling table and three-lever handle ensures smooth drilling force.

Fitted with drilling depth stop
Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

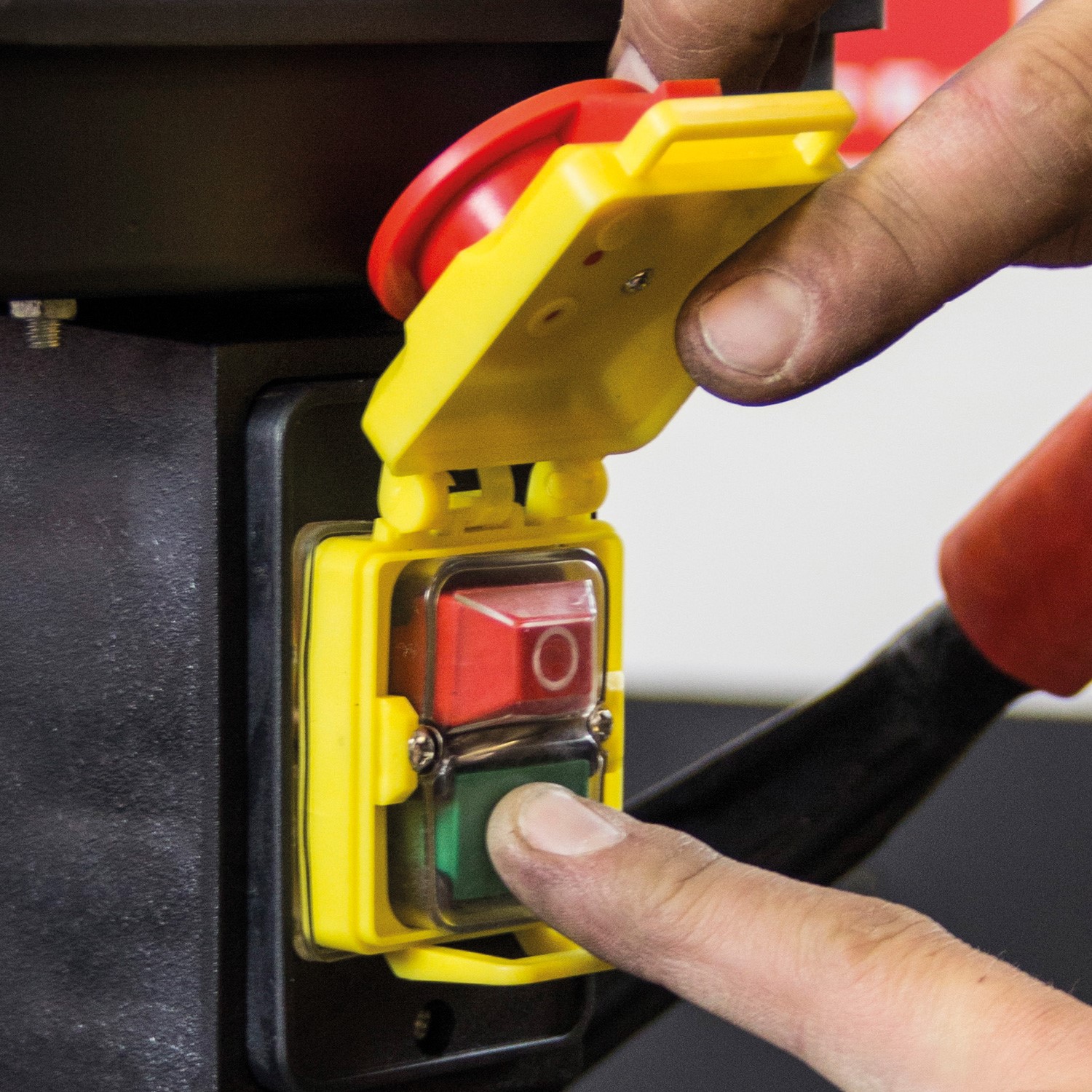

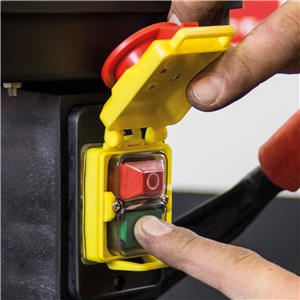

Safety interlock switch
Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

SIP 2-Year Standard Silver Warranty | Find out more

Technical Information

ITEM NO.	01713
Input Voltage:	230v (13A)
Motor Power:	750w
No. of Speeds:	16 speeds
Speed Range:	150rpm - 3000rpm
Drill Bit Size:	3mm - 16mm
Spindle Taper:	MT2
Table Size:	285mm x 285mm
Base Size:	460mm x 270mm
Column Diameter:	Ø 72mm
Swing:	360mm
Height:	1000mm
Spindle Travel:	80mm
Collar Diameter:	Ø 72mm
Max. Distance:	320mm (chuck to table) 510mm (chuck to base)
Net Weight:	48.50kg
Gross Weight:	50.50kg
Product Dimensions:	1000(H) x 290(W) x 460mm(D)
Packaged Dimensions:	275(H) x 810(W) x 490mm(D)
