SIP 3" Belt Linisher

01948

SIP 3" Belt Linisher01948SIP 3" Belt LinisherSIP 3" Belt LinisherSIP 3" Belt LinisherSIP 3" Belt Linisher
01948
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

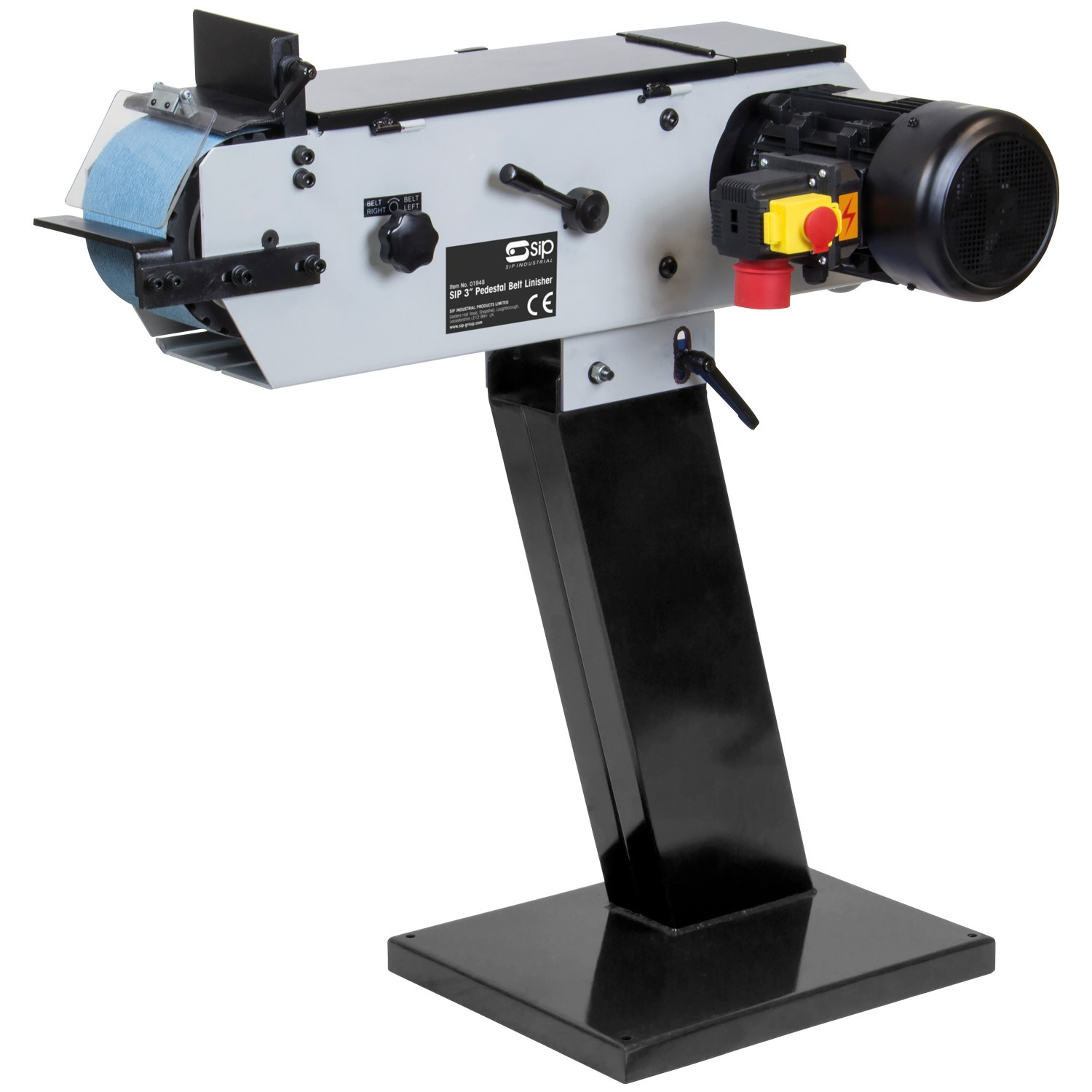

The SIP 3" Belt Linisher easily polishes and removes excess material using a tilting system to accommodate a variety of material lengths and sizes, plus accurate positioning via easy angle adjustment for excellent finishing and even surfaces on linished workpieces.

Designed for trade and professional applications.

KEY FEATURES

  • 3-point belt access for a variety of linishing applications
  • Head tilt accommodates a range of different material lengths and sizes
  • Long-lasting zirconium bonded belt for metals including stainless steel
  • Adjustable tool support and angles for accurate workpiece positioning
  • Quick release belt handle for easy access and belt changes
  • Belt tracking adjusting knob to belt running correction

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 3" Belt Linisher easily helps to improve the flatness and uniform surfacing of a variety of different material lengths and sizes using a selection of adjustable mechanisms to match the set-up of the machine to the task at hand.

Adjustable tool support offers accurate positioning of the workpiece and easy angle adjustment, while the linisher head tilt accommodates varying workpieces. Moreover, 3-point belt access on the wheel, platen top, and full platen increases versatility further.

Browse SIP METALWORK for more cutting, drilling, and grinding solutions.

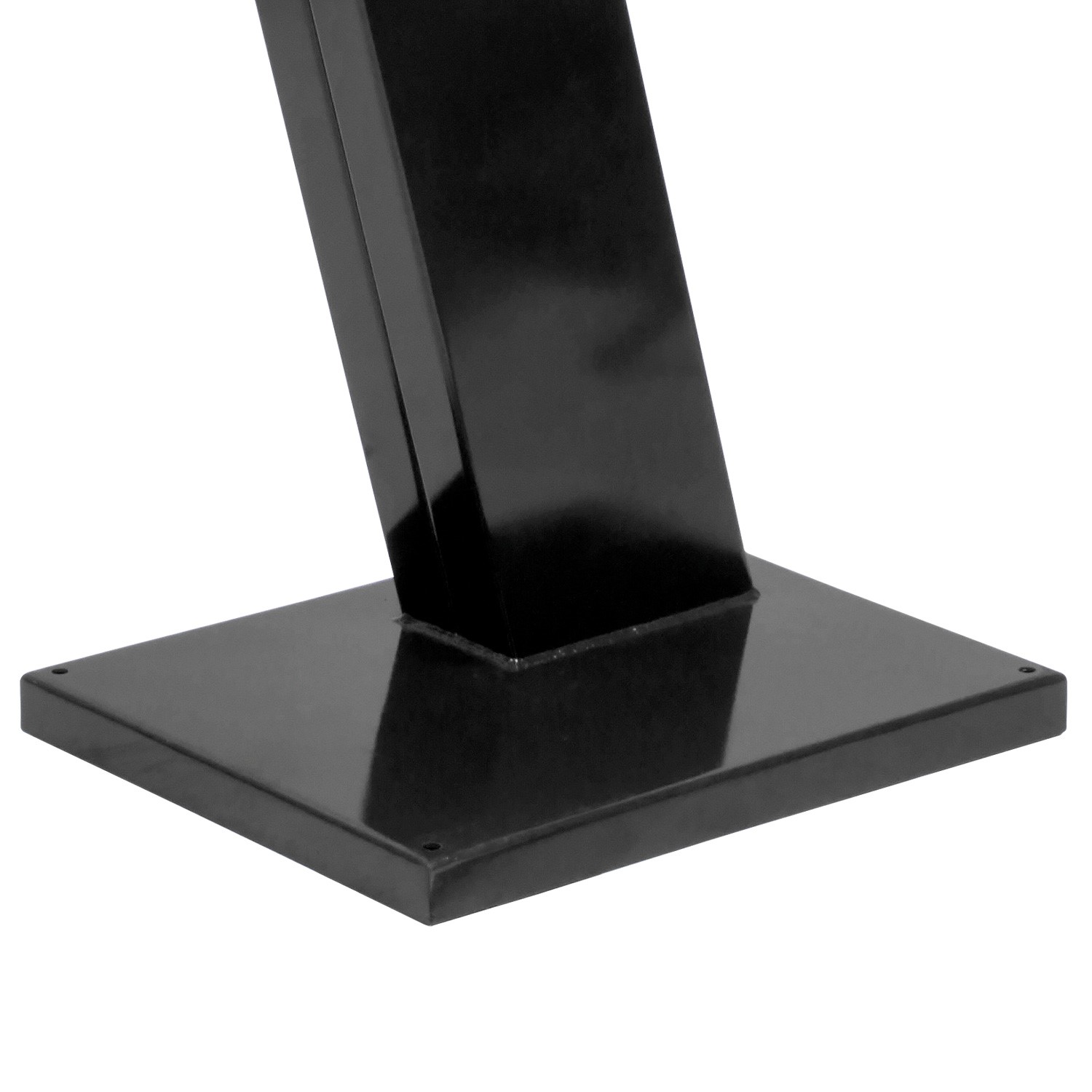

  • Heavy-duty construction with pedestal stand ideal for workshop requirements
  • Long-lasting zirconium bonded belt for range of metals including stainless steel

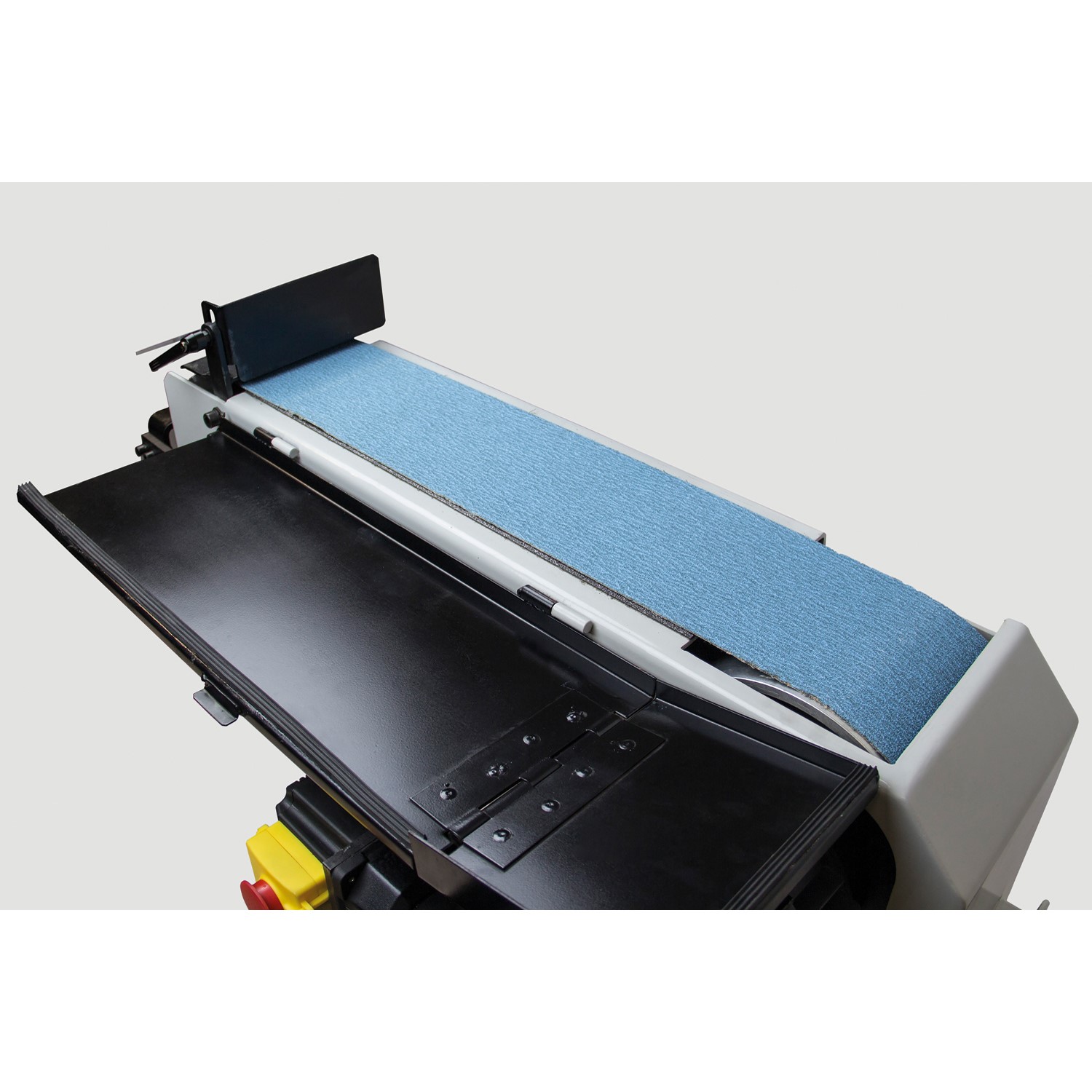

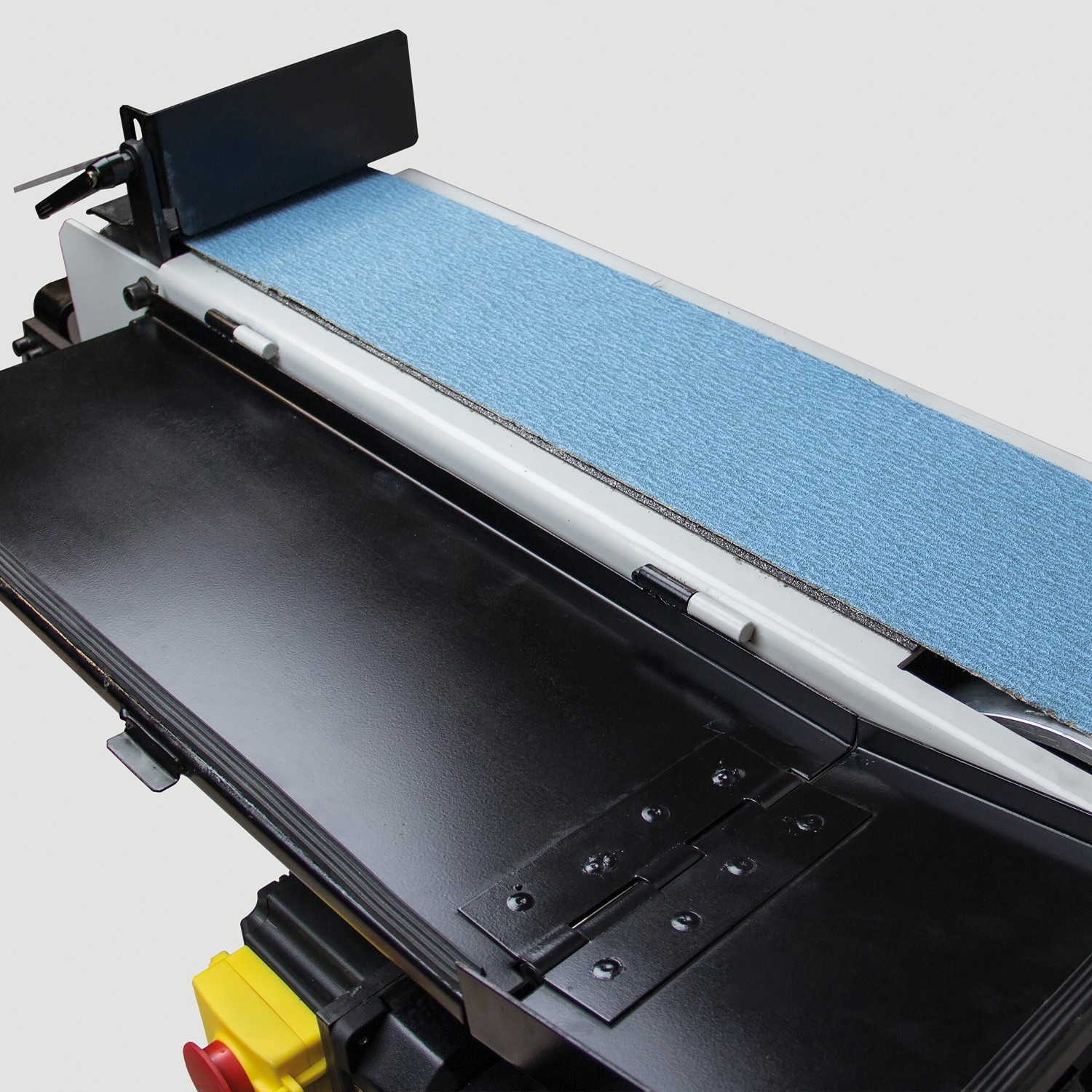

  • 3-point belt access; on wheel, platen top, and full platen for a variety of needs

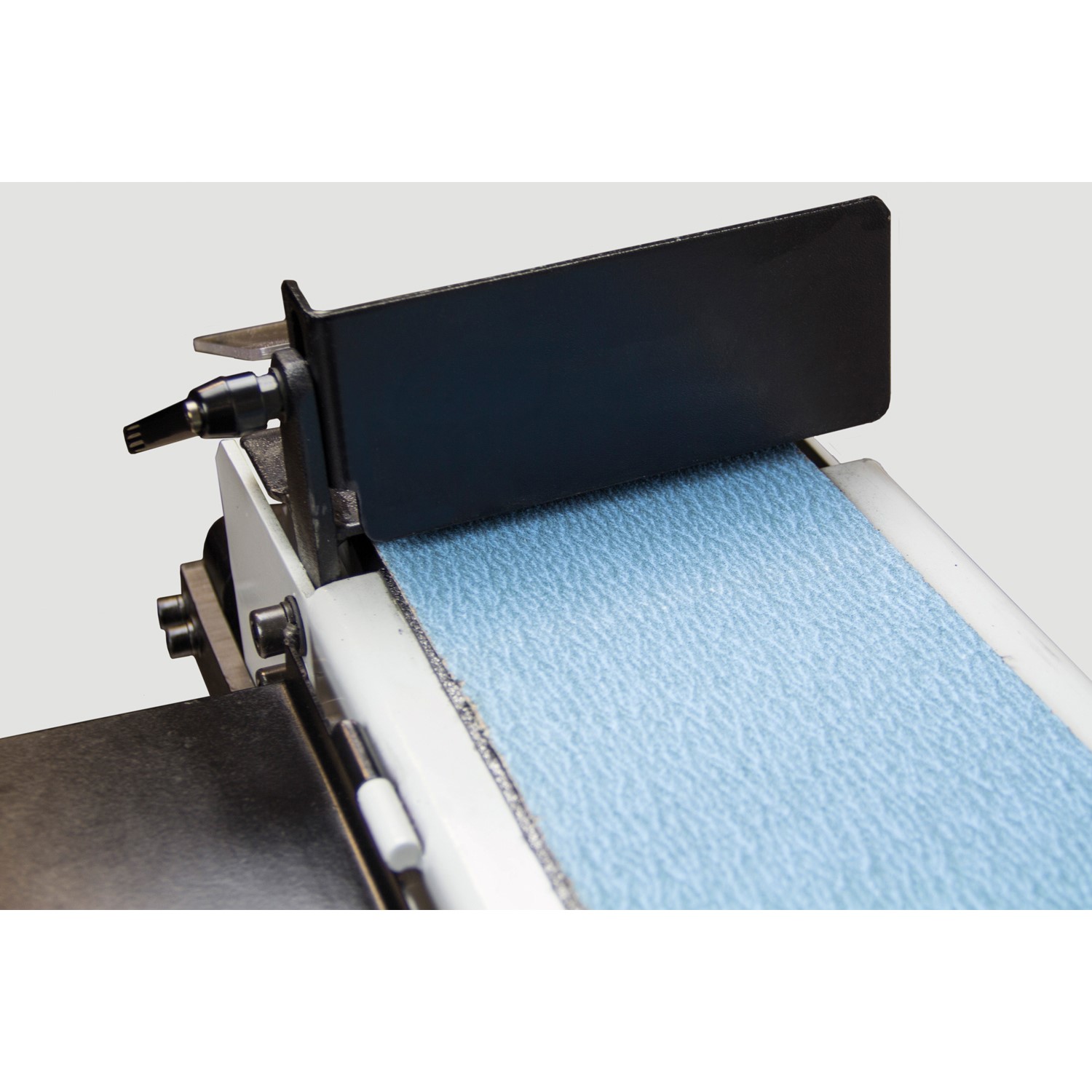

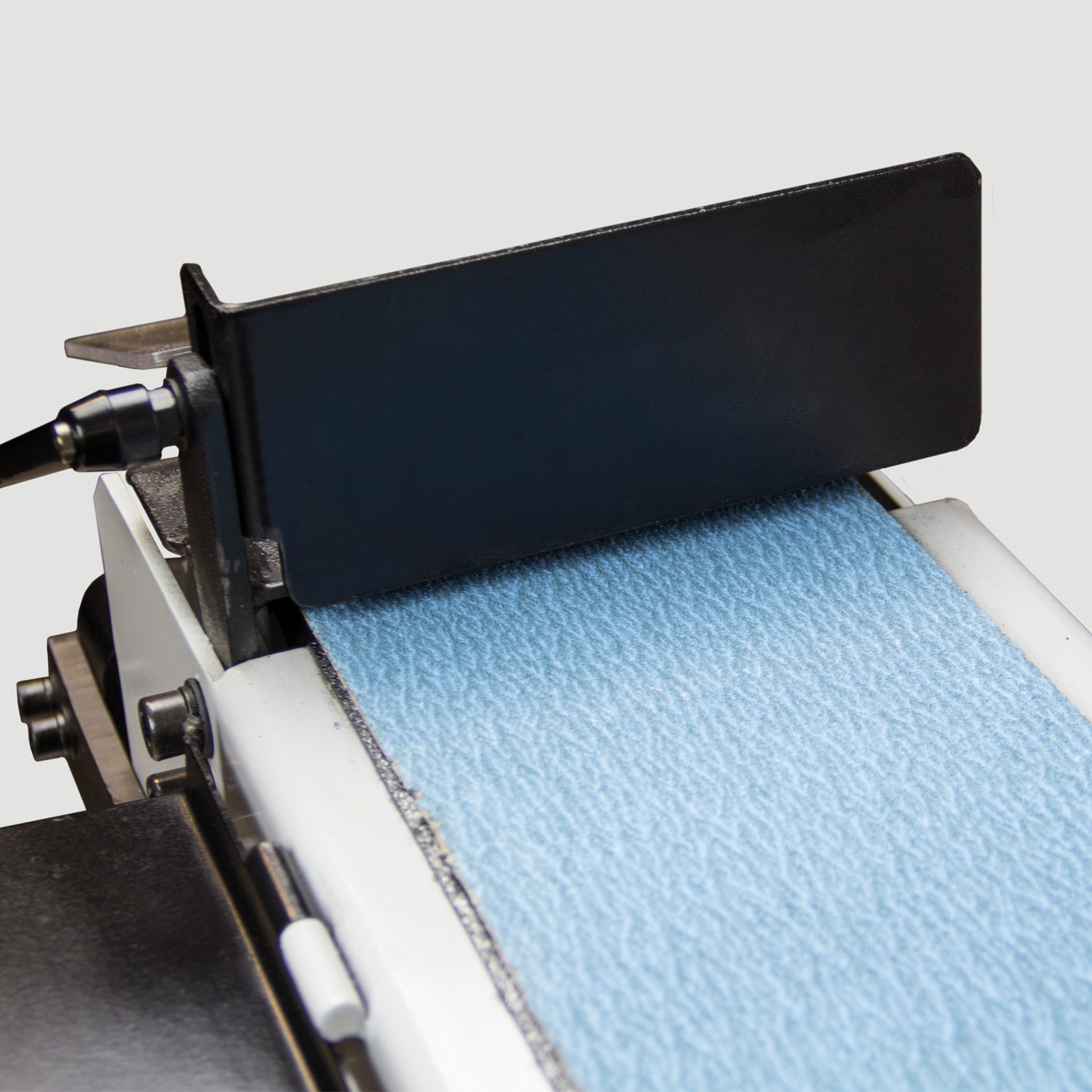

  • Adjustable tool support and angles for accurate positioning of the workpiece
  • Linishing head tilt to accommodate a variety of material lengths and sizes
  • Quick belt release handle for fast belt changing via easy-access side panel
  • Belt tracking adjusting knob ensures the belt runs straight and true

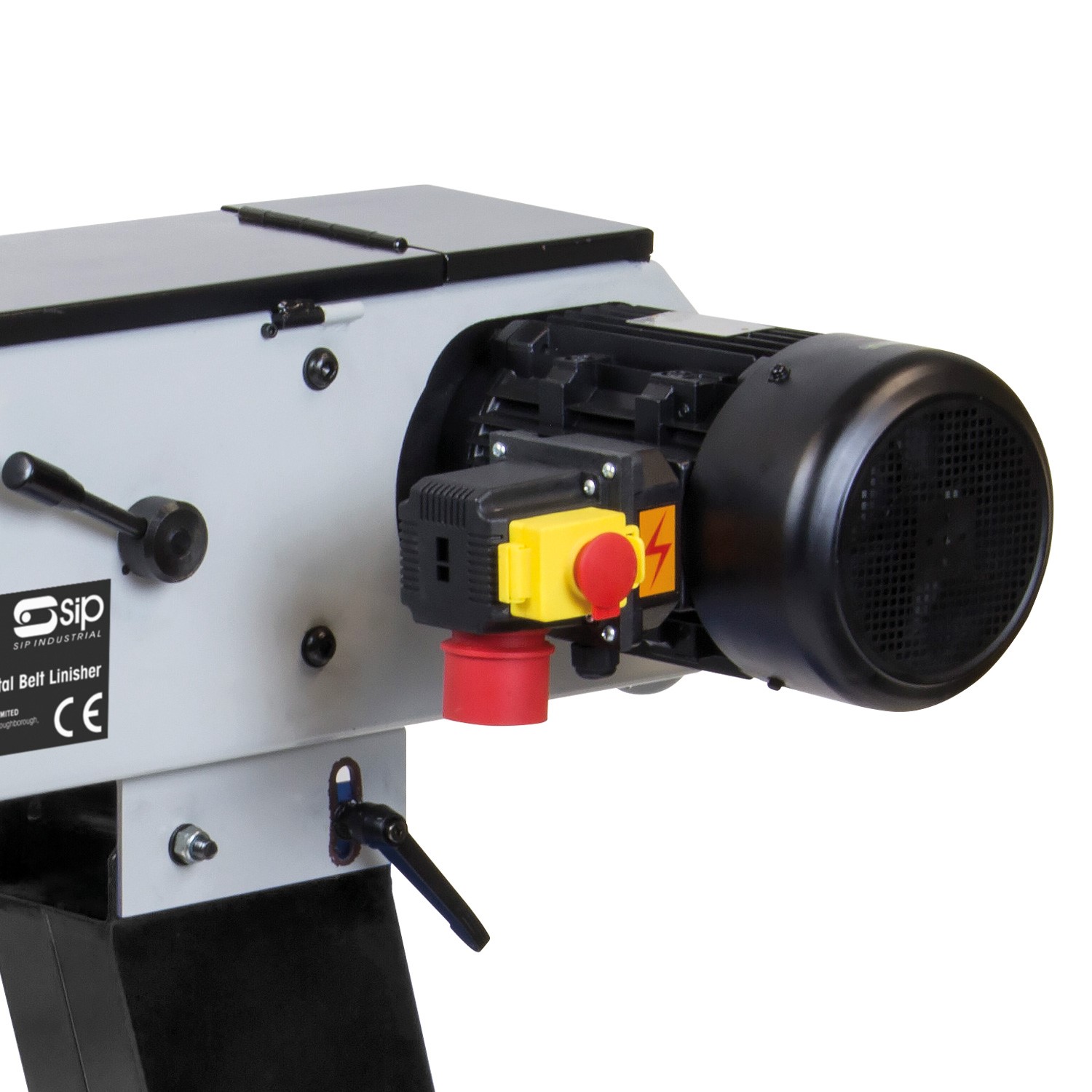

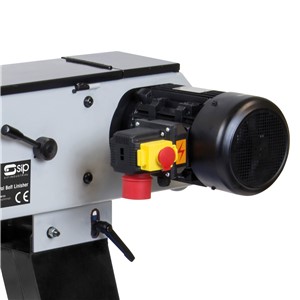

  • Adjustable eye protection and NVR switch for increased user safety
  • Designed for trade and professional applications
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 01948
Input Supply: 3-PHASE 400v
Motor Power: 4hp (3kW)
Belt Size: 2000mm x 75mm P80
Belt Speed: 34mtr/sec
Flat Grinding: 530mm
Contact Wheel: 200mm x 75mm
Steering Roller: 225mm x 75mm
Working Height: 475mm - 1240mm
Net Weight: 84.80kg
Gross Weight: 96.10kg
Product Dimensions:
Packaged Dimensions 545(H) x 1150(W) x 560mm(D)
