SIP 4" Belt Linisher

01960

Click on image to enlarge

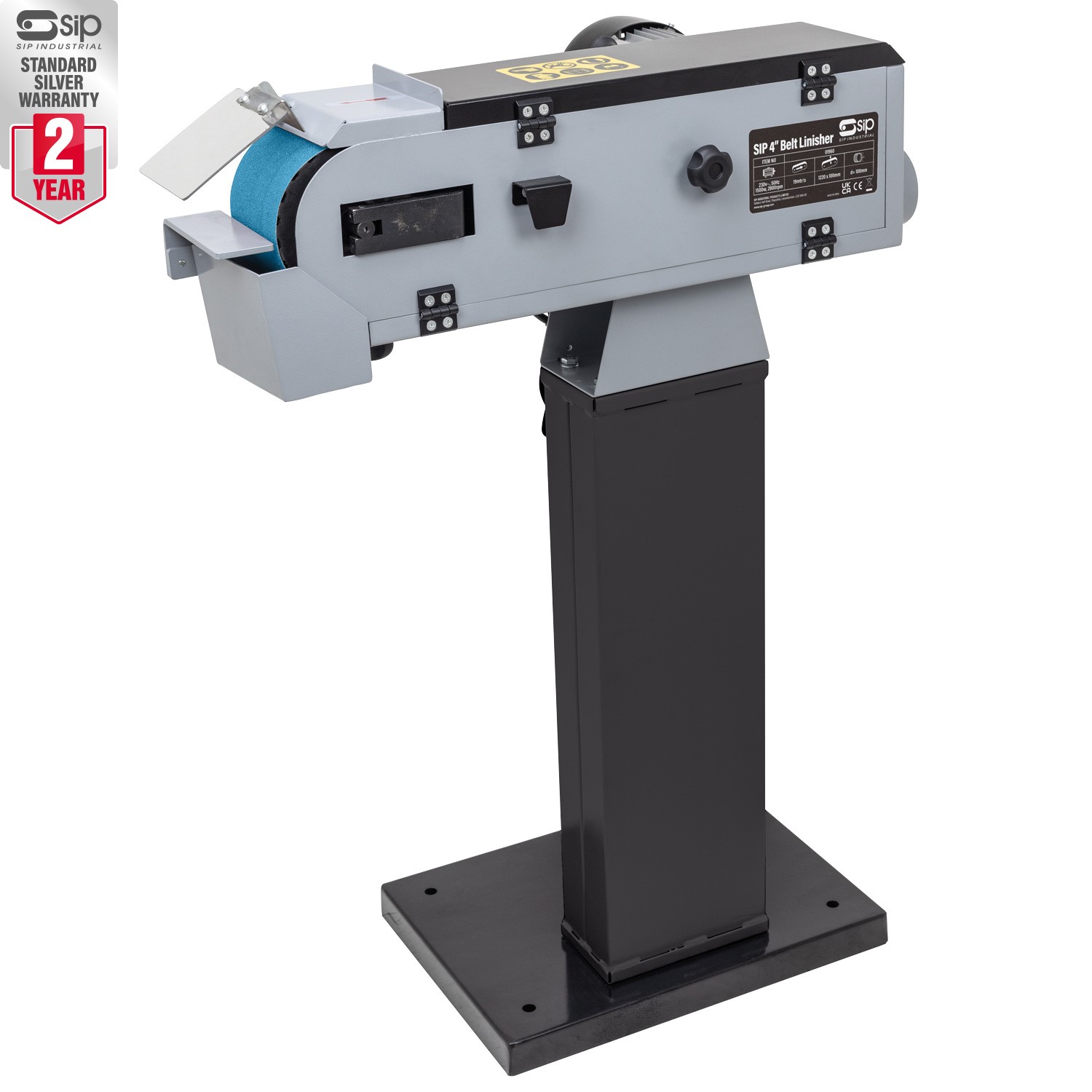

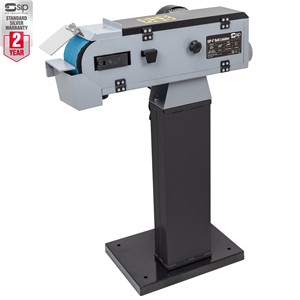

SIP 4" Belt Linisher

01960

The SIP 4" Belt Linisher is designed for removing sharp edges and burrs from metal workpieces or finishing metalwork products. This includes cleaning and grinding of metalworking products, tubes and profiles.

SIP Belt Linishers are an essential machine for professional metalwork and engineering workshop processes.

KEY FEATURES

Two-point belt access at wheel and full platen
Long-lasting zirconium bonded belt (100mm x 1220mm)
Quick release belt change via an easy-access panel
Fitted with 100mm etal dust extraction port
Bench or floor-mountable via supplied stands
Enhanced safety features and NVR switch

SIP 2-Year Standard Silver Warranty* | Find out more

BUY NOW

Full Specification

The SIP 4" Belt Linisher is designed for removing sharp edges and burrs from metal workpieces or finishing metalwork products. This includes cleaning and grinding of metalworking products, tubes and profiles.

SIP Belt Linishers are an essential machine for professional metalwork and engineering workshop processes.

Applications & uses: Ideal for removing sharp edges and burrs from metal pieces. Suitable for finishing mild steel, aluminium or stainless steel metalwork items.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

TWO-POINT BELT ACCESS

This versatile machine has 2 accessible working points (wheel and full platen) for a range of linishing tasks. Belt speed runs at 19mtr/sec for robust application use.
An adjustable tool support ensures workpiece makes accurate contact with the wheel. An adjustable belt tracker is also fitted to ensure abrasive belt is centralised at all times.

ZIRCONIUM BONDED BELT (100MM X 1220MM)

Long-lasting zirconium bonded belt for smoothing and finishing a variety of metal types. This includes mild steel, aluminium and stainless steel.

QUICK RELEASE BELT CHANGE

The abrasive zirconium bonded belt can be quickly released and replaced using an easy-access panel.

METAL DUST EXTRACTION PORT

A 100mm metal dust extraction port to be paired with the SIP Metal Dust Collector (01996, sold separately).

BENCH OR FLOOR-MOUNTABLE

Purpose-built steel stand allows the linisher to be bench-mounted or floor-mountable using the pedestal extension. This makes the linisher ideal for a variety of workshop environments. Steel stand and pedestal extension included.

ENHANCED SAFETY FEATURES

Fitted with NVR switch, adjustable eye protection and spark trap for greater user safety.

Technical Information

ITEM NO.	01960
Input Supply:	230v (13A)
Motor Power:	1.5kW (2hp)
Belt Size / Grade:	1220mm x 100mm / 60G
Belt Speed:	19mtr/sec
Flat Grinding Height:	860mm
Contact Wheel Size:	125mm x 100mm
Working Height (Contact Wheel):	800mm
Net Weight:	40.00kg
Gross Weight:	45.00kg
Product Dimensions:	885(H) x 390(W) x 650mm(D)
Packaged Dimensions:	750(H) x 400(W) x 330mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE

No extended details available.
