WINNTEC® 3 Ton Low-Profile Turbo-Lift Trolley Jack

09706

Click on image to enlarge

WINNTEC® 3 Ton Low-Profile Turbo-Lift Trolley Jack

09706

The WINNTEC® 3 Ton Low-Profile Turbo-Lift Trolley Jack is a heavy-duty trolley jack with a vehicle lifting capacity of up to 3 Tons. Suitable for vehicles with lower clearance, it is perfect for tyre changes, brake maintenance and general repairs in garage and automotive environments.

Featuring a Turbo-Lift system with 2-speed lowering, the trolley jack uses a twin-piston pump mechanism to raise and lower the vehicle quickly and easily, with minimal operator strain and a smooth and controlled descent.

Fitted with non-marking and long-lasting PU - polyurethane - wheels, which also minimises trolley noise and potential damage to work area floors.

KEY FEATURES

Low-profile 3 Ton trolley jack with Turbo-Lift system and 2-speed lowering
Max. 503mm lift height and 76mm min. access height
Perfect for tyre changes, brake maintenance and general repairs
Heavy-duty steel construction for added durability and strength
Non-marking and long-lasting PU wheels also minimise trolley noise
Compatible with WINNTEC® X and EV Liftpads (09709 and 09711)

WINNTEC 3-Year Warranty* | Find out more

BUY NOW

Full Specification

The WINNTEC® 3 Ton Low-Profile Turbo-Lift Trolley Jack is a heavy-duty trolley jack with a vehicle lifting capacity of up to 3 Tons. Suitable for vehicles with lower clearance, it is perfect for tyre changes, brake maintenance and general repairs in garage and automotive environments.

Featuring a Turbo-Lift system with 2-speed lowering, the trolley jack uses a twin-piston pump mechanism to raise and lower the vehicle quickly and easily, with minimal operator strain and a smooth and controlled descent.

Fitted with non-marking and long-lasting PU - polyurethane - wheels, which also minimises trolley noise and potential damage to work area floors.

Applications & uses: Ideal for garage and automotive environments. Suitable for mobile breakdown and service vans. Perfect for tyre changes, brake maintenance and general repairs on vehicles with lower clearance.

What's in the box?: 1x WINNTEC® 3 Ton Low-Profile Turbo-Lift Trolley Jack.

WINNTEC® from SIP 3-Year Warranty* | Find out more

Full Specification 2

HEAVY-DUTY & LOW-PROFILE 3 TON TROLLEY JACK FEATURING A TURBO-LIFT SYSTEM WITH 2-SPEED LOWERING TO MAKE VEHICLE LIFTING TASKS QUICKER & EASIER

Maximum 503mm lift height. 76mm minimum access height.
Low-profile design offers additional versatility and can be used with vehicles with lower clearances.
Features a Turbo-Lift system with 2-speed lowering, which minimises operator strain and fewer pull handle strokes are required to lift the vehicle.
Lifting: foot pedal allows easy ascent of the contact saddle to the lifting point before using the pull handle for fully raise the vehicle.
Lowering: pull handle twist engages the twin-piston pump mechanism, which fully lowers the vehicle with a smooth and controlled descent.
A durable rubber lifting pad ensures a firm connection with the vehicle lifting points for an assured lift.
Perfect for tyre changes, brake maintenance and general repairs.

STEEL CONSTRUCTION OFFERS HEAVY-DUTY DURALITY & STRENGTH IN USE

Fitted with non-marking and long-lasting PU - polyurethane - wheels which minimises trolley noise and potential damage to work area floors.
Built with chrome-plated dual pistons for added durability.

COMPATIBLE WITH WINNTEC® X & EV LIFTPADS (09709 & 09711) WHICH OFFERS ADDED STABILITY & PROTECTION FOR DAMAGE-FREE VEHICLE LIFTING

Compatible with both WINNTEC® X and S Liftpads (09709 and 09711).

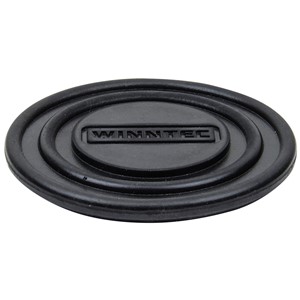

Always remove the saddle pad before fitting WINNTEC® Liftpads.

Technical Information

ITEM NO.	09706
Max. Lifting Height:	503mm
Min. Access Height:	76mm
Turbo-Lift System:	Yes
Net Weight:	36.5kg
Gross Weight:	38.19kg
Product Dimensions:	700(H) x 400(W) x 1400mm(D)
Packaged Dimensions:	200(H) x 410(W) x 800mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 3 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL WINNTEC PRODUCTS!

We are extremely confident that our products will offer exceptional durability, reliability, and heavy-duty performance, and to back that up we are now offering the WINNTEC 3-Year Warranty across all* WINNTEC products. On top of this, we offer a service-based Gold Warranty that extends the duration of your warranty for a further 24 months if purchased.

In addition, all SIP Premium Partner Brands now offer comprehensive warranties of their own!

FIND OUT MORE

*excludes accessories and consumables.

No extended details available.
