SIP STARTMASTER DSC200B Digital Starter Charger

03584

SIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter ChargerSIP STARTMASTER DSC200B Digital Starter Charger
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

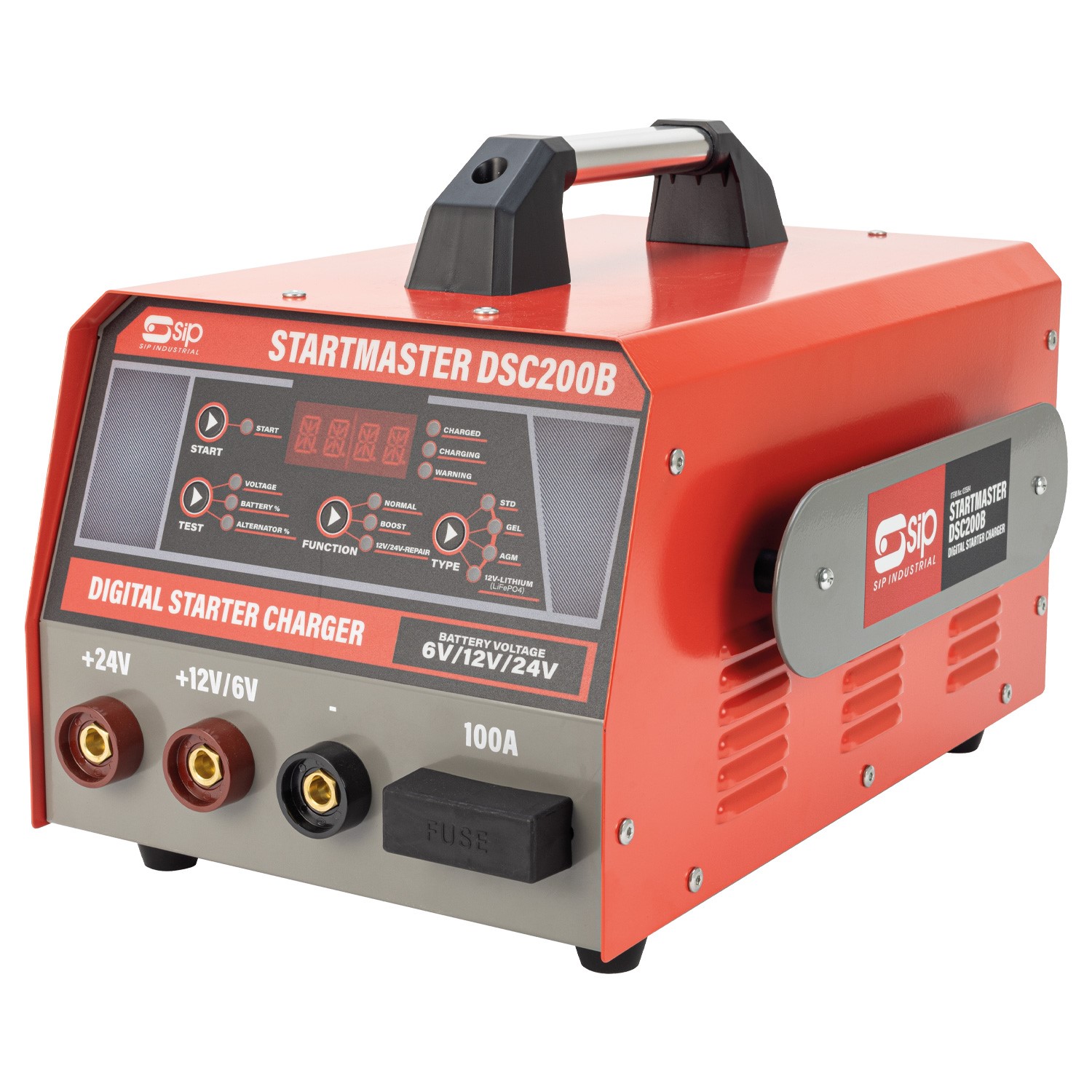

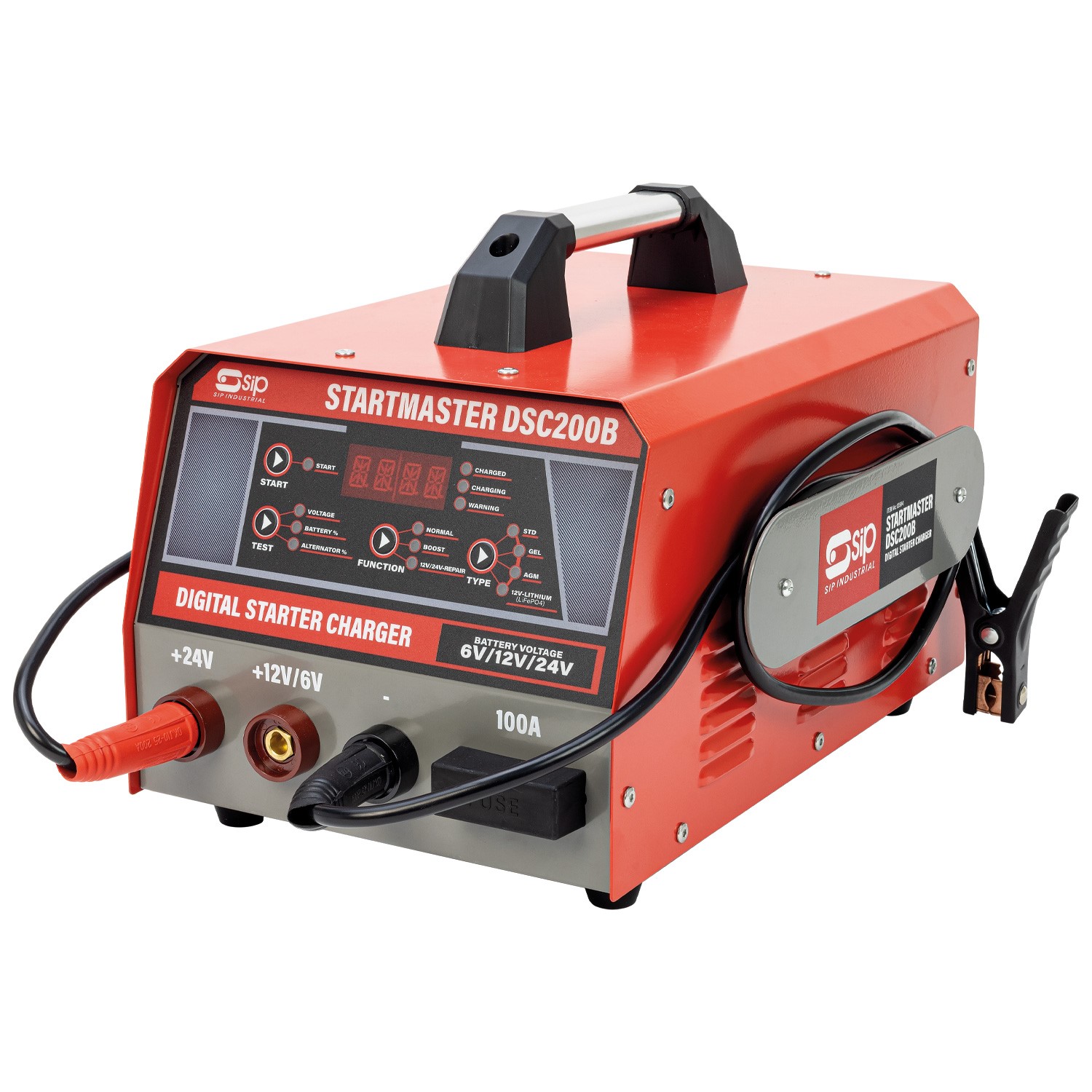

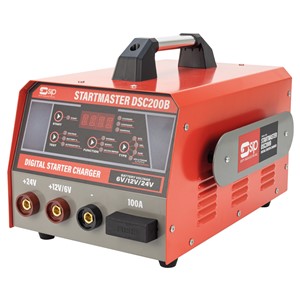

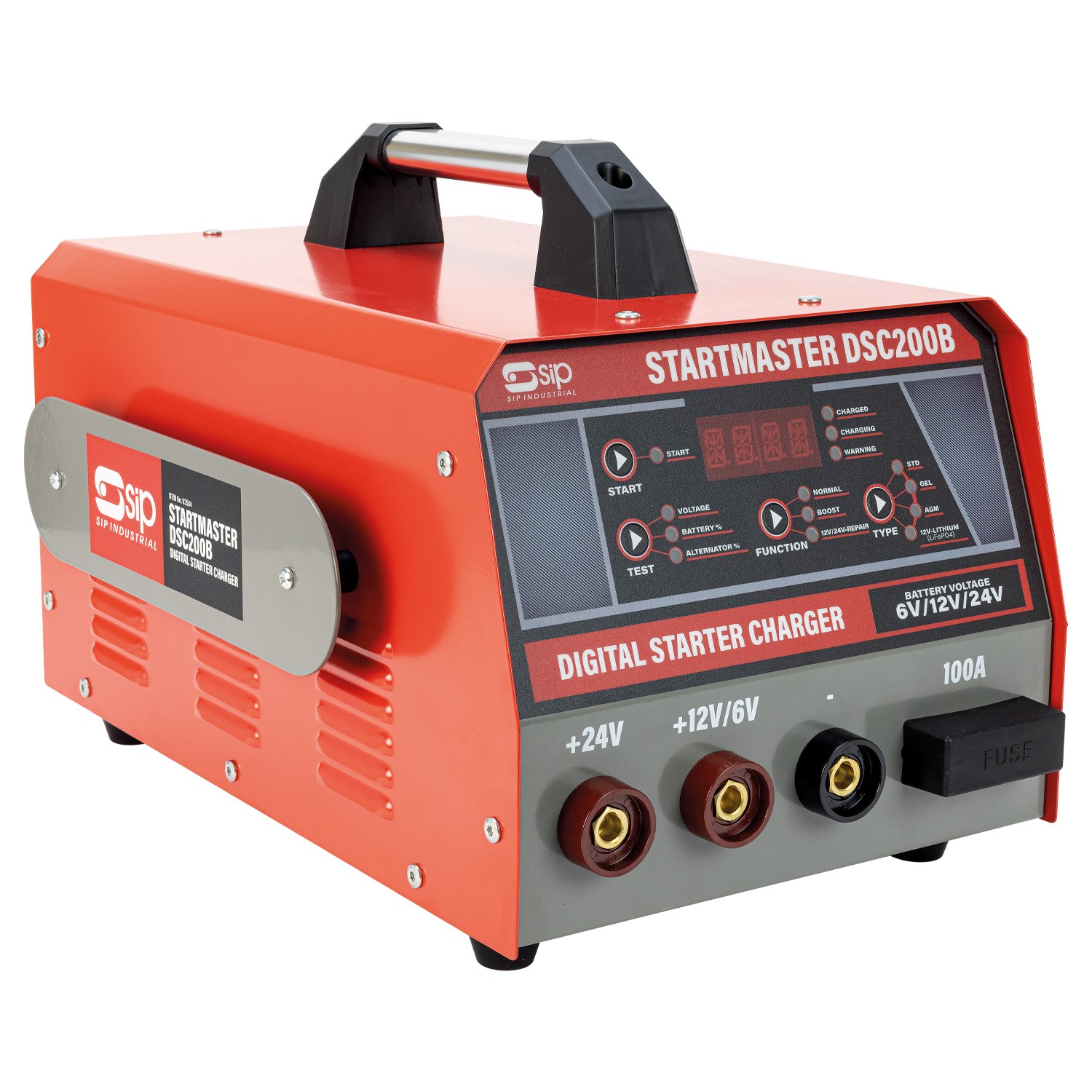

The SIP STARTMASTER DSC200B Digital Starter Charger is a powerful bench-top digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.

Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC200B makes battery charging and boosting easier, faster and safer.

KEY FEATURES

  •  6v/12v/24v charging voltage and 200A max. engine boost-start
  •  Charges 12v Lithium-Ion (LiFePO4) batteries
  •  Charging capacity of up to 350Ah max. rated
  •  Microprocessor-controlled automatic 10-step charging cycle
  •  Battery low voltage detector >1v
  •  One-person operation allows for single user engine boost-start

SIP 2-Year Standard Silver Warranty | Find out more

Warranty Information

The SIP STARTMASTER DSC200B Digital Starter Charger is a powerful bench-top digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.

Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC200B makes battery charging and boosting easier, faster and safer.

Applications & uses: Ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments. Suitable for charging commercial vehicle batteries.

SIP 2-Year Standard Silver Warranty | Find out more

Versatile charger booster suitable for a variety of lead acid and Lithium-Ion batteries
This includes WET, MF, EFB, GEL, AGM, CA and 12v LiFePO4 battery types.

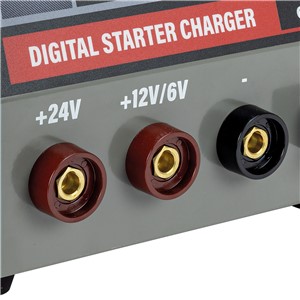

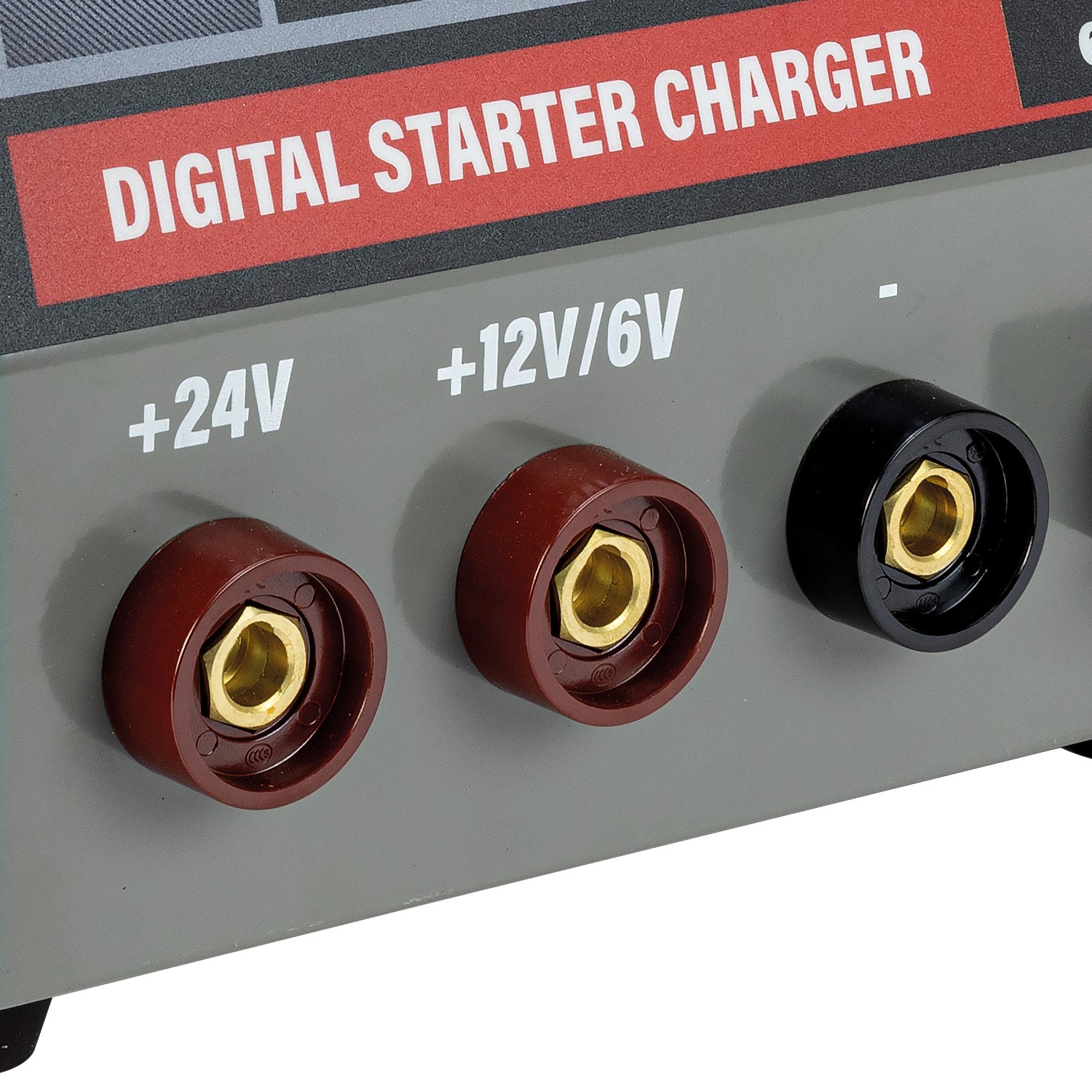

Suitable for charging 6v, 12v and 24v batteries.

Boost-start capacity for 12v and 24v batteries.

Microprocessor-controlled charger booster supports reliable performance and functionality
An intelligent 10-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.

Battery auto-detect intelligently recognises 6v, 12v or 24v type before beginning a charging or boosting cycle.

Low 1v detection improves chances of recovering batteries unwilling to power. Voltage will display when starter charger is switched on.

'Alternator Test' mode indicates alternator health and performance.

'One-person operation' allows for single user engine boost-start.

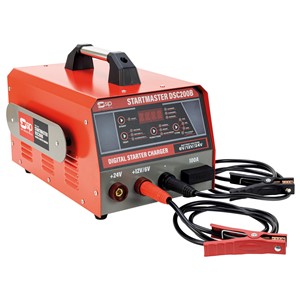

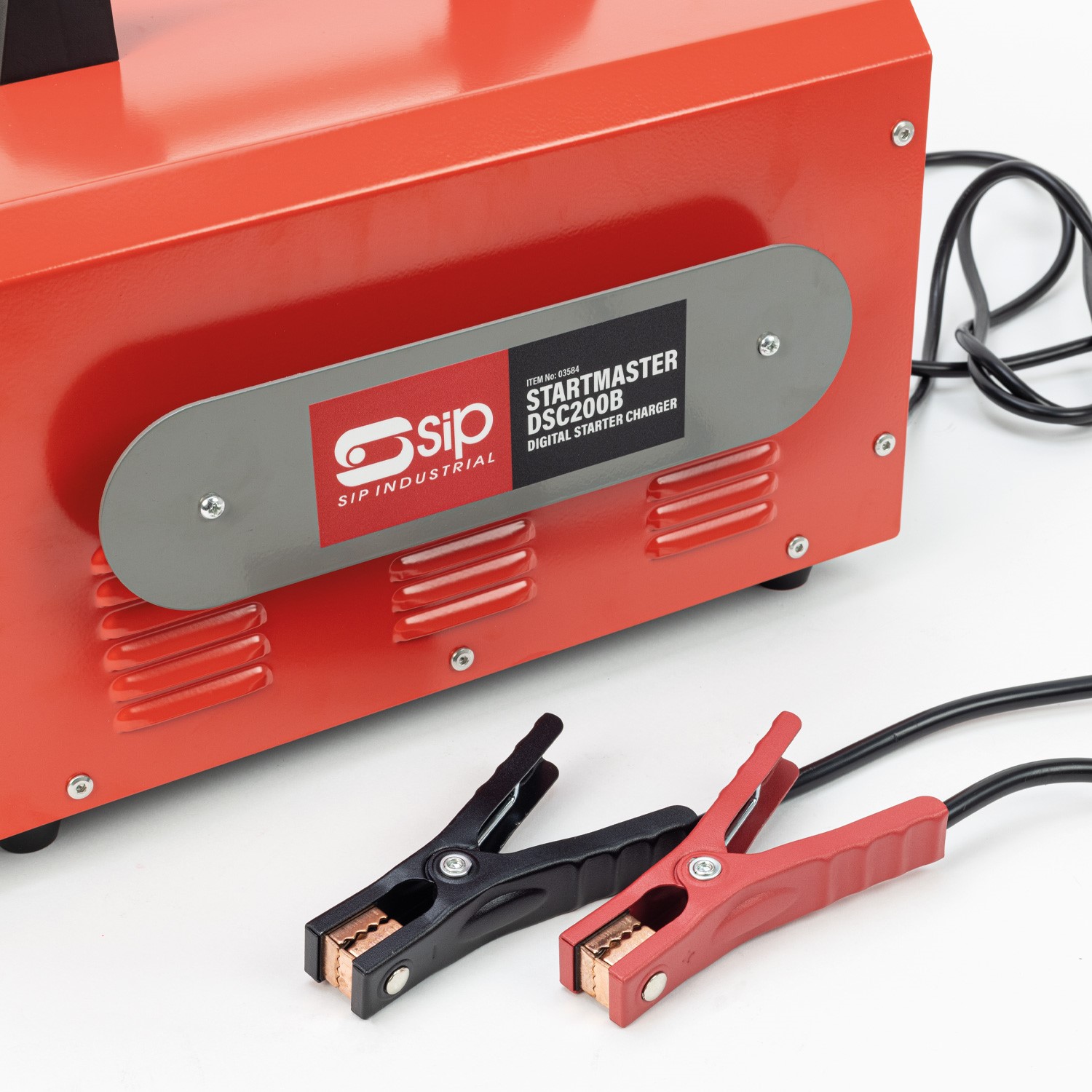

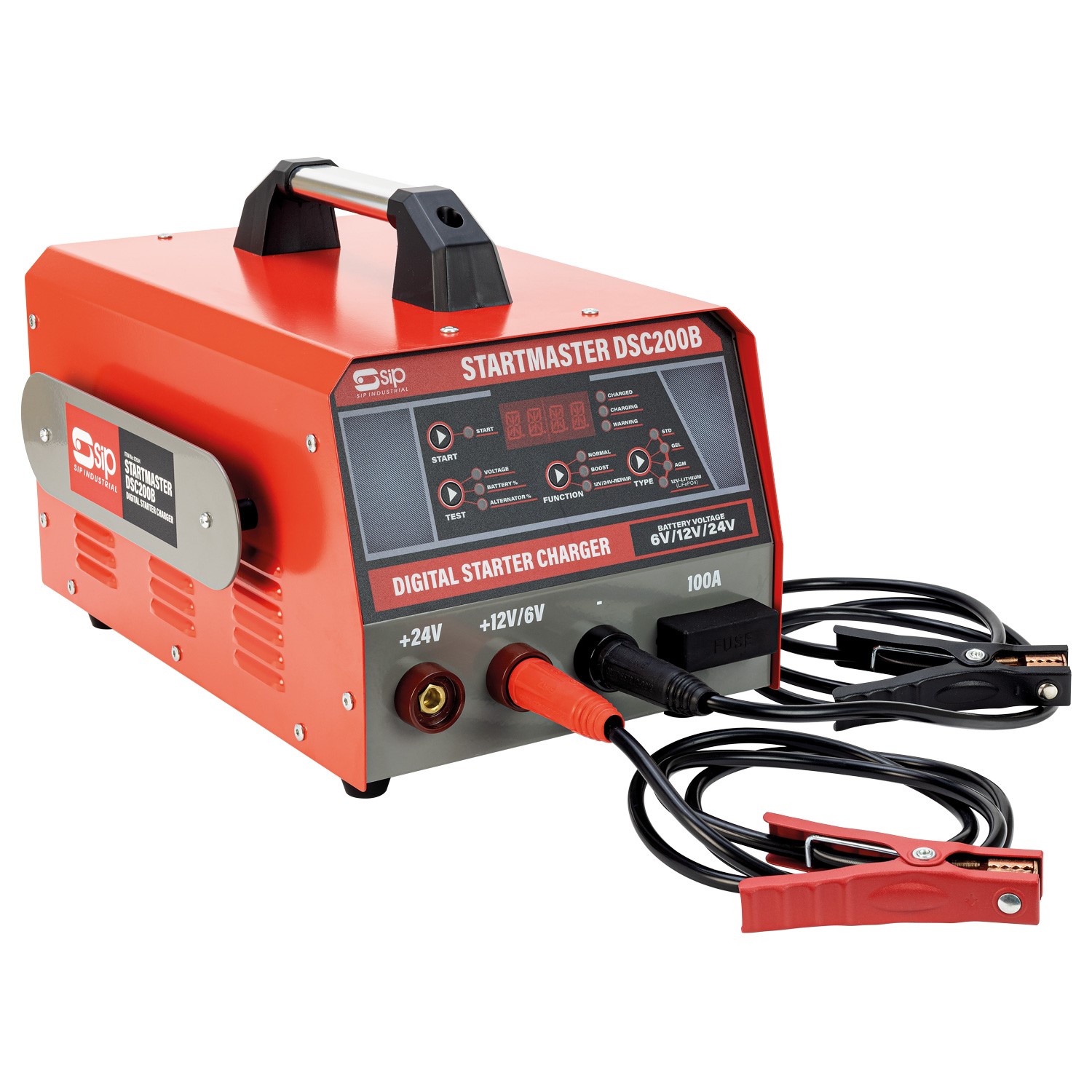

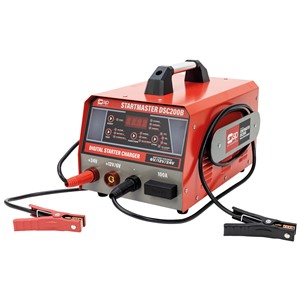

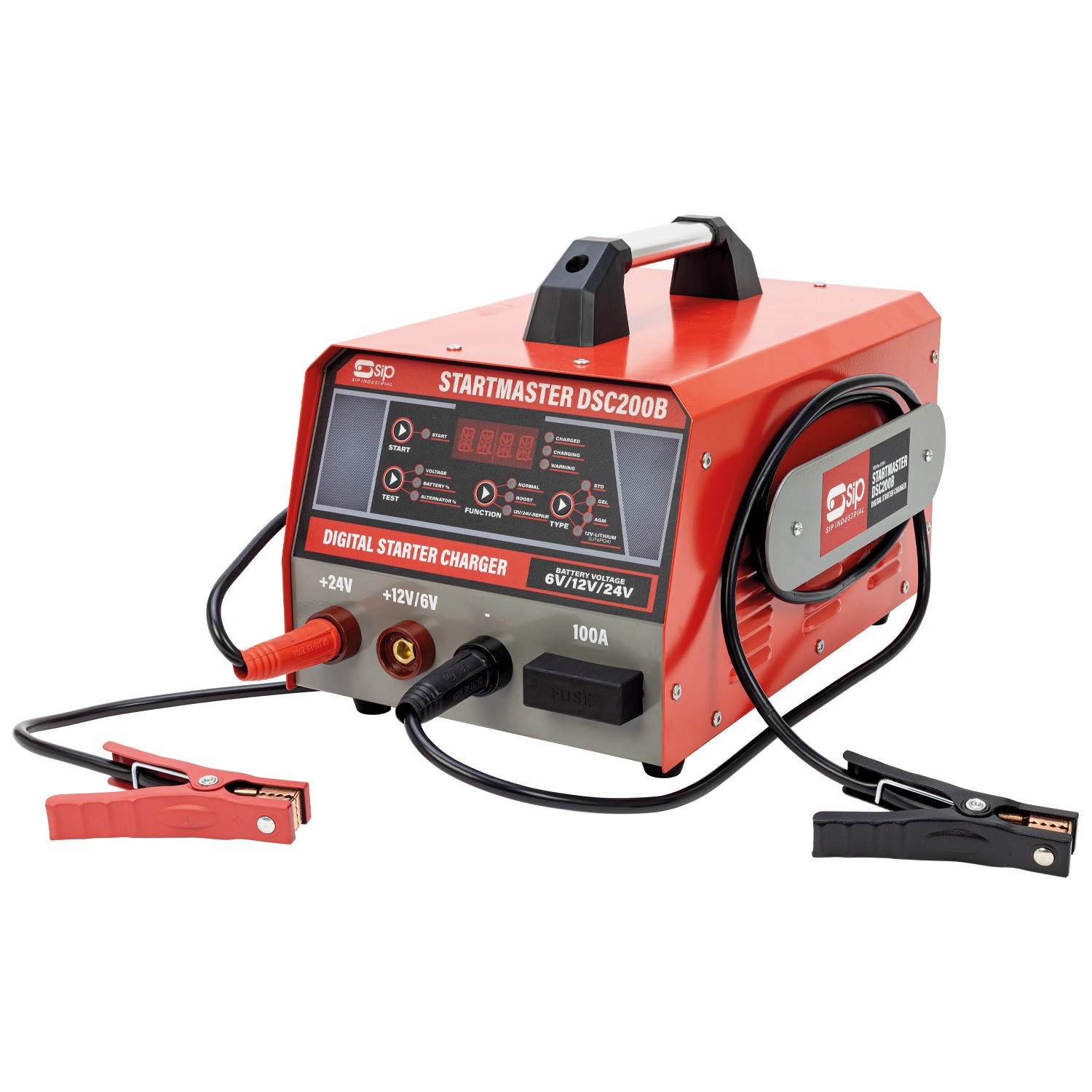

Supplied with 2x 2mtr leads and clip clamps.

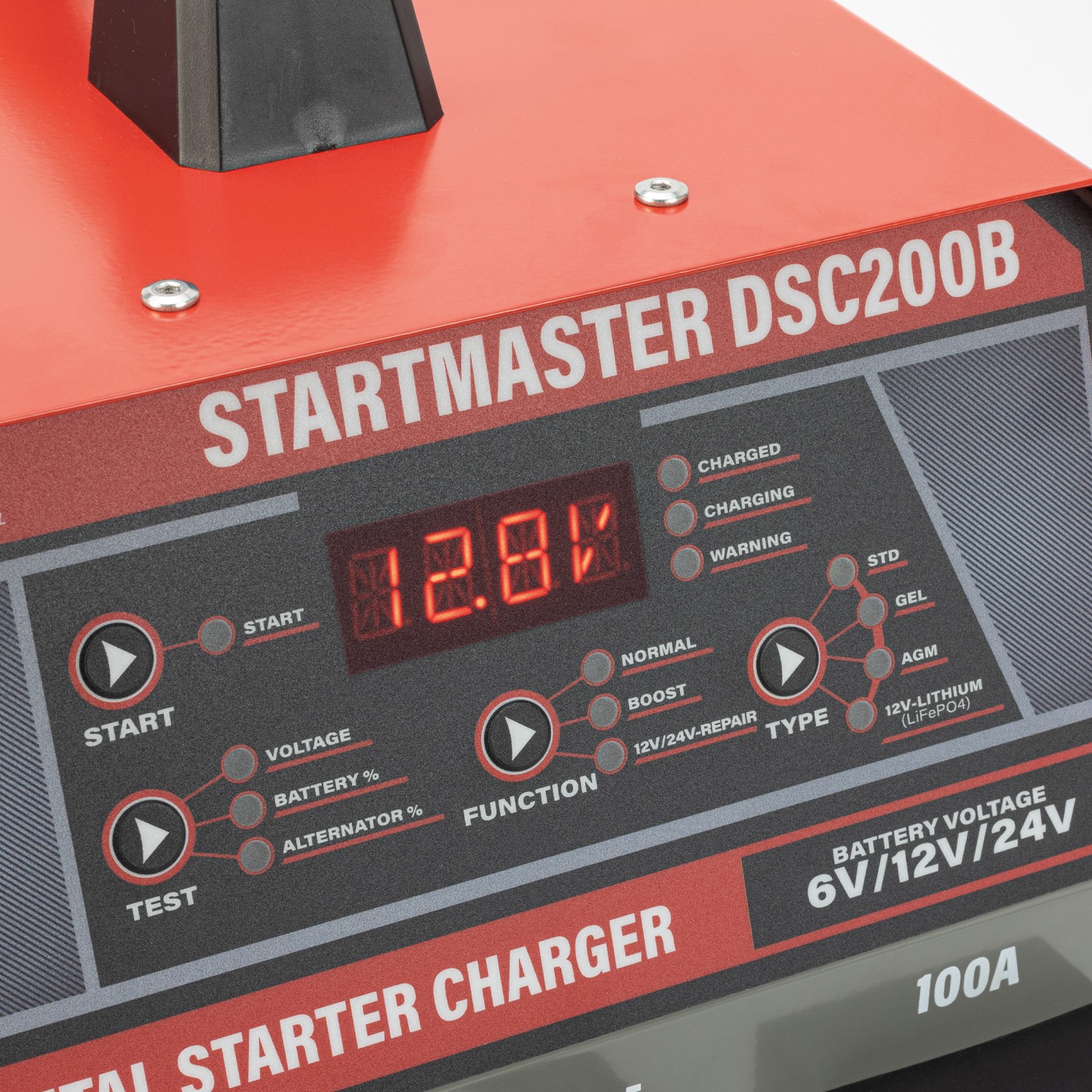

LED display screen and intuitive soft touch control panel to select charge and boost settings.

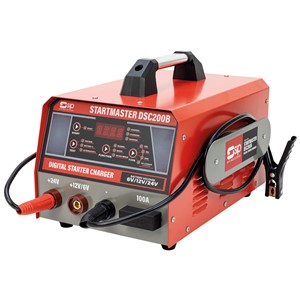

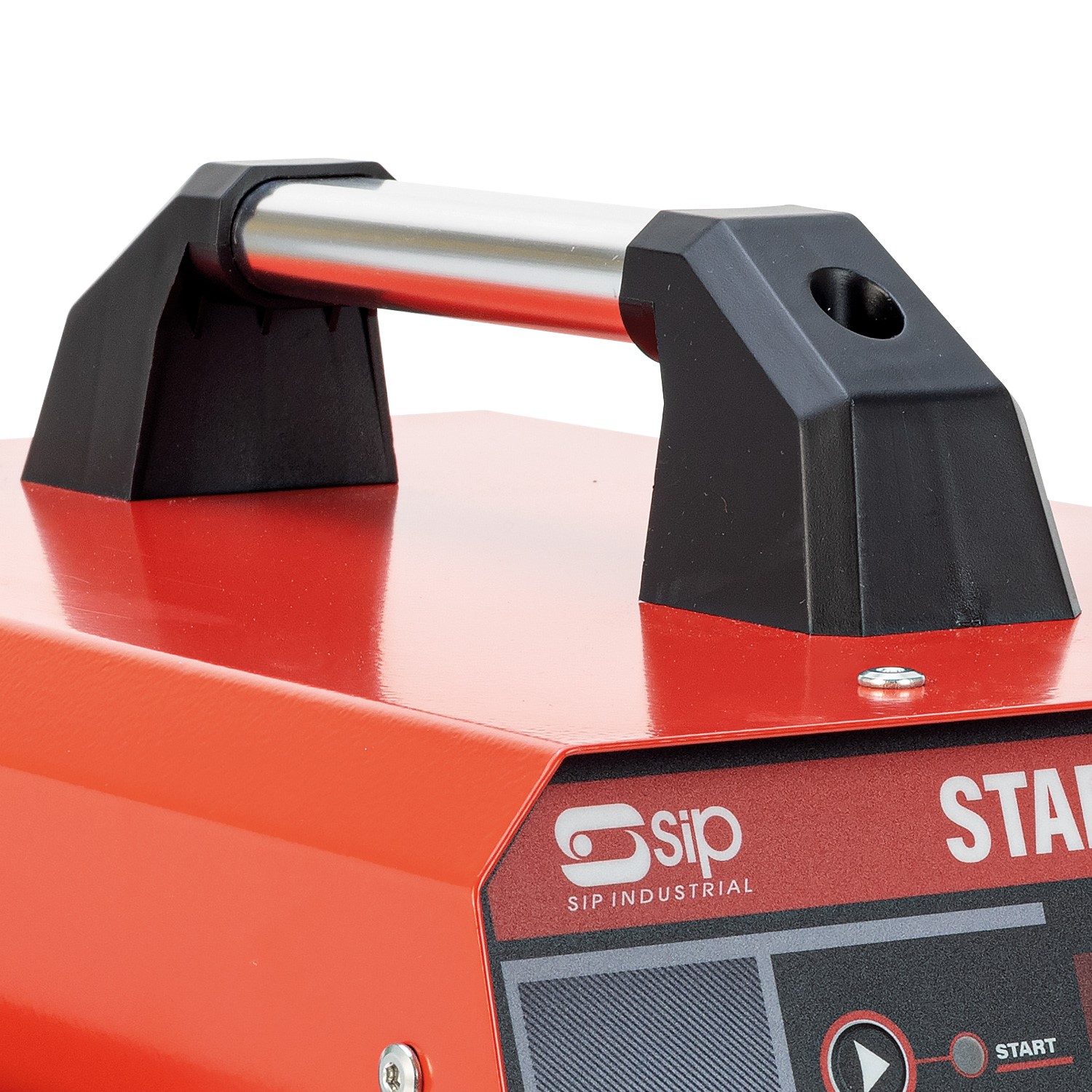

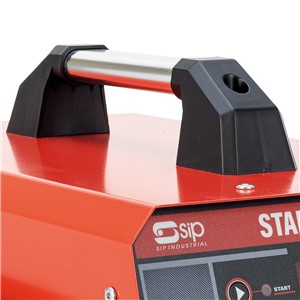

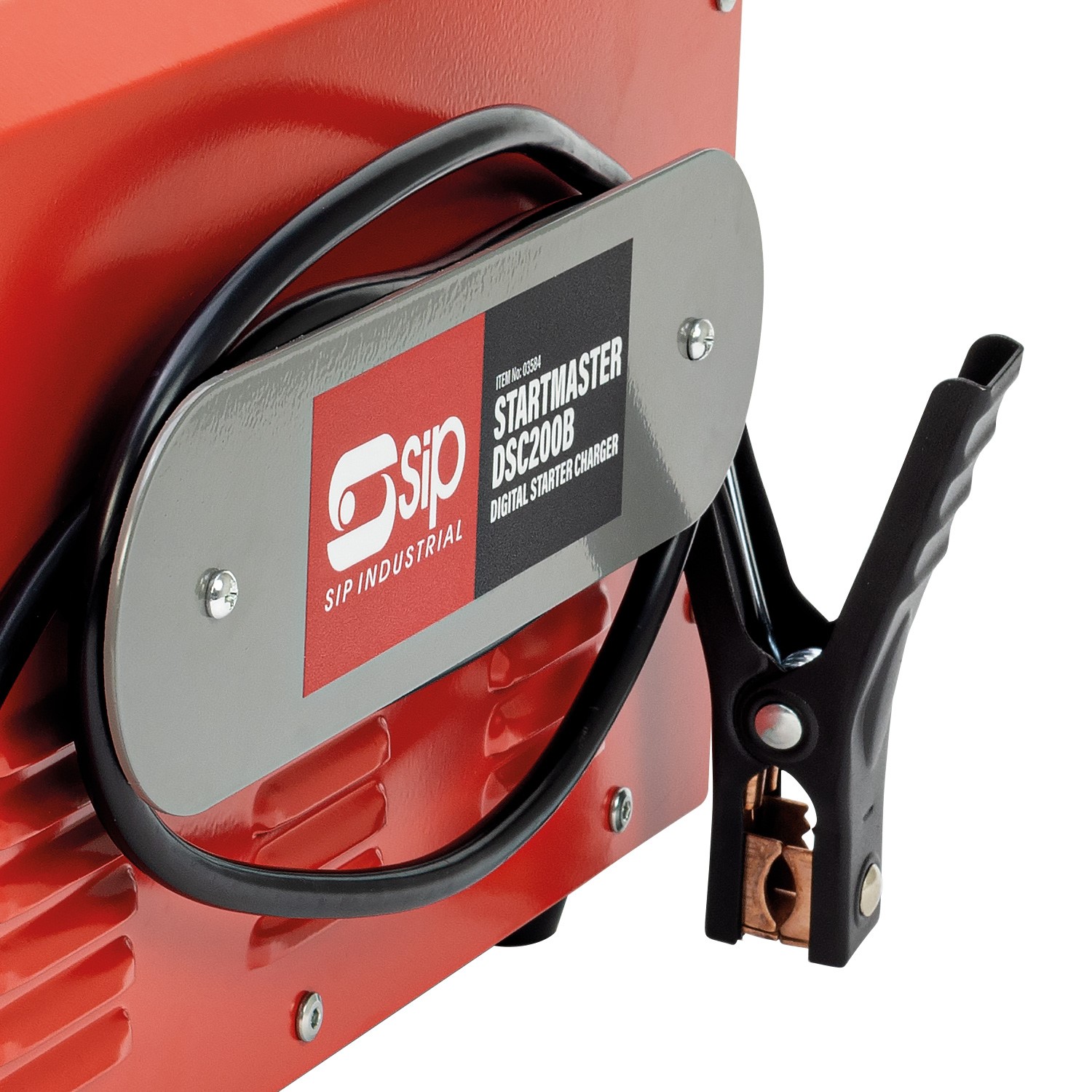

Fitted with cable tidy brackets and carry handle for easy movement between use.

Built-in safety and protection features maximise user safety
Anti-spark system prevents sparks when connecting the clips to the battery terminals.

Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.

Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.

Technical Information

ITEM NO. 03584
Input Supply: 230v 50Hz
Battery Voltage: 6v / 12v / 24v
Functions: 10-Stage Charging, Boost & Support
CHARGING
Battery Types: All 6v/12v/24v Lead Acid
12v 4-cell Lithium-Ion LiFePO4
Charging Input: Continuous; 1000w / 4A
Recommended Plug (not supplied): 230v (13A)
Charging Current: 5A (6v) / 10A (12v) / 10A (24v)
Boost Charging Current (5min max.): 25A (6v) / 25A (12v) / 20A (24v)
Battery Capacity: 350Ah
JUMP START
Start Voltage: >1v
Start Input (5sec): 4.5kW / 20A
Recommended Plug (not supplied): 230v (32A)
Fuse: 100A
Max. Start Current: 200A (fully discharged battery)
150A (medium charged battery)
Protection / Ambient Temperature: IP20 / 0°C - 20°C
Net Weight: 11.50kg
Gross Weight: 12.30kg
Product Dimensions: 204(H) x 265(W) x 409mm(D)
Packaged Dimensions: 293(H) x 315(W) x 458mm(D)
