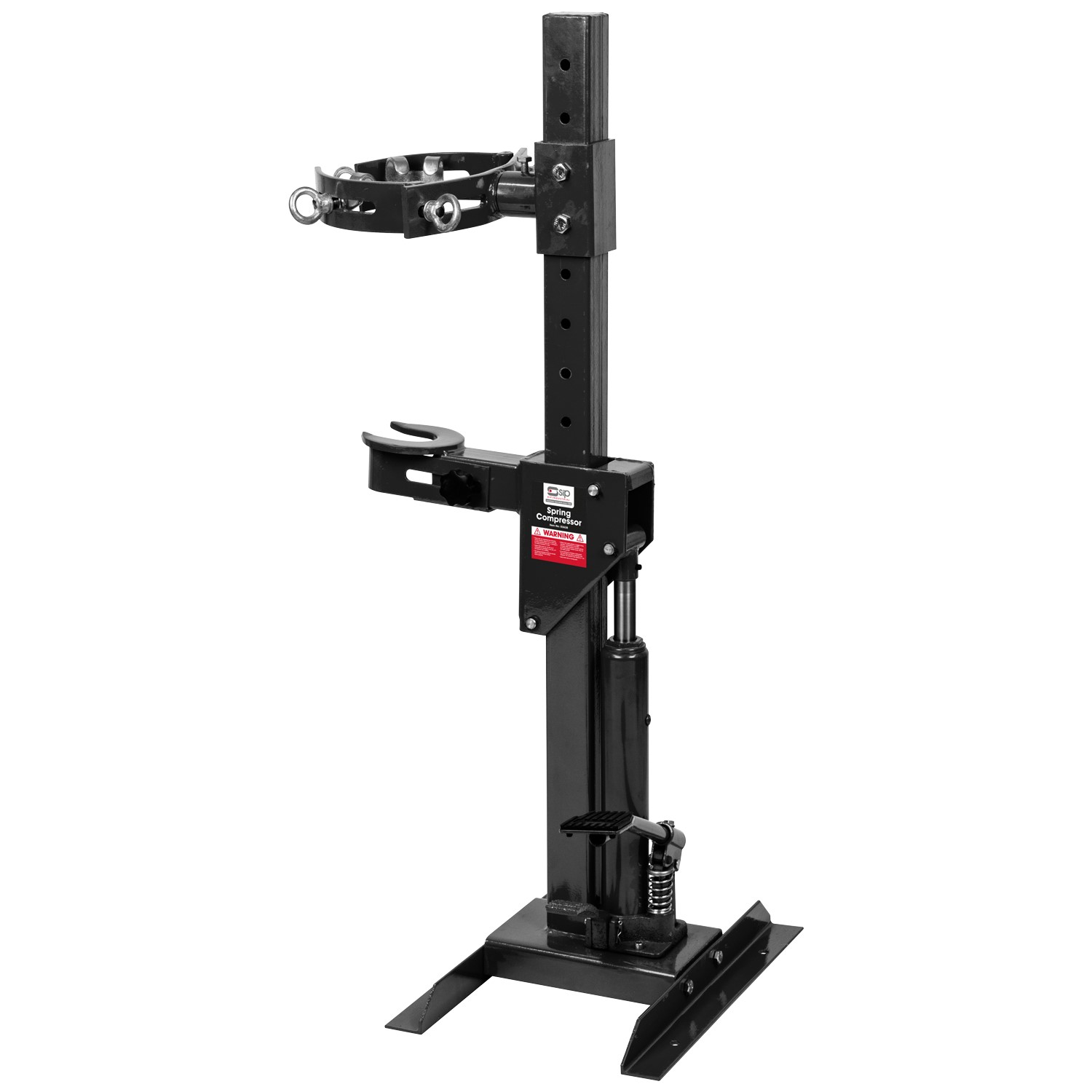

SIP Spring Compressor

03638

SIP Spring Compressor03638SIP Spring CompressorSIP Spring CompressorSIP Spring CompressorSIP Spring Compressor
03638
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The SIP Spring Compressor offers heavy-duty compression up to 1000kg (2204lb) within a compact space-saving design, ideal for garage and workshop environments where floor space is limited. This compressor is ideal for springs between ⌀ 4" and 10".

Unlike other spring compressors available on the market, the SIP Spring Compressor puts operator safety first by providing efficient, safe and fast one-person operation.

KEY FEATURES

  •  480mm working length and 325mm ram travel
  •  Perfect for spring sizes between ⌀ 4" and 10"
  •  Powerful spring compression up to 1000kg (2204lb)
  •  Fast one-person operation for increased safety
  •  Space-saving, compact yet heavy-duty design
  •  Ideal for spaces with limited floor space

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Spring Compressor offers heavy-duty compression up to 1000kg (2204lb) within a compact space-saving design, ideal for garage and workshop environments where floor space is limited. This compressor is ideal for springs between ⌀ 4" and 10".

Unlike other spring compressors available on the market, the SIP Spring Compressor puts operator safety first by providing efficient, safe and fast one-person operation.

This compressor is ideally suited for removing and installing coil springs on vehicle suspension systems including on cars, vans and trucks.

  • 480mm working length and 325mm ram travel
  • Perfect for spring sizes between ⌀ 4" and 10"
  • Powerful spring compression up to 1000kg (2204lb)
  • Fast one-person operation for increased safety
  • Space-saving, compact yet heavy-duty design
  • Ideal for spaces with limited floor space
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 03638
Max. Compression: 1000kg (2204lb)
Spring Size Range: Min. Ø 4" (101mm)
Max. Ø 10" (254mm)
Working Length: 480mm
Ram Travel: 325mm
Net Weight: 30.90kg
Gross Weight: 32.90kg
Product Dimensions:
Packaged Dimensions: 170(H) x 295(W) x 1220mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
No extended details available.
