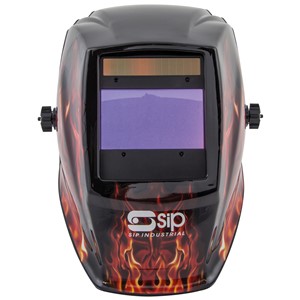

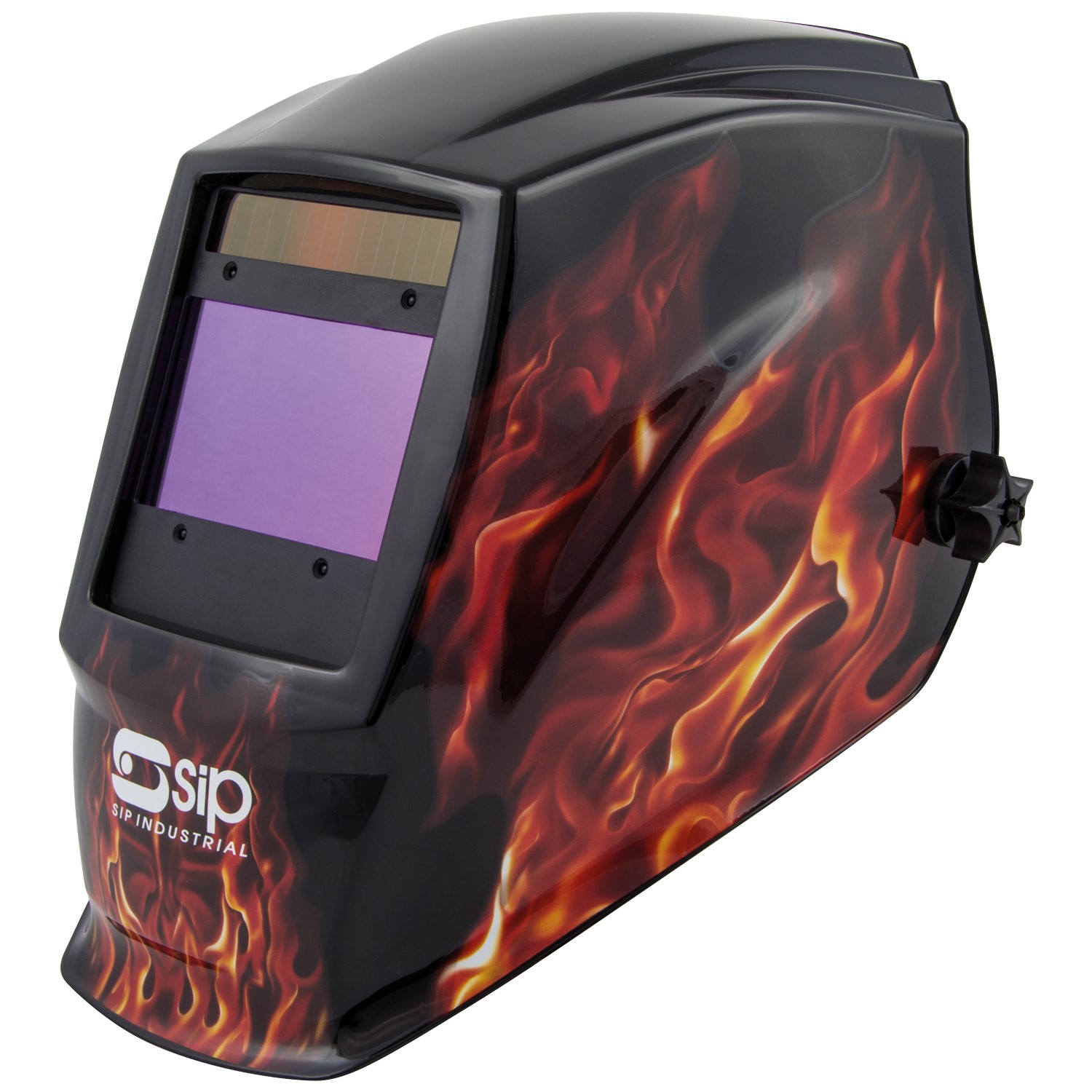

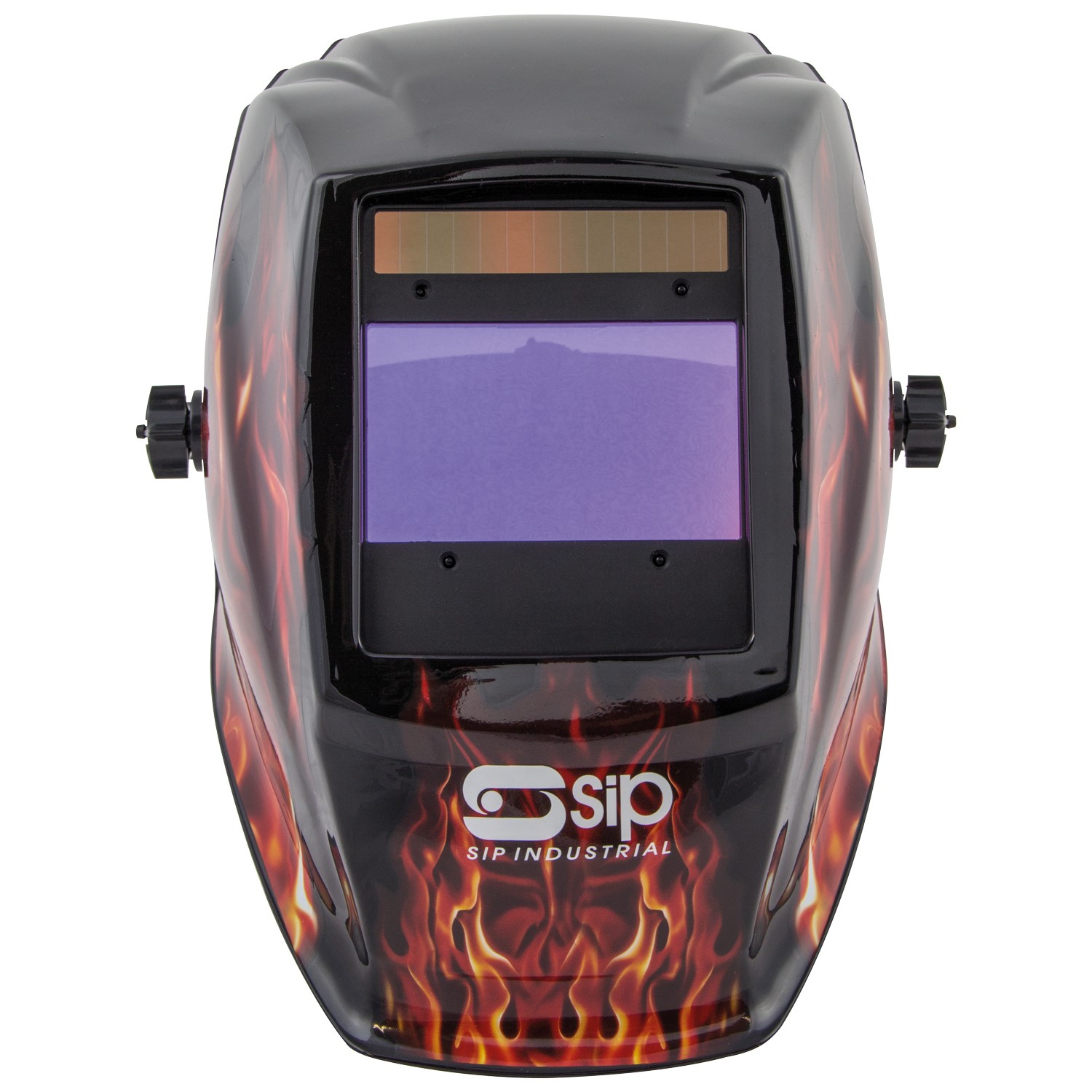

SIP METEOR 2300F Electronic Headshield

02886

SIP METEOR 2300F Electronic Headshield02886SIP METEOR 2300F Electronic HeadshieldSIP METEOR 2300F Electronic Headshield
02886
Product thumbnail.
Product thumbnail.

The SIP METEOR 2300F Electronic Welding Headshield utilises powerful TRUE COLOUR HD LCD lens technology for enhanced detail and weld clarity, plus adjustable SHADE settings for versatility in a range of welding, plasma and grinding applications.

Ideal for a range of home, trade and professional environments.

KEY FEATURES

  • 100mm x 59.5mm large view with TRUE COLOUR HD LCD lens technology
  • Adjustable welding, cutting and grinding SHADE mode settings
  • 1/10,000sec light-to-dark response time for sudden arcs
  • Low shield power warning light and testing function
  • Adjustable padded headband for extended comfort

2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP METEOR 2300F Electronic Welding Headshield utilises powerful TRUE COLOUR HD LCD lens technology for enhanced detail and weld clarity, plus adjustable SHADE settings for versatility in a range of welding, plasma and grinding applications.

A lightning fast 1/10,000sec response time offers rapid eye protection from sudden arcs in all welding applications and environments, giving added peace-of-mind to the user, with a test function also providing checks for the electronic shielding functions.

Browse SIP WELDING for more high-quality welding machines and accessories.

  • 100mm x 59.5mm viewing area with TRUE COLOUR HD LCD lens technology for enhanced details and weld clarity for a better welding experience
  • 1/10,000sec light-to-dark response time with 4 sensors for rapid eye protection against sudden arcs and added safety when welding
  • Adjustable SHADE settings; DIN 9-13 SHADE for welding, 5-9 SHADE for plasma and 4 SHADE for grinding

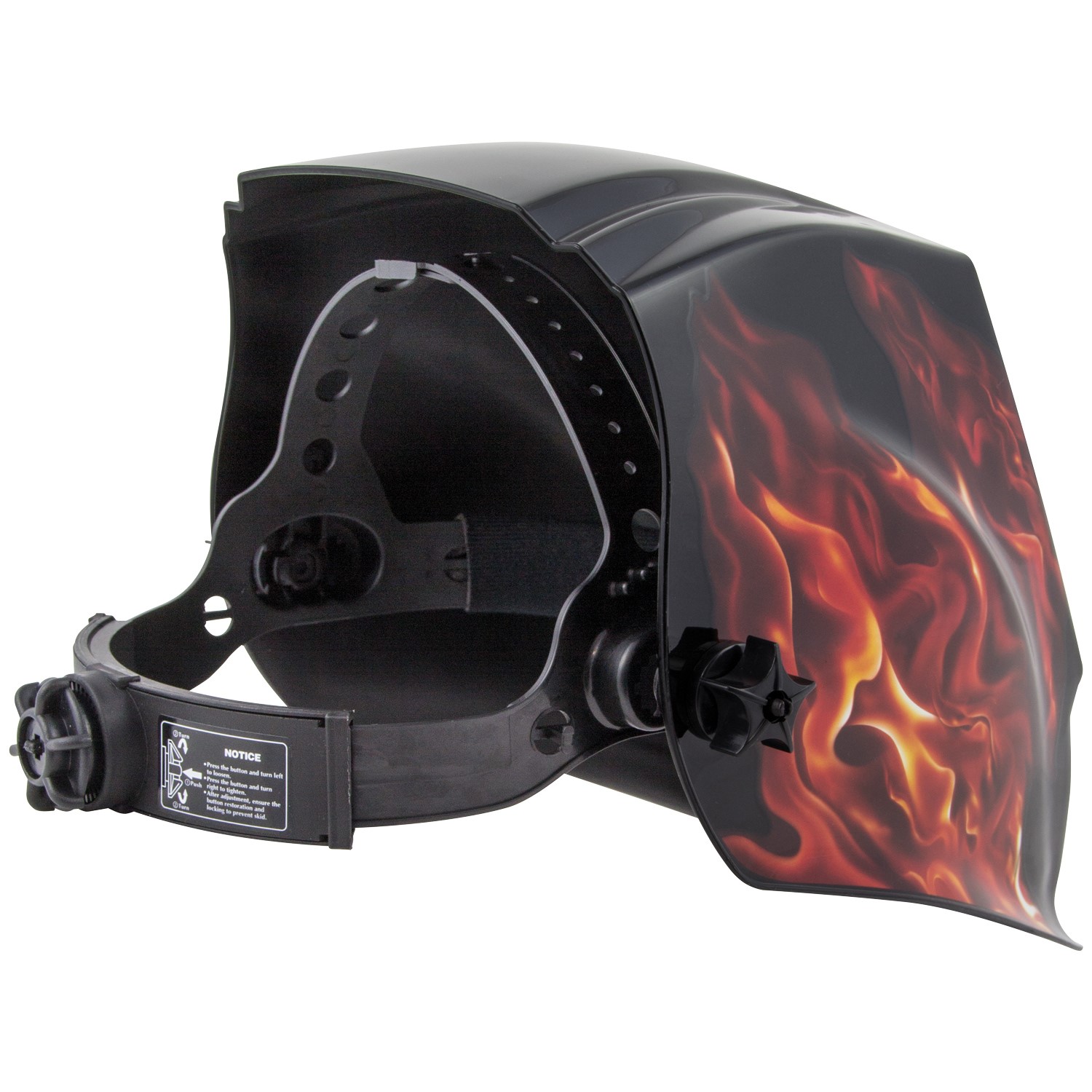

  • Lightweight design with adjustable padded headband for extended comfort
  • Testing button checks electronic shielding functions correctly
  • Integrated low shield power warning light for added safety
  • Powerful via solar panel and two Lithium CR2450 batteries
  • Side-mounted shade dial for convenient shade control
  • Lightweight and compact design
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 02886
Screen Type: SIP Standard
Filter Size: 133mm x 114mm x 10mm
Viewing Area: 100mm x 59.5mm
Outer Protection Lens: 134mm x 114mm
Inner Protection Lens: 105mm x 66mm
Grinding Shade: 4 DIN
Plasma Shade: 5 - 9 DIN
Welding Shade: 9 - 13 DIN
Arc Sensors: 4 sensors
Battery Type: 2x 3v Lithium CR2450
Light-to-Dark Response: 1/10,000sec
Operating Temperature: -20°C - +65°C
Net Weight: 0.62kg
Gross Weight: 0.92kg
Product Dimensions: 190(H) x 245(W) x 380mm(D)
Packaged Dimensions: 285(H) x 255(W) x 260mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.
