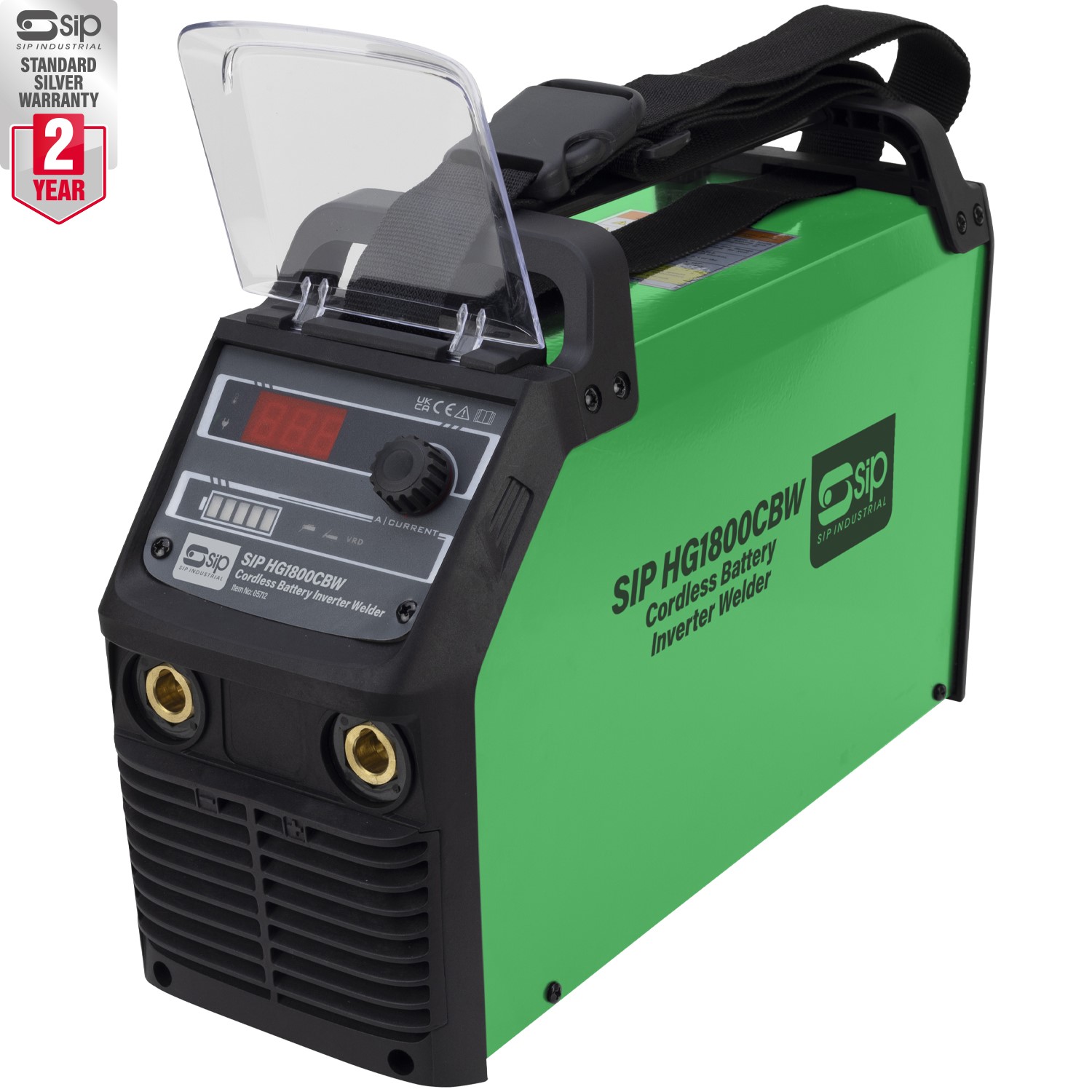

SIP HG1800CBW Battery-Powered Inverter Welder

05712

SIP HG1800CBW Battery-Powered Inverter Welder05712SIP HG1800CBW Battery-Powered Inverter WelderSIP HG1800CBW Battery-Powered Inverter WelderSIP HG1800CBW Battery-Powered Inverter WelderSIP HG1800CBW Battery-Powered Inverter WelderSIP HG1800CBW Battery-Powered Inverter WelderSIP HG1800CBW Battery-Powered Inverter Welder
05712
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

No power? No problem! The SIP HG1800CBW Battery-Powered Inverter Welder provides 180A of powerful and portable welding current in a lightweight and compact design weighing just 11.6kg, utilising the latest inverter technologies.

Perfect for welding applications in remote locations, construction sites, and wherever mains electricity supplies are not available.

KEY FEATURES

  • 3 Welding Modes: MMA (ARC), MMA (ARC) with VRD, and Lift-TIG
  • Digital Display: easy-to-read battery power monitor and indicator
  • Inverter Technology: latest technology with integrated Lithium-Ion battery pack
  • Quality Welding: produces high-quality ARC and TIG welds from one charge
  • High Durability: manufactured with heavy-duty casing and visor

2-Year Standard Silver Warranty | Find out more

Full Specification

No power? No problem! The SIP HG1800CBW Battery-Powered Inverter Welder provides 180A of powerful and portable welding current in a lightweight and compact design weighing just 11.6kg, utilising the latest inverter technologies to give you high-quality ARC/MMA and TIG welding from a single charge.

Perfect for welding in remote locations, construction sites, and wherever no mains electricity supply is available.

Supplied with 3mtr 25mm2 electrode lead, Earth lead, and over-shoulder carry strap.

Browse SIP WELDING for more high-quality welding machines and accessories.

  • 3 Welding Modes: MMA (ARC), MMA (ARC) with VRD, and Lift-TIG
  • Digital Display: easy-to-read battery power monitor and indicator
  • Inverter Technology: latest technology with integrated Lithium-Ion battery pack
  • Quality Welding: produces high-quality ARC and TIG welds from one charge
  • High Durability: manufactured with heavy-duty casing and visor
  • Compact Design: lightweight for simple portability in demanding applications
  • Autonomous Welding: welds 20 x 2.5mm, 14 x 3.2mm, and 6 x 4mm rods
  • Fast Charging: fully recharges in as little as 1.5hrs
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 05712
Battery Type: Lithium-Ion*


*Ensure a discharge/recharge cycle is performed every 3 months. Always keep welder battery above 50% charge when not in use.

Battery Capacity: 740Wh
Charger Voltage: 230v AC +/- 10%
Charging Time: 1.5hrs
Battery Output Voltage: 74v
Charging Current: 8A
Welding Current Range: 10A - 180A (MMA) / 10A - 150A (TIG)
Duty Cycle: 180A @ 10% / 130A @ 20% / 60A @ 100%
Net Weight: 11.60kg
Gross Weight: 13.00kg
Product Dimensions: 280(H) x 150(W) x 440mm(D)
Packaged Dimensions 450(H) x 280(W) x 550mm(D)
Welding Rod / Ø Electrode: 2.5mm x 300mm 3.2mm x 350mm 4mm x 450mm
Charger Voltage: 20 rods @ 85A 14 rods @ 115A 6 rods @ 160A
