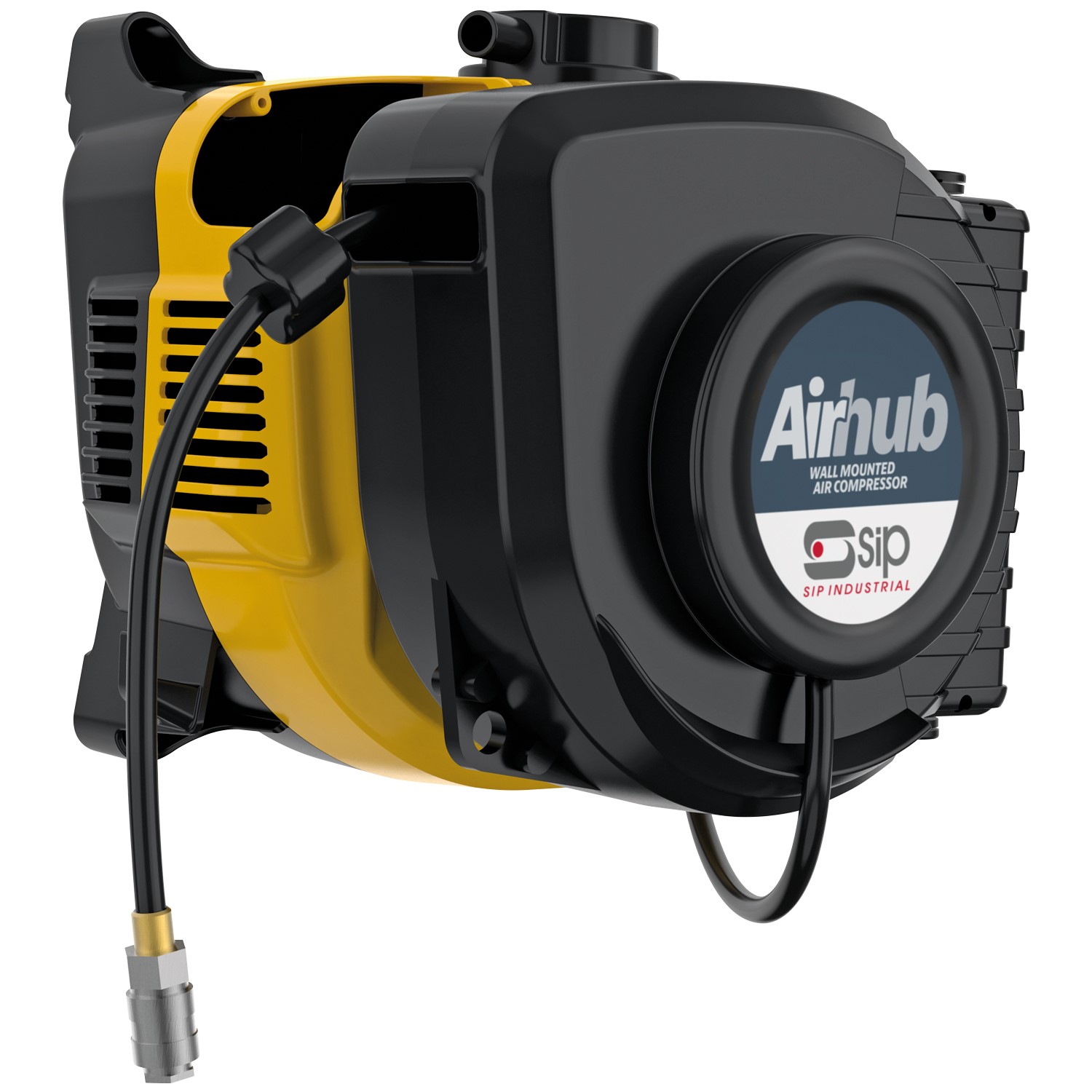

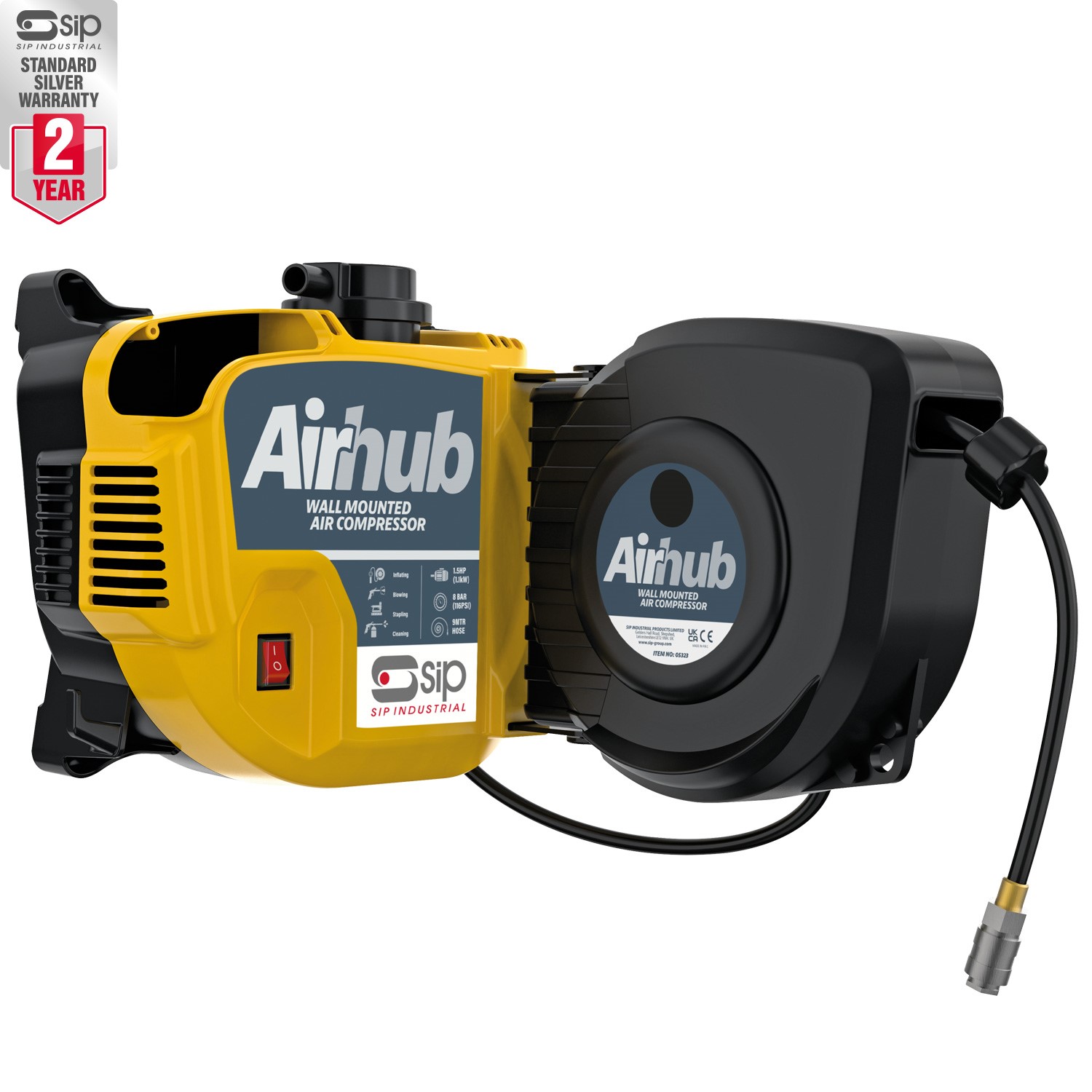

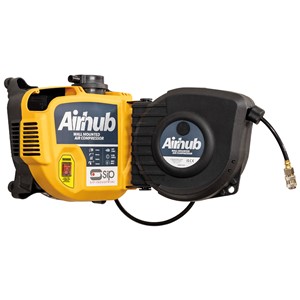

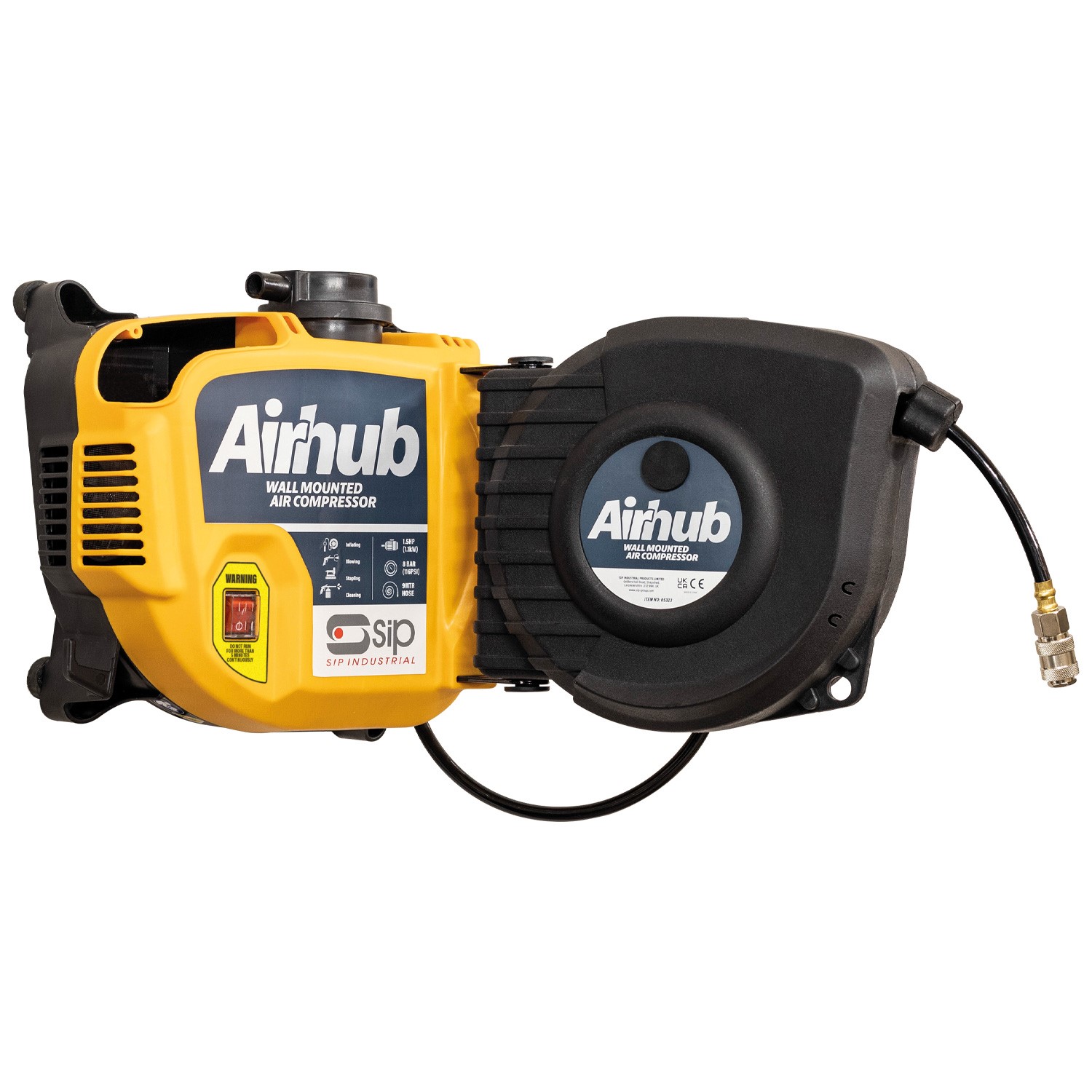

SIP AirHub Wall-Mounted Direct Drive Compressor

05323

Click on image to enlarge

SIP AirHub Wall-Mounted Direct Drive Compressor

05323

The SIP AirHub Wall-Mounted Direct Drive Compressor is a low-noise wall-mounted air compressor that provides a quick and easy solution for a variety of uses around the garage and home workshop, bringing compressed air capability in a convenient way.

In a compact. space-saving and easy-to-install design, AirHub delivers 8bar pressure to a 9mtr self-retracting hose reel, whilst the wall-mount bracket offers 180° rotation.

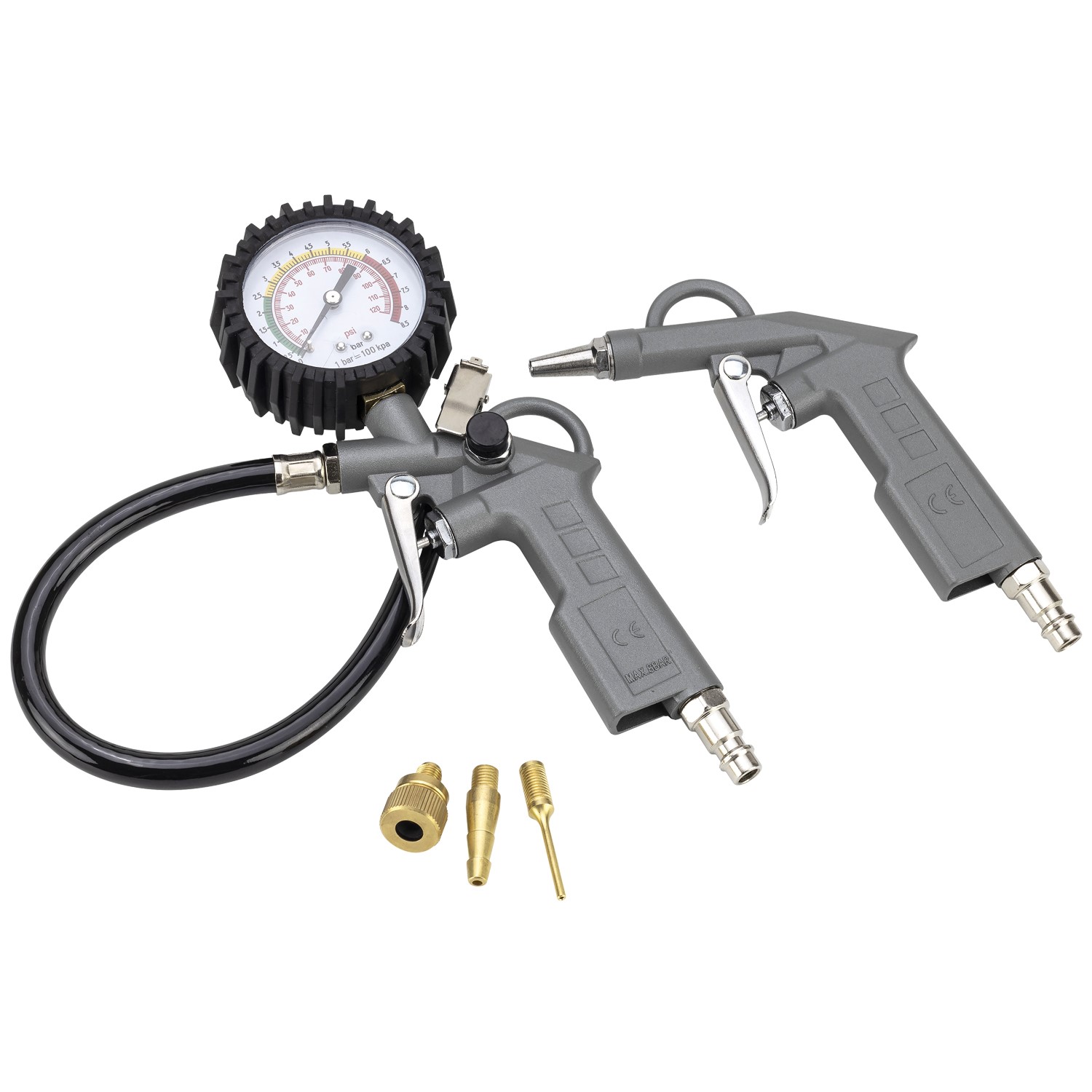

The 5pc air kit allows a variety of uses including tyre inflation on race and mountain bikes, motorbikes, and cars, plus blowing down chippings, swarf and workshop residue.

KEY FEATURES

6.3CFM piston displacement and 4.2CFM Free Air Delivery (FAD)

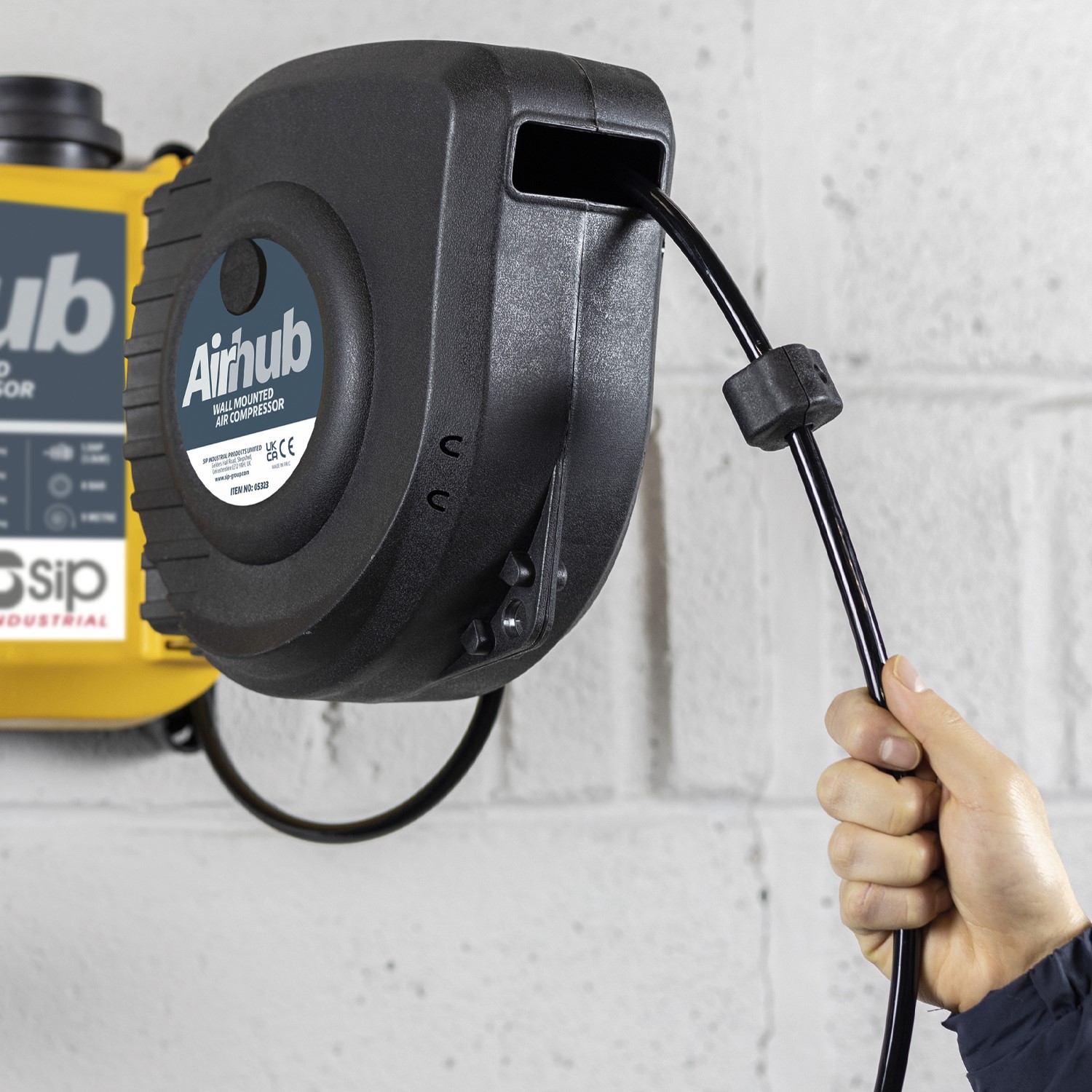

Low noise wall-mounted air compressor with 9mtr retracting hose
Compact design provides 8bar pressure in handy space-saving format
Quick and easy-to-use design with versatile 180° hose rotation
Robust reliable sturdy body houses a fully-enclosed pump and hose reel
Lightweight easy-to-install for quick installation on walls or bulkheads

SIP 2-Year Standard Silver Warranty* | Find out more

BUY NOW

Full Specification

The SIP AirHub Wall-Mounted Direct Drive Compressor is a low-noise wall-mounted air compressor that provides a quick and easy solution for a variety of uses around the garage and home workshop, bringing compressed air capability in a convenient way.

In a compact. space-saving and easy-to-install design, AirHub delivers 8bar pressure to a 9mtr self-retracting hose reel, whilst the wall-mount bracket offers 180° rotation.

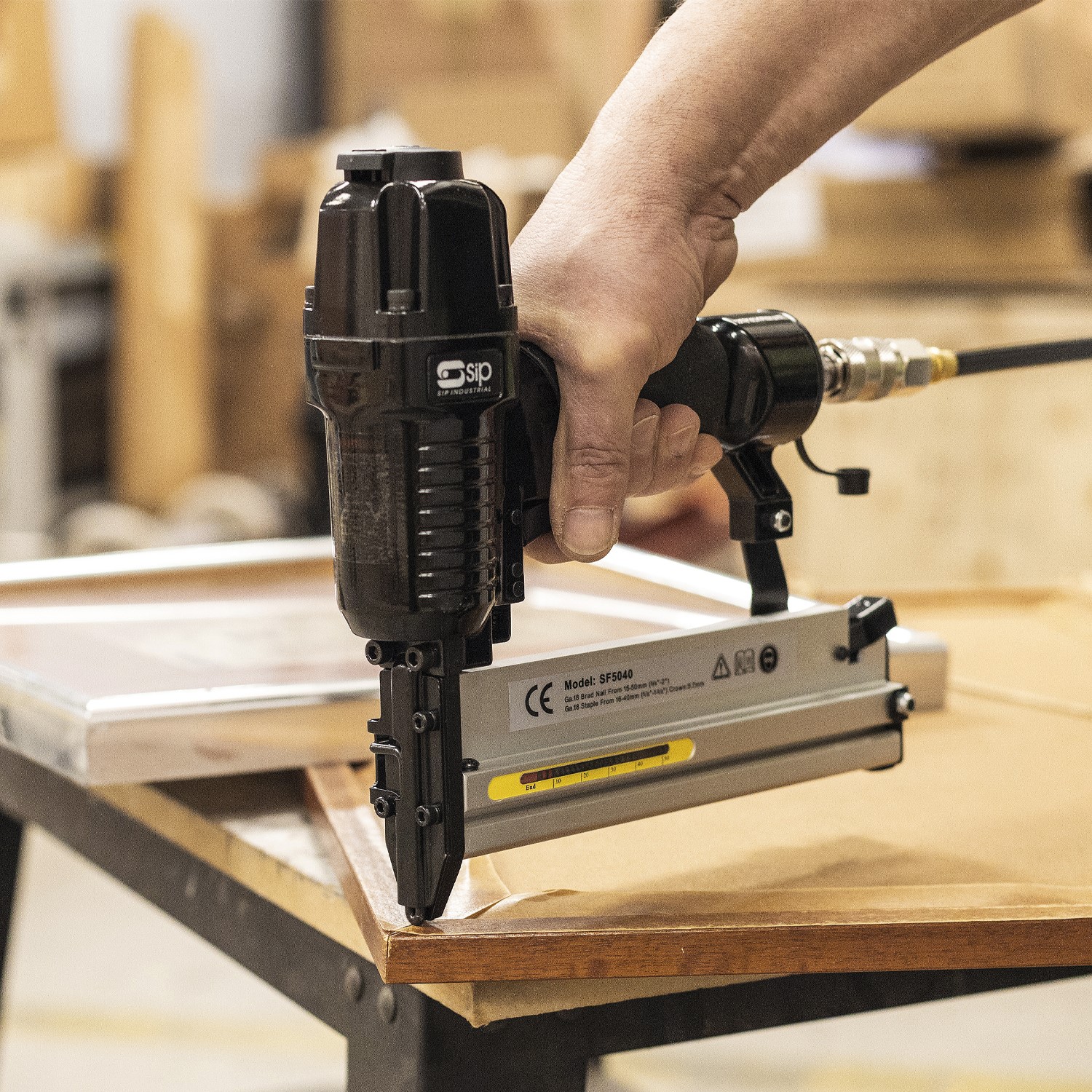

The 5pc air kit allows a variety of uses including tyre inflation on race and mountain bikes, motorbikes, and cars, plus blowing down chippings, swarf and workshop residue. Other applications, with SIP Air Tools sold separately, include cleaning, nailing/stapling, airbrushing and spraying.

Applications & uses: Ideal for garages and workshops for uses including tyre inflation on race and mountain bikes, motorbikes and cars, plus blowing down chippings, swarf and workshop residue.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

WALL-MOUNTED DIRECT DRIVE AIR COMPRESSOR

Low noise and wall-mounted air compressor with long 9mtr retracting hose.

COMPACT DESIGN

Provides 8bar pressure in a handy space-saving format.

QUICK & EASY USE

180° hose rotation for added versatility.

ROBUST & RELIABLE

Sturdy body houses a fully-enclosed pump and hose reel.

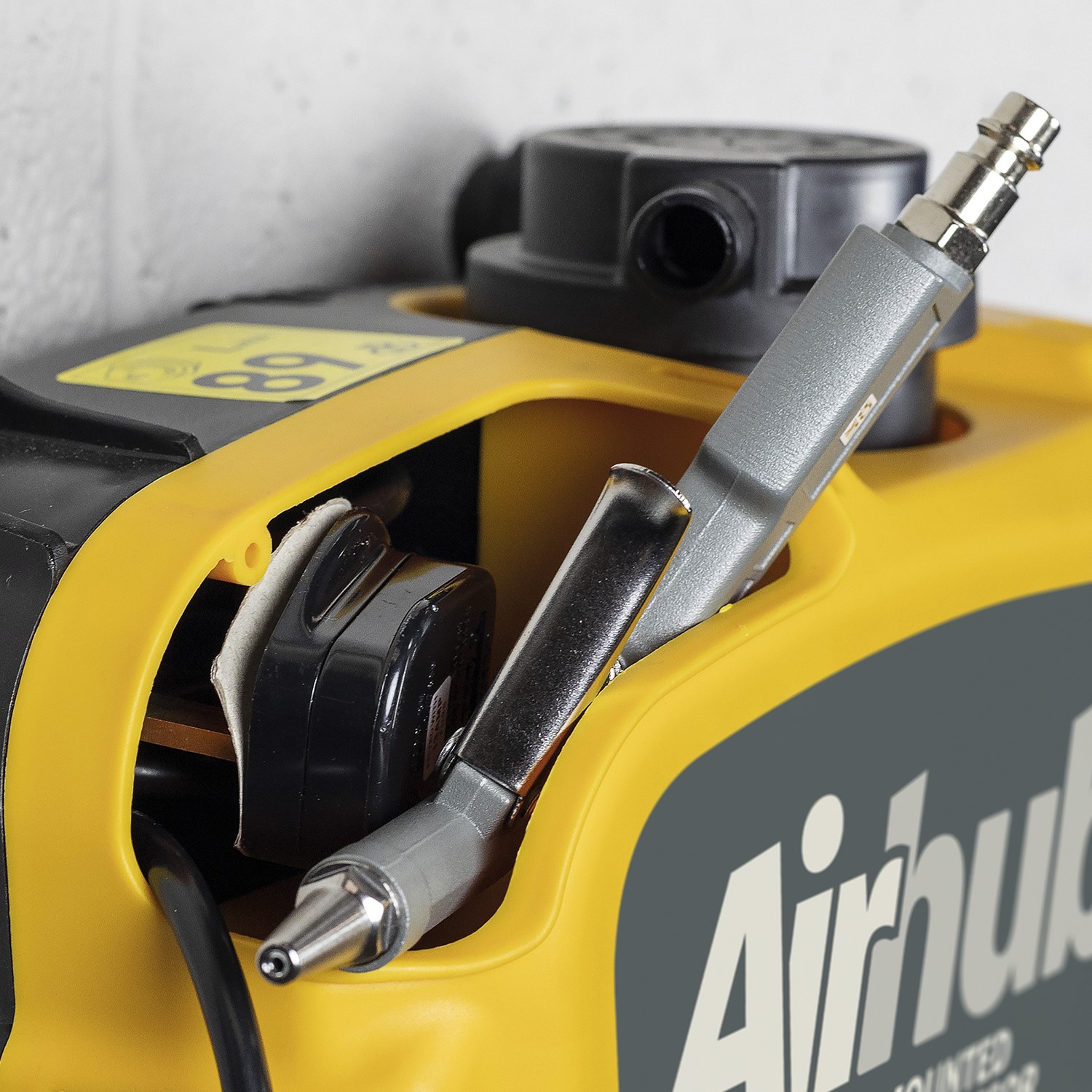

Integrated mains cable and accessory storage as well as side hook.

OILLESS TECHNOLOGY

Maintenance-free and environmentally-friendly oil-free performance.

QUICK INSTALLATION ON WALLS & BULKHEADS

Lightweight and easy-to-install on walls or bulkheads.

ADDITIONAL FEATURES

Quick-release female coupler for added ease-of-use.

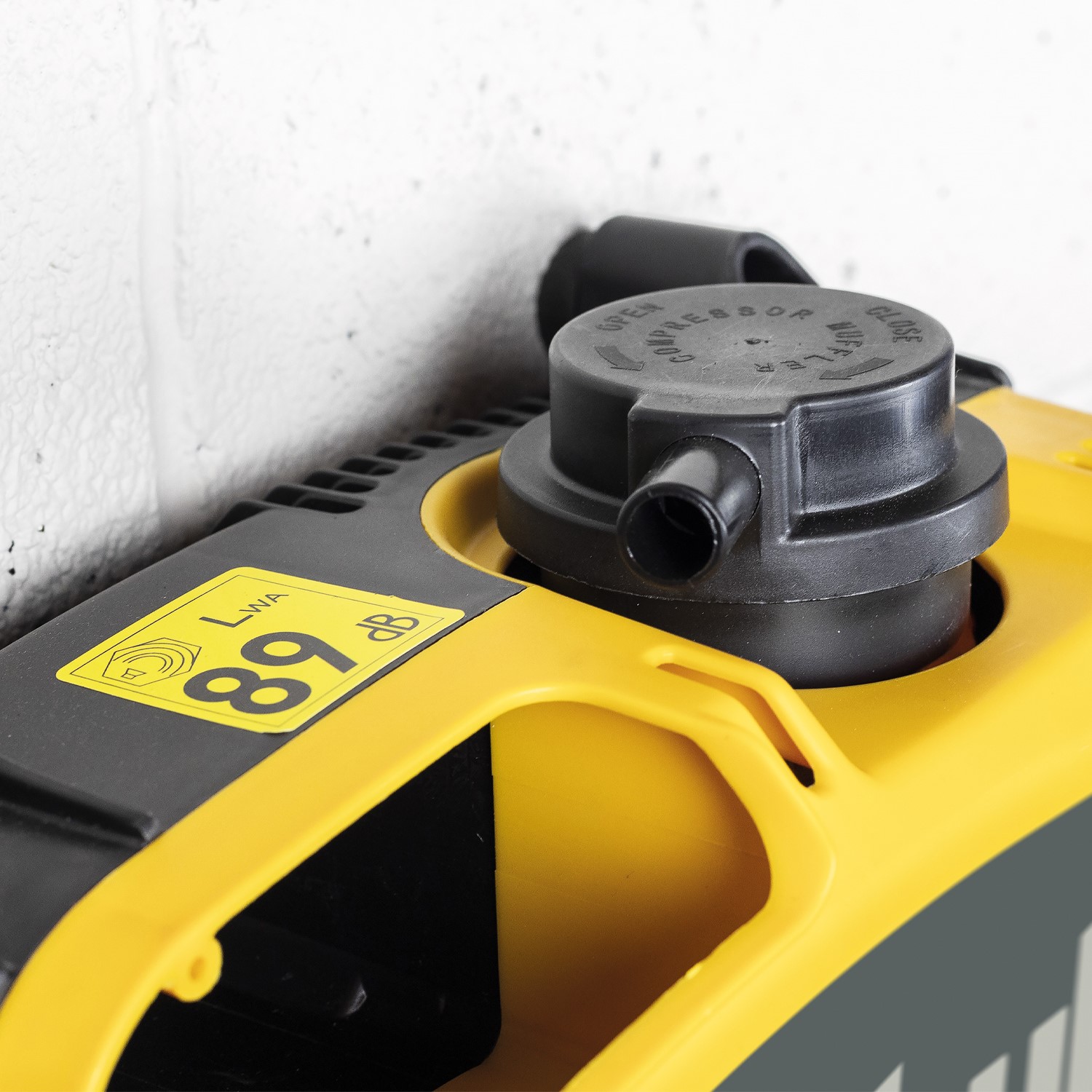

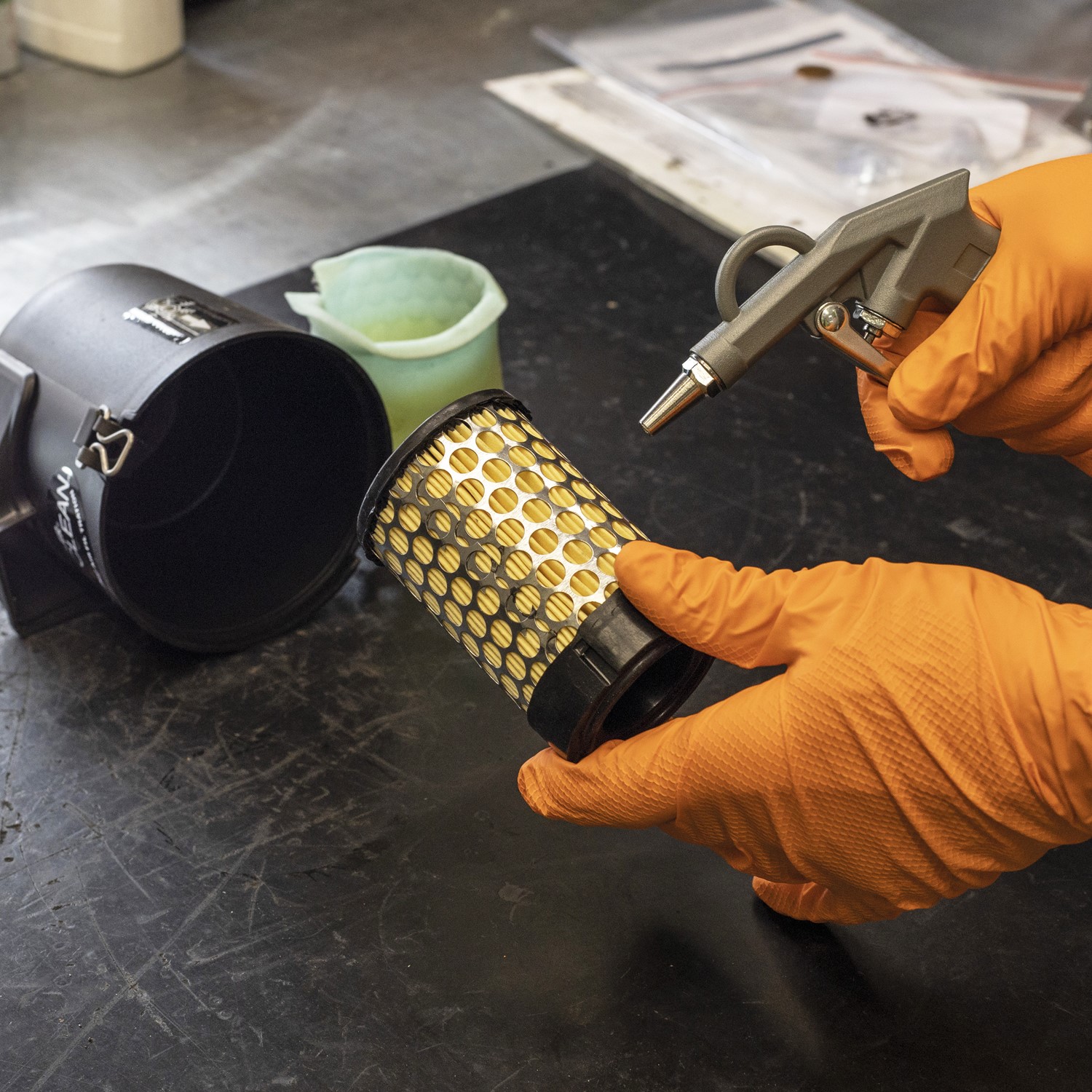

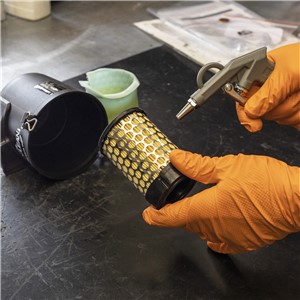

Quick-access air filter for easy and quick maintenance.
Fitted with automatic blow-off safety valve.

Product Video

Technical Information

NOTE: Do not run for more than 5 minutes continuously.

ITEM NO.	05323
Input Supply:	230v 50Hz
Motor Power:	1.5hp (1.1kW)
Motor Speed:	2000rpm
Max. Pressure:	116psi (8bar)
Lubrication:	None
Pump Type:	OL197
Air Displacement:	6.30CFM (178ltr/min)
Free Air Delivery (FAD):	4.20CFM (120ltr/min)
Noise Level:	69dB
Net Weight:	7.20kg
Gross Weight:	8.00kg
Product Dimensions:	300(H) x 300(W) x 300mm(D)
Packaged Dimensions:	305(H) x 305(W) x 305mm(D)
