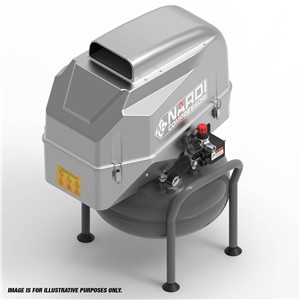

NARDI EXTREME 2.00HP 4-POLE 50ltr Compressor

EXTSS50204

NARDI EXTREME 2.00HP 4-POLE 50ltr Compressor
EXTSS50204

The NARDI EXTREME 2.00HP 4-POLE 50ltr Super Silenced Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low or medium pressure and low or medium flow applications.

KEY FEATURES

  • Low noise design perfect for noise critical situations
  • Lightweight, compact, and highly portable framed design
  • V-Twin cylinder; direct drive crankshaft via motor shaft
  • High-quality oil-free pump for long life and low maintenance
  • Air intake particle diffusion for reduced air contamination
  • Stainless steel fan-shaped valves for added durability

SIP 3-Year Standard Silver Warranty | Find out more

Full Specification

The NARDI EXTREME 2.00HP 4-POLE 50ltr Super Silenced Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low or medium pressure and low or medium flow applications.

Browse NARDI Compressors for more specialist compressor solutions.

  • Powerful 4-pole brushless induction motor
  • Low noise design perfect for noise critical situations
  • Lightweight, compact, and highly portable framed design
  • V-Twin cylinder; direct drive crankshaft via motor shaft
  • High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
  • Concentric big end bearings for reduced vibration and increased pump life
  • Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
  • Fan-shaped stainless steel valves provide long life and durability
  • Forced air cooling for an extended runtime and performance
  • Pressure cut-off switch and adjustable air regulator
  • SIP 3-Year Standard Silver Warranty
  • Manufactured in Italy

Technical Information

ITEM NO. EXTSS50204
Input Supply: 230v (13A)
Motor Power: 1.10kW (1.50hp) 4-POLE 1400rpm
Receiver Size: 50ltr
Piston Displacement: 12.40CFM (351ltr/min)
Free Air Delivery (FAD): 8.68CFM (248ltr/min)
Max. Air Pressure: 145psi (10bar)
No. of Cylinders: 2 cylinders
Noise Level: 62dB(A)
Net Weight: 88.50kg
Gross Weight: 90.00kg
Product Dimensions: 820(H) x 500(W) x 720mm(D)
Packaged Dimensions: 840(H) x 520(W) x 770mm(D)
