SIP 10 TON Long Floor Jack

03647

SIP 10 TON Long Floor Jack03647SIP 10 TON Long Floor JackSIP 10 TON Long Floor JackSIP 10 TON Long Floor JackSIP 10 TON Long Floor Jack
03647
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

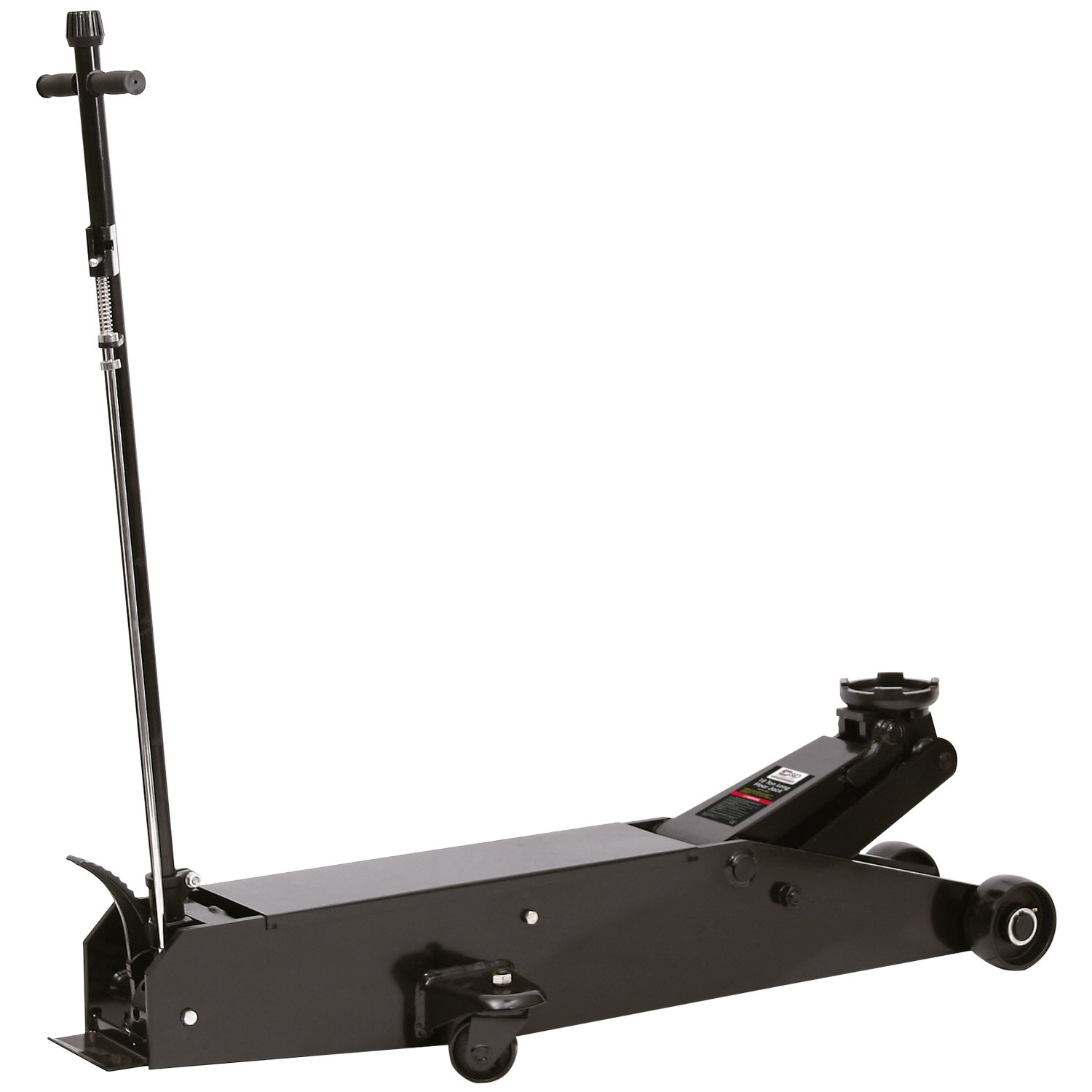

The SIP 10 TON Long Floor Jack is perfect for gaining easier access under larger and heavier vehicles, including vans, trucks, buses, and construction or agricultural machinery, offering powerful performance from a robust and stable steel-manufactured design.

A Quick-Lift system, operated by the integrated foot pedal, helps reduce user fatigue by raising the saddle to the lifting point quickly and efficiently.

KEY FEATURES

  •  160mm to 560mm adjustable lifting height
  •  Manufactured from heavy-duty and durable steel
  •  Extra-long design for easier access under large vehicles

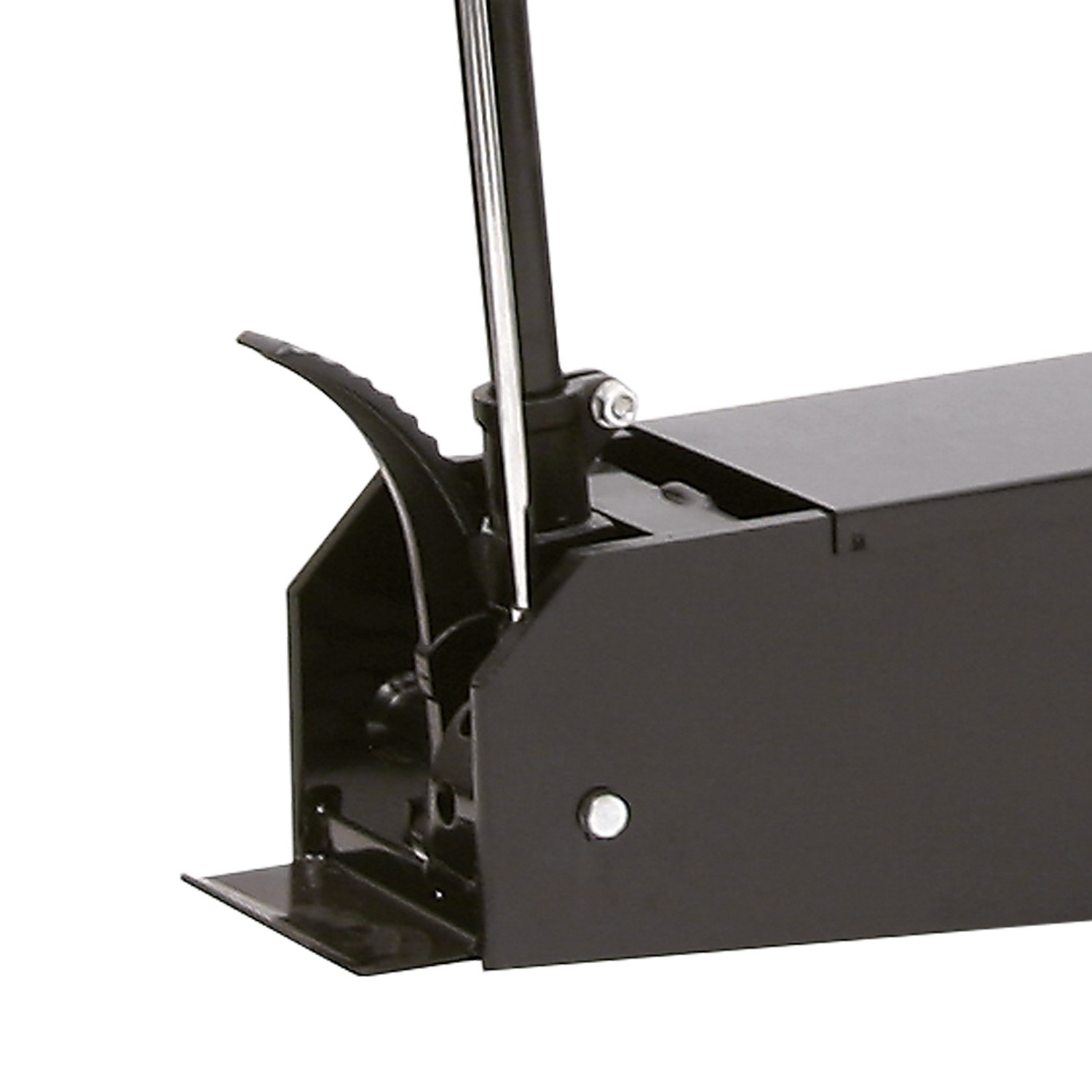

  •  Quick-Lift foot pedal system raises the saddle efficiently

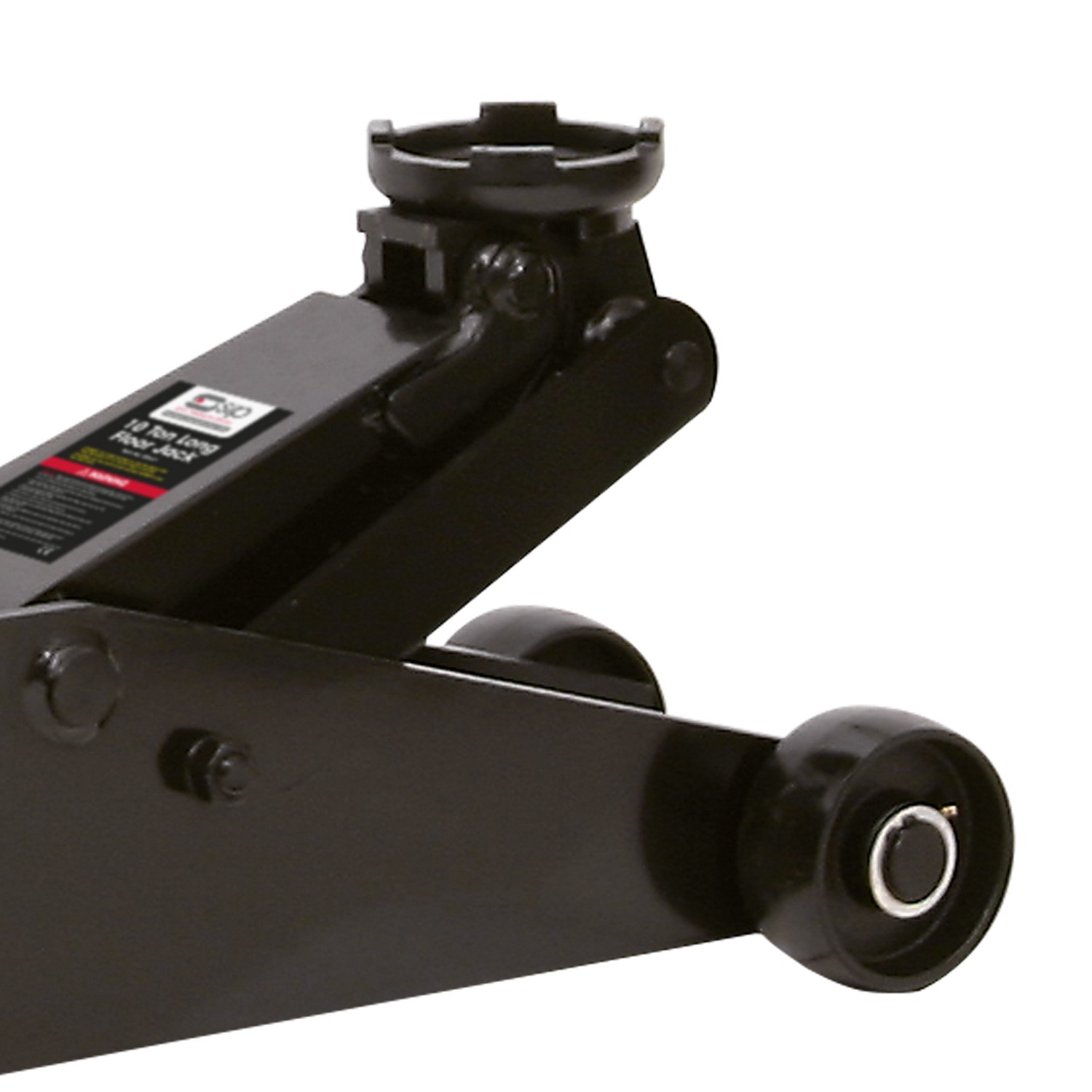

  •  Large 150mm contact saddle for secure load contact
  •  Built-in release knob and integrated handle lock

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 10 TON Long Floor Jack is perfect for gaining easier access under larger and heavier vehicles, including cars, SUVs, vans, trucks, trailers and more, offering powerful and reliable performance from a robust and stable steel-manufactured design.

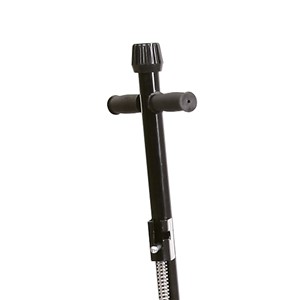

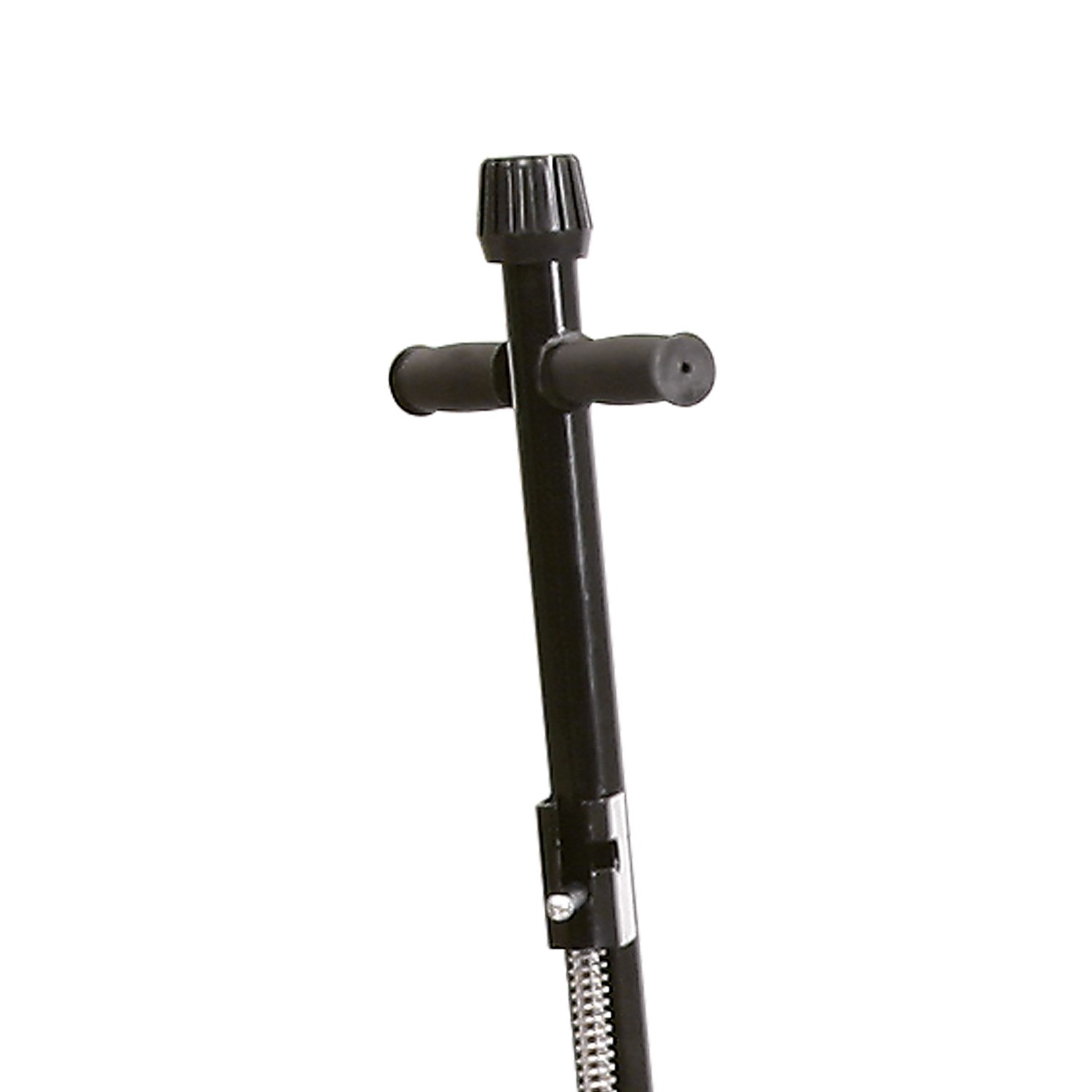

This is achieved by an extra-long design complete with long handle, ensuring that regardless of vehicle size, the jack can be positioned for powerful and secure lifting. For added manoeuvrability, it is fitted with a rear toe plate and large wheels and castors.

An integrated Quick-Lift system, operated via foot pedal, is designed to reduce the user effort exerted by quickly, safely and efficiently raising the saddle to the lifting point.

For optimal user safety, the 10 TON Long Floor Jack is built with a release knob to help lower any vehicles slowly in a controlled manner, and handle lock to prevent the jack from accidentally disengaging, reducing the risk to the operator.

  • 10 TON maximum weight capacity
  • 160mm to 560mm adjustable lifting height
  • Extra-long design for easier access under larger vehicles
  • Quick-Lift foot pedal system raises the saddle efficiently
  • Large 150mm contact saddle for secure load contact
  • Built-in release knob and integrated handle lock
  • Integrated rear toe plate for easy positioning

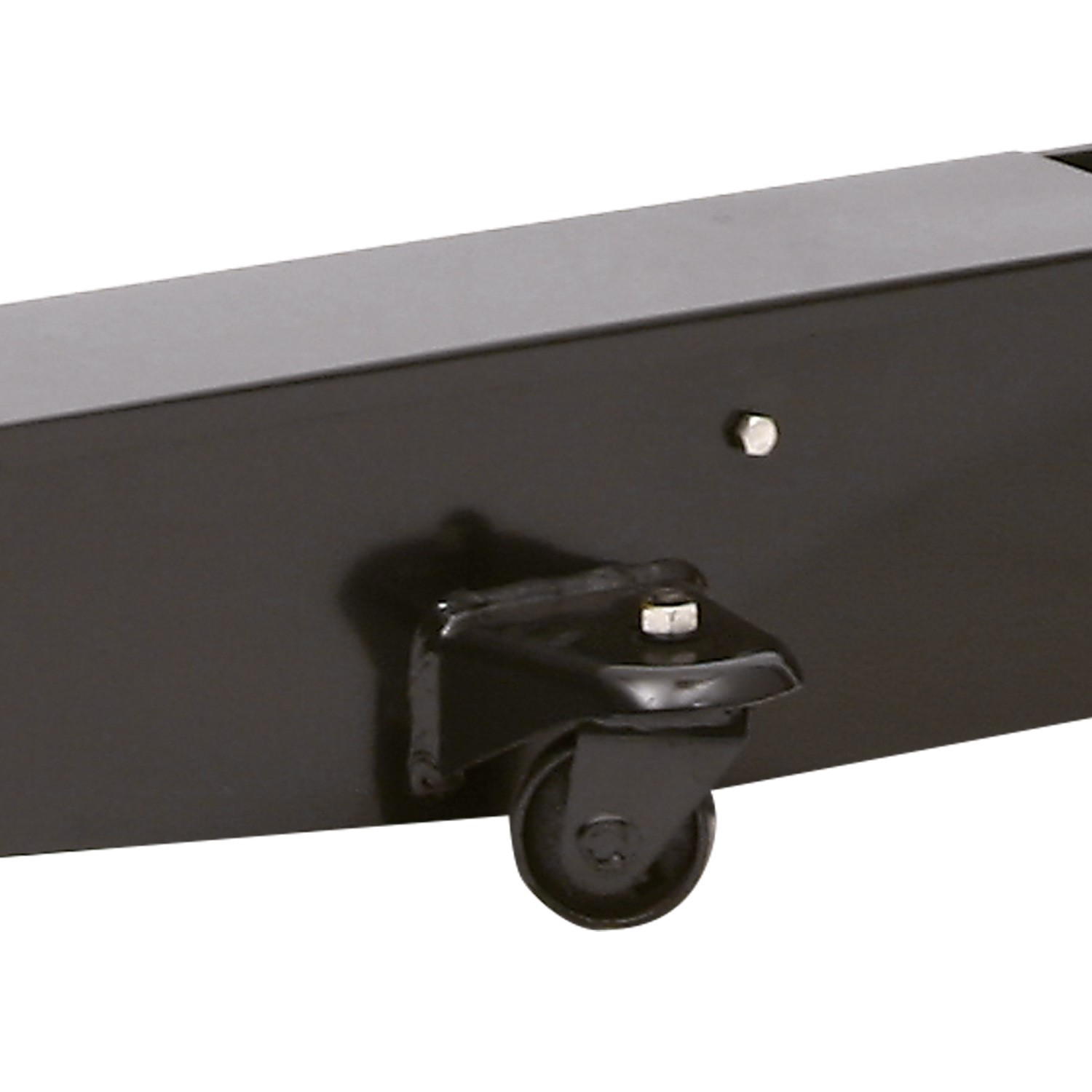

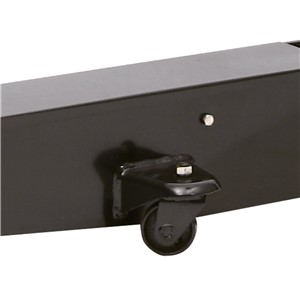

  • Large wheels and castors for manoeuvrability
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 03647
Weight Capacity: 10 TON
Min. Lifting Height: 160mm
Max. Lifting Height: 560mm
Manufactured From: Steel
Quick-Lift System: Yes
Safety Bypass: No
Saddle Size: 150mm
Net Weight: 128.50kg
Gross Weight: 144.70kg
Product Dimensions:
Packaged Dimensions: 300(H) x 1640(W) x 355mm(D)
