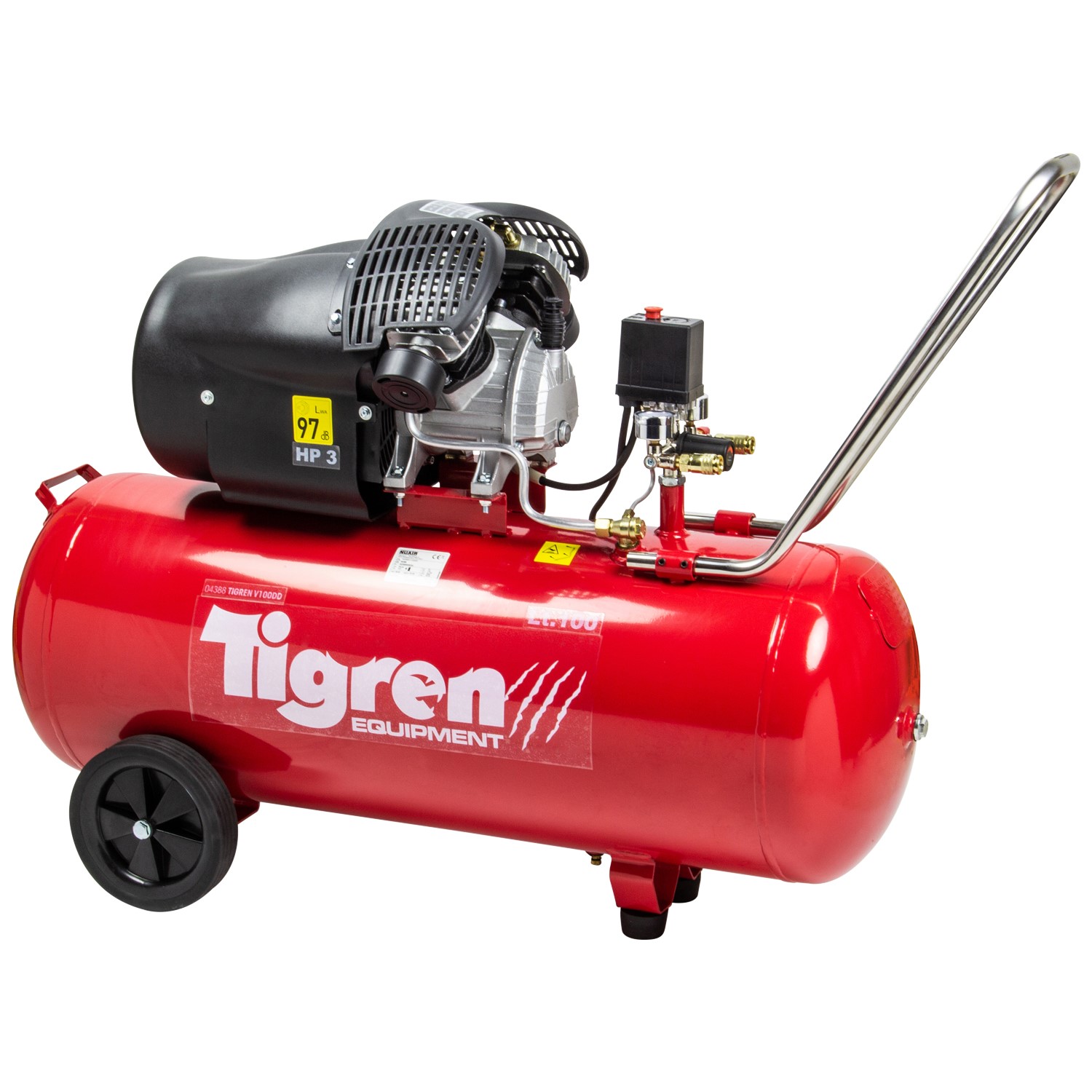

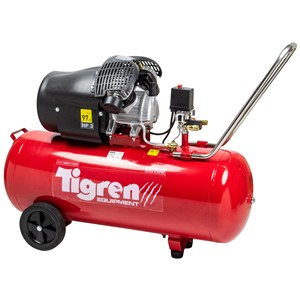

TIGREN V100DD 3HP Direct-Driven Compressor

04388

TIGREN V100DD 3HP Direct-Driven CompressorTIGREN V100DD 3HP Direct-Driven CompressorTIGREN V100DD 3HP Direct-Driven CompressorTIGREN V100DD 3HP Direct-Driven CompressorTIGREN V100DD 3HP Direct-Driven CompressorTIGREN V100DD 3HP Direct-Driven Compressor
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The TIGREN V100DD 3HP Direct-Driven Compressor utilises a heavy-duty V-configuration pump unit which helps to keep the physical footprint of the compressor minimal, meaning a more compact and lightweight design ensuring easy and effortlessly portability.

Not only is the TIGREN V100DD ready-for-use and ideal for the home user, small garages and workshops, it also caters for portable air requirements in a range of environments.

KEY FEATURES

  • No-nonsense workhorse compressor
  • Direct-driven model that is fully ready-for-use

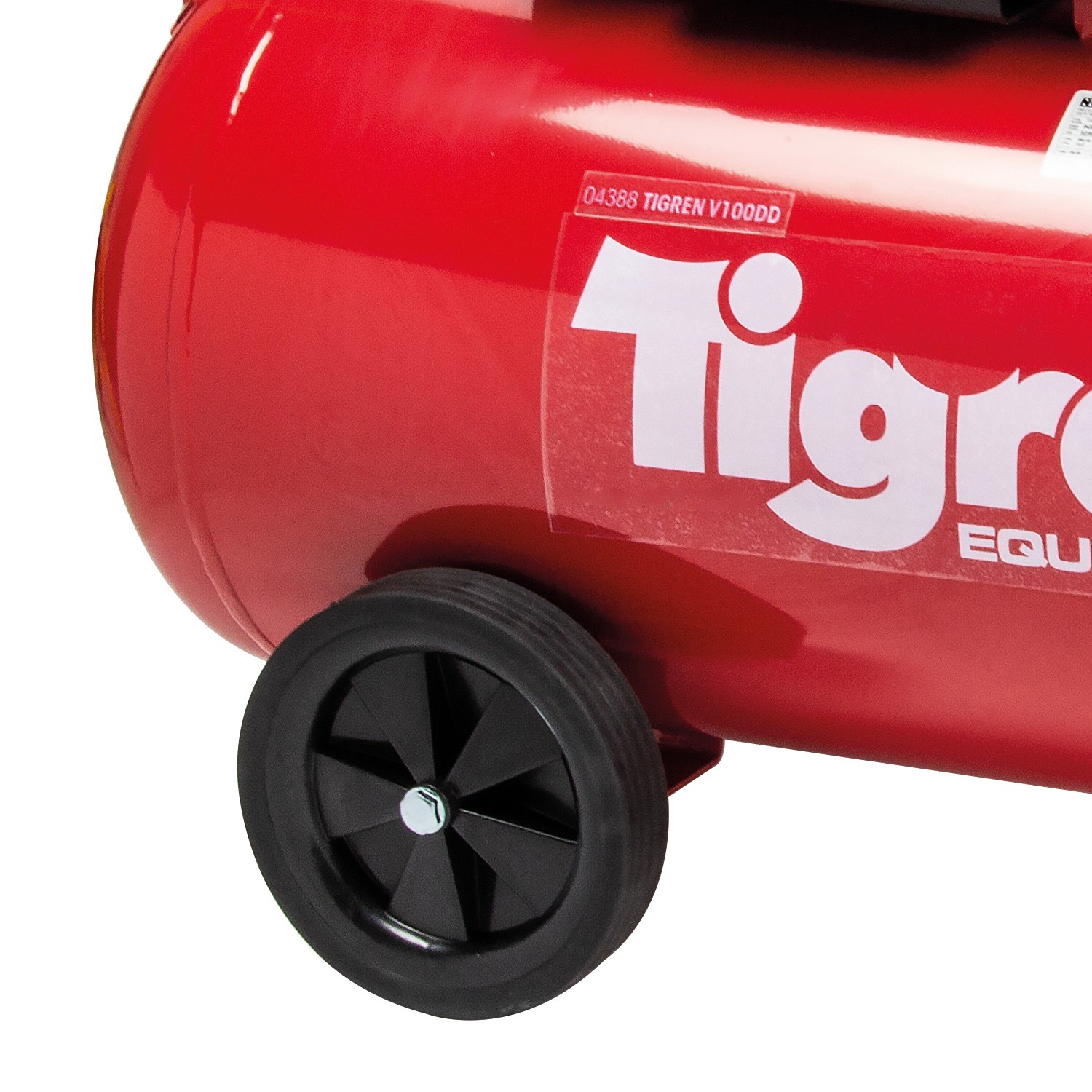

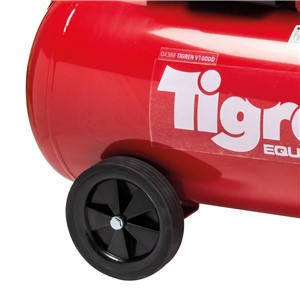

  • Wheel-mounted for easy manoeuvrability and positioning

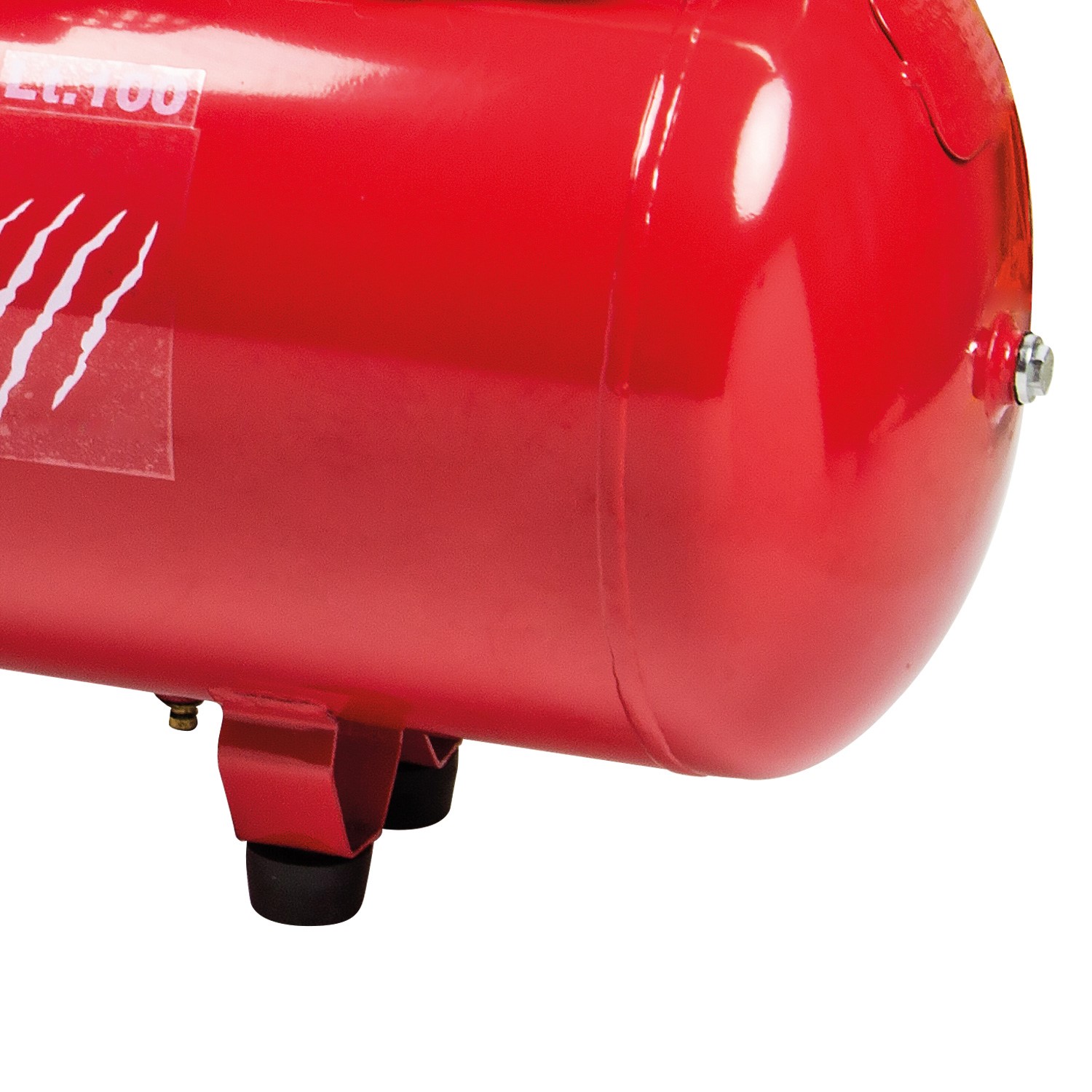

  • Anti-vibration rubber mounts for tank and pump protection

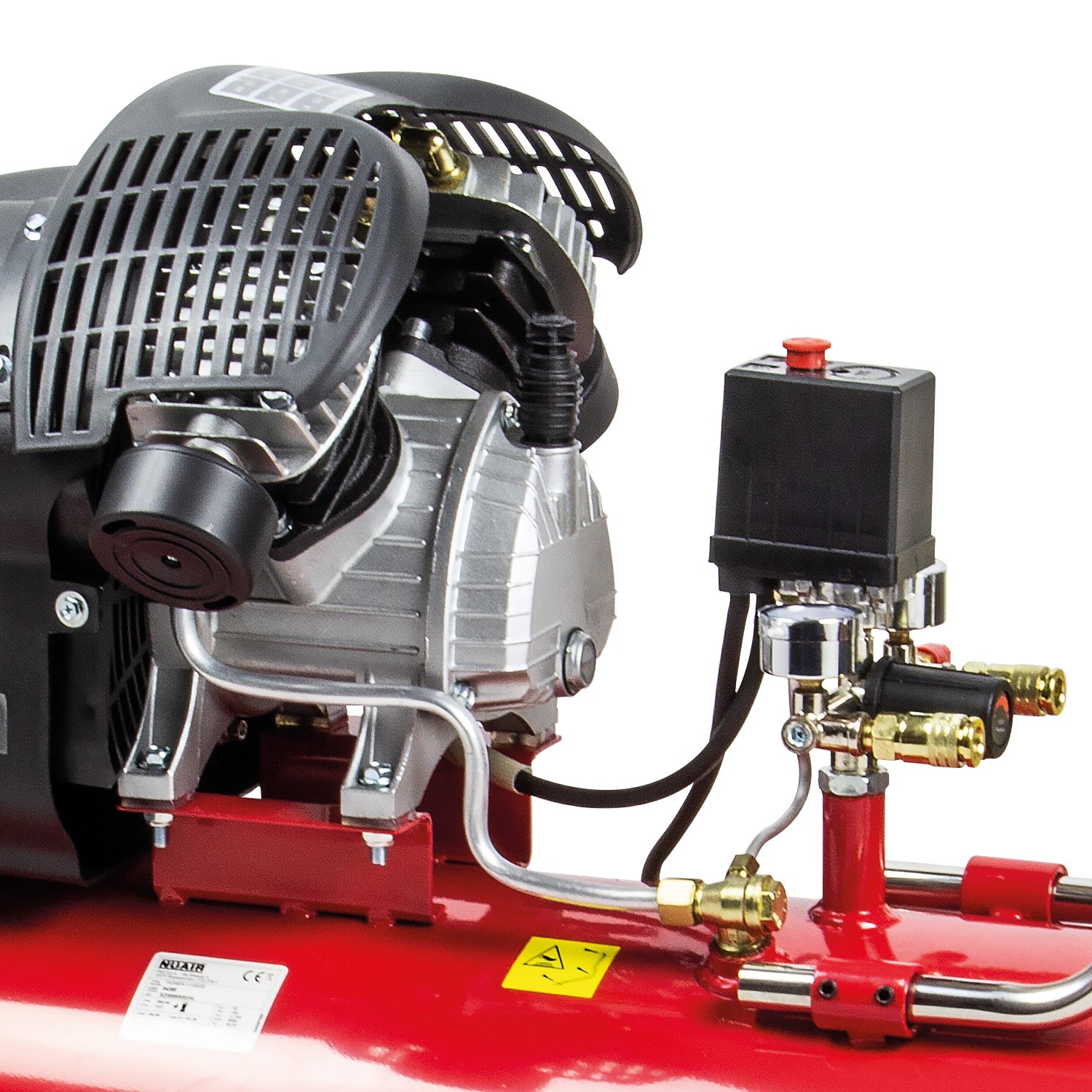

  • 2-cylinder V-configuration splash oil-lubricated pump

Full Specification

The TIGREN V100DD 3HP Direct-Driven Compressor utilises a V-configuration pump unit which helps to keep the physical footprint of the compressor minimal, meaning a more compact and lightweight design ensuring easy and effortlessly portability.

Not only is the TIGREN V100DD ready-for-use and ideal for the home user, small garages and workshops, it also caters for portable air requirements.

As part of the curated TIGREN range, the V100DD is affordable and reliable, imparting powerful performance via unique and user-friendly features that offer the best, without spending big money.

Browse TIGREN Equipment for more no-nonsense, affordable, and reliable kit.

  • No-nonsense workhorse compressor
  • Direct-driven model that is fully ready-for-use
  • Wheel-mounted for easy manoeuvrability and positioning
  • Anti-vibration rubber mounts for tank and pump protection
  • 2-cylinder V-configuration splash oil-lubricated pump
  • 2-pole brushless induction motor for longer life and performance
  • Single stage twin cylinder compression for increased production
  • Heavy-duty cast iron barrel for higher heat efficiency and life
  • Force air cooling via motor fan ducting for added protection
  • Ideal for the home user, small garages, and workshops, plus portable air applications

Technical Information

ITEM NO. 04388
Input Supply: 230v (13A)
Motor Power: 2.2kW (3hp)
Receiver Size: 100ltr
Piston Displacement: 13.00CFM (368ltr/min)
Free Air Delivery (FAD): 8.00CFM (227ltr/min)
Max. Air Pressure: 116psi (8bar)
Net Weight: 59.10kg
Gross Weight: 62.50kg
Product Dimensions: 850(H) x 350(W) x 1350mm(D)
Packaged Dimensions: 1090(H) x 820(W) x 390mm(D)
