SIP 12v Diesel Transfer Pump with Fuel Meter

06805

SIP 12v Diesel Transfer Pump with Fuel Meter06805SIP 12v Diesel Transfer Pump with Fuel MeterSIP 12v Diesel Transfer Pump with Fuel MeterSIP 12v Diesel Transfer Pump with Fuel MeterSIP 12v Diesel Transfer Pump with Fuel Meter
06805
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

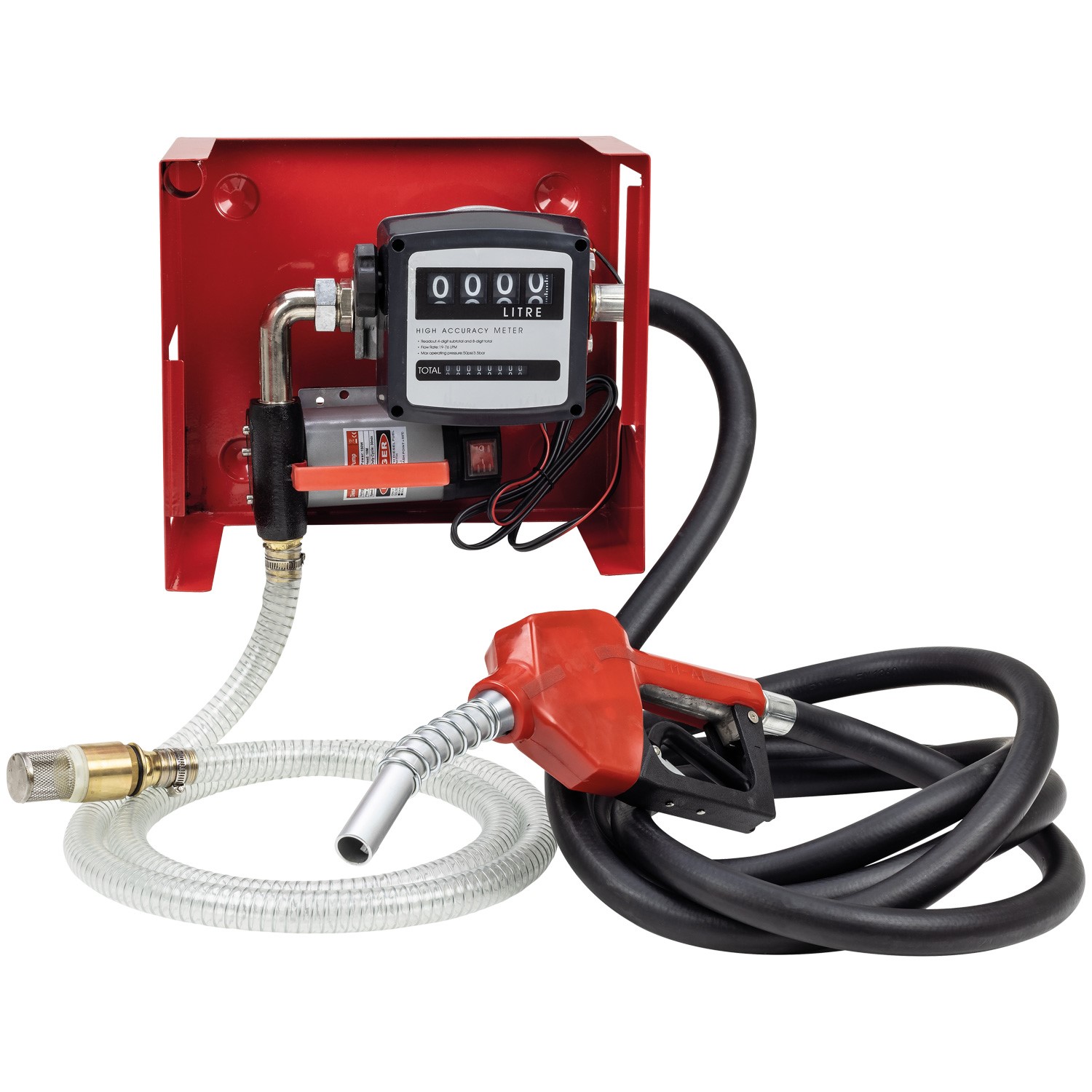

The SIP 12v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 10mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuels oils, and provides high accuracy and speed-of-use.

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

KEY FEATURES

  •  Compact design with wall-mountable bracket
  •  Meter with 4 digit subtotal and 8 digit grand total
  •  Powerful 160w DC motor with copper-wound armatures
  •  Supplied with non-return value to aid self-priming
  •  Built-in bypass system for start and stop operation
  •  10mtr pumping head and 2mtr suction head

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 12v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 10mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuels oils, and provides high accuracy and speed-of-use.

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

  • Compact design with wall-mountable bracket
  • Meter with 4 digit subtotal and 8 digit grand total
  • Powerful 160w DC motor with copper-wound armatures
  • High-quality aluminium nozzle for added durability
  • Supplied with non-return value to aid self-priming
  • Built-in bypass system for start and stop operation
  • High-quality delivery and suction hoses
  • 10mtr pumping head and 2mtr suction head
  • 40ltr/min flow rate for easy operation
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 06805
Input Voltage: 12v DC
Motor Power: 160w
Max. Pumping Head: 10mtr
Max. Flow Rate: 40ltr/min
Speed: 3200rpm
Max. Working Pressure: 15psi (1bar)
Duty Cycle: 30min
Connection: 3/4" BSP
Protection: IPX4
Suction Hose Length: 2mtr
Delivery Hose Length: 4mtr
Net Weight: 12.50kg
Gross Weight: 13.50kg
Product Dimensions: 300(H) x 340(W) x 245mm(D)
Packaged Dimensions: 410(H) x 360(W) x 330mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
No extended details available.
