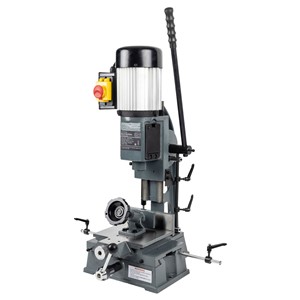

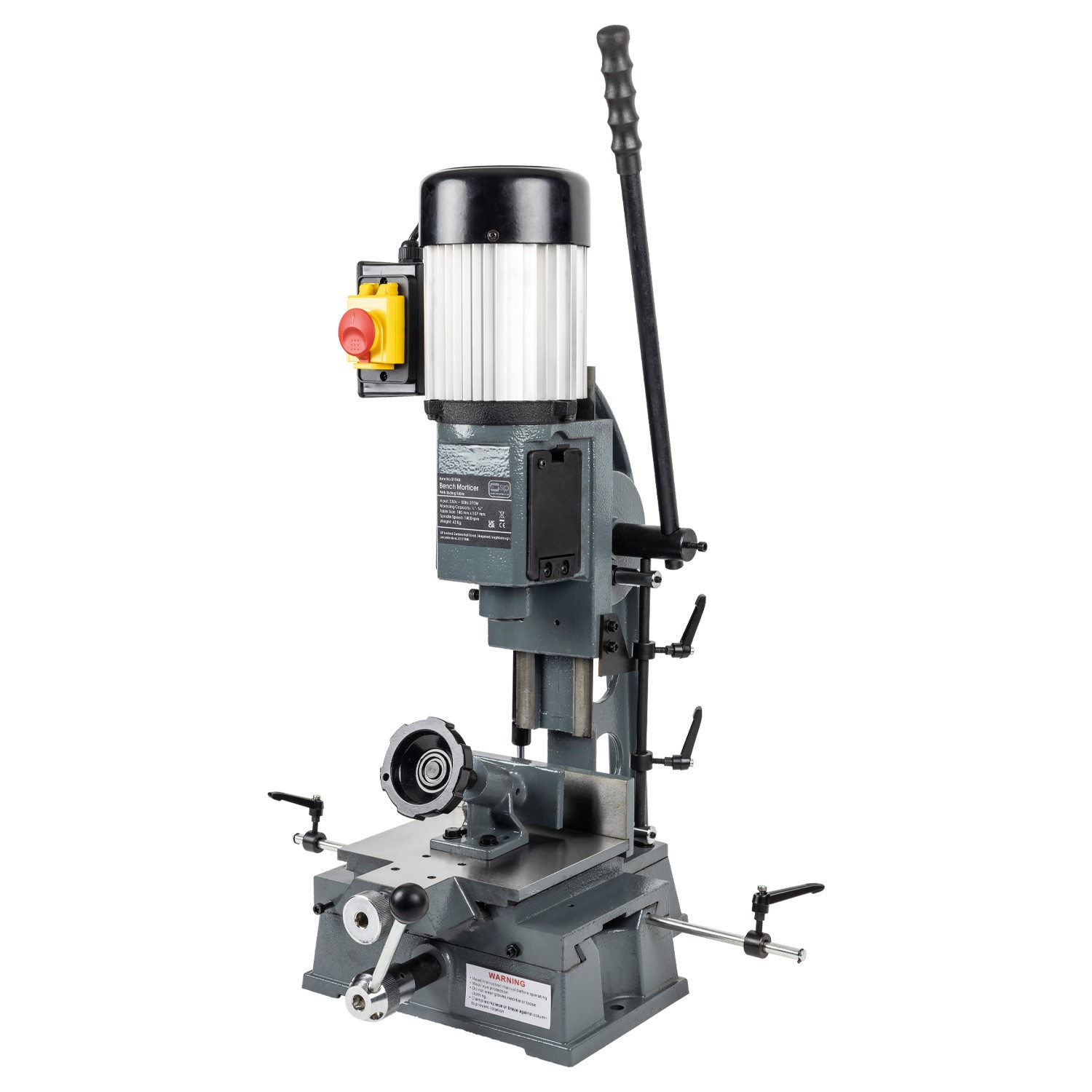

SIP Bench Morticer with Sliding Table

01944

SIP Bench Morticer with Sliding Table01944SIP Bench Morticer with Sliding TableSIP Bench Morticer with Sliding TableSIP Bench Morticer with Sliding TableSIP Bench Morticer with Sliding Table
01944
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The SIP Bench Morticer with Sliding Table can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a bench-mounted pillar drill, and utilises a heavy-duty clamp that keeps any workpiece secure.

Designed for home, trade, and professional woodwork applications.

KEY FEATURES

  • 6mm (1/4") to 16mm (5/8") chisel capacity
  • 130mm max. chisel stroke; 100mm chisel to table
  • Built from heavy-duty cast iron for durability
  • Design doubles as a bench-mounted pillar drill

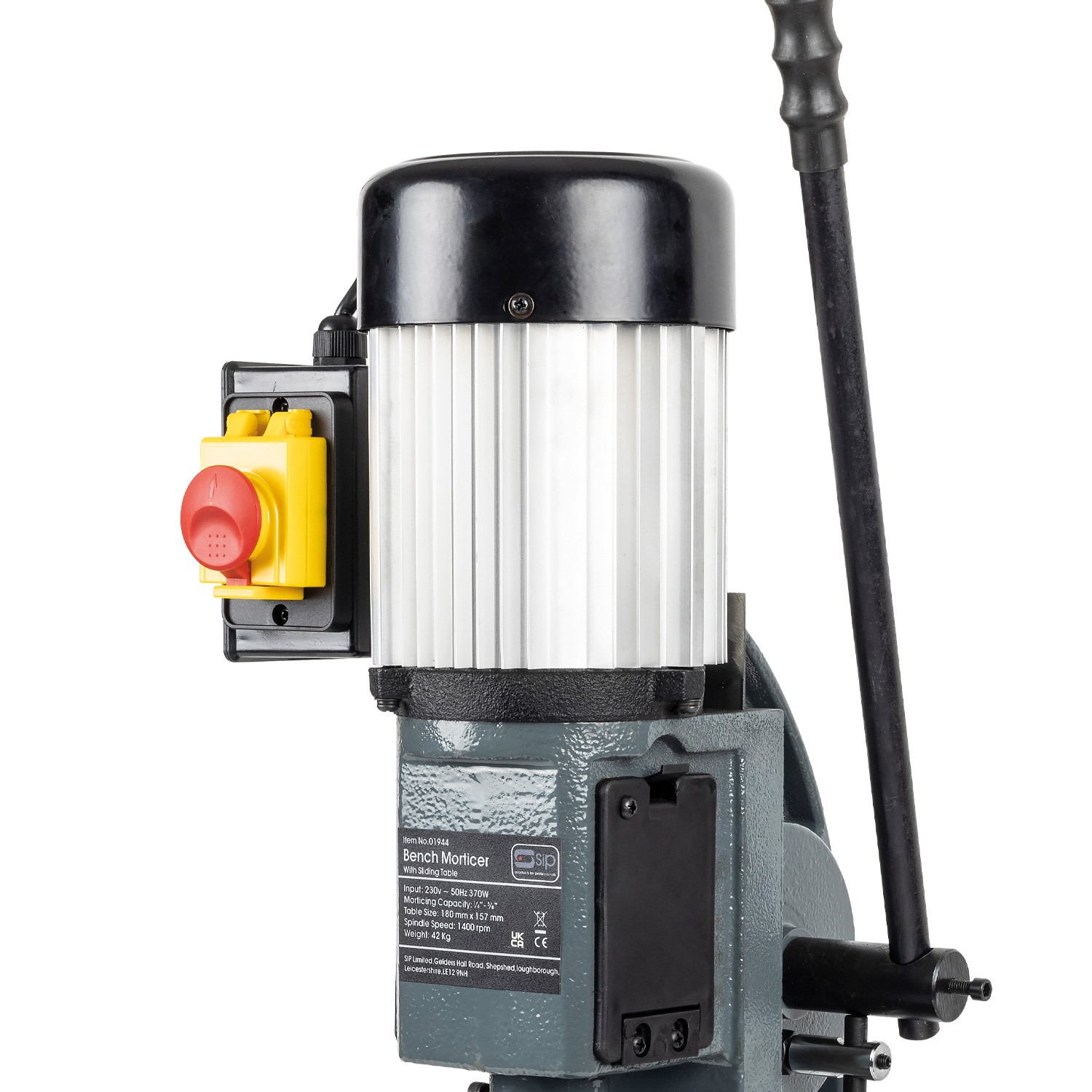

  • Integrated NVR switch for increased safety

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP Bench Morticer with Sliding Table can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a bench-mounted pillar drill, and utilises a heavy-duty clamp that helps to keep workpieces secure even in the most demanding tasks.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

  • 6mm (1/4") to 16mm (5/8") chisel capacity
  • 130mm max. chisel stroke; 100mm chisel to table

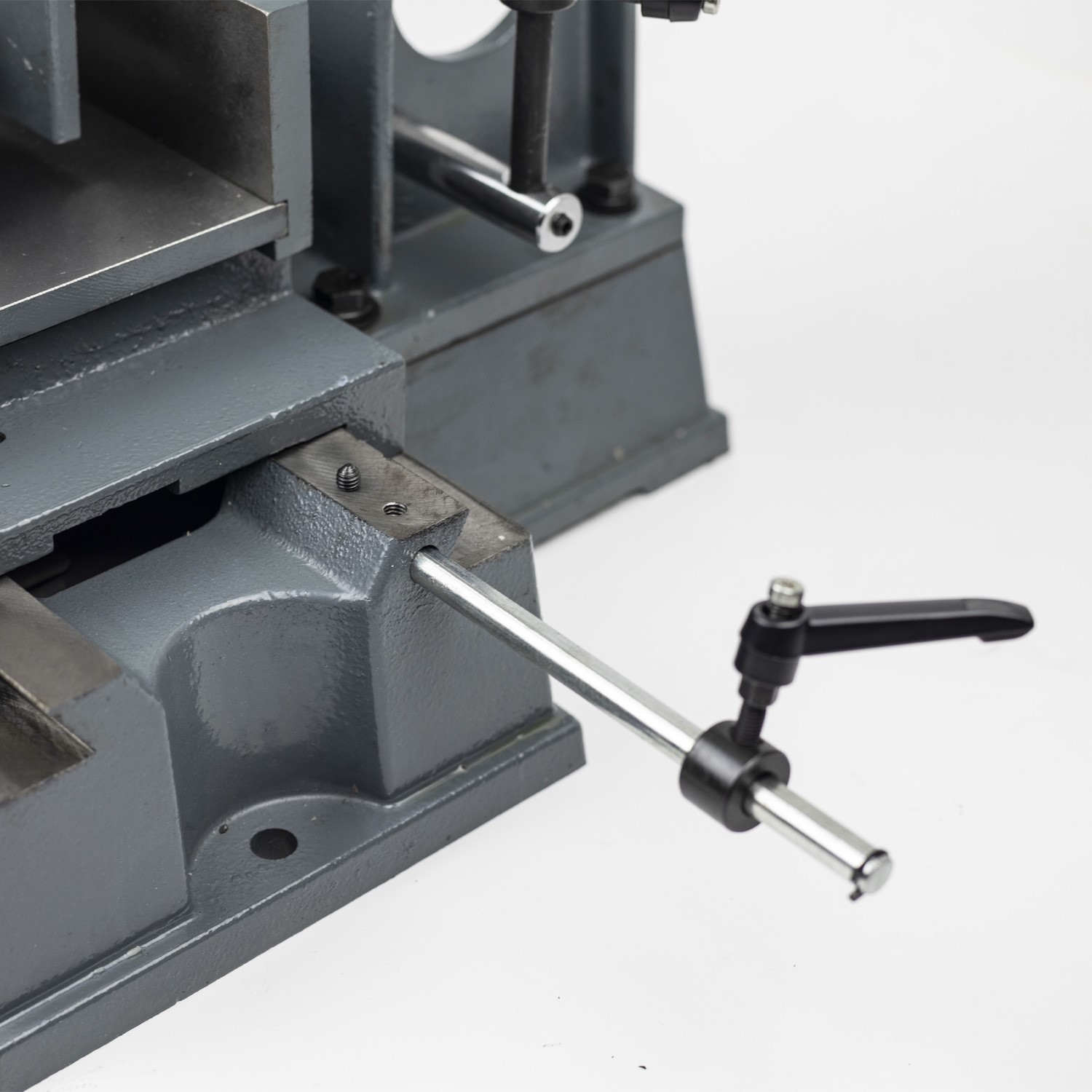

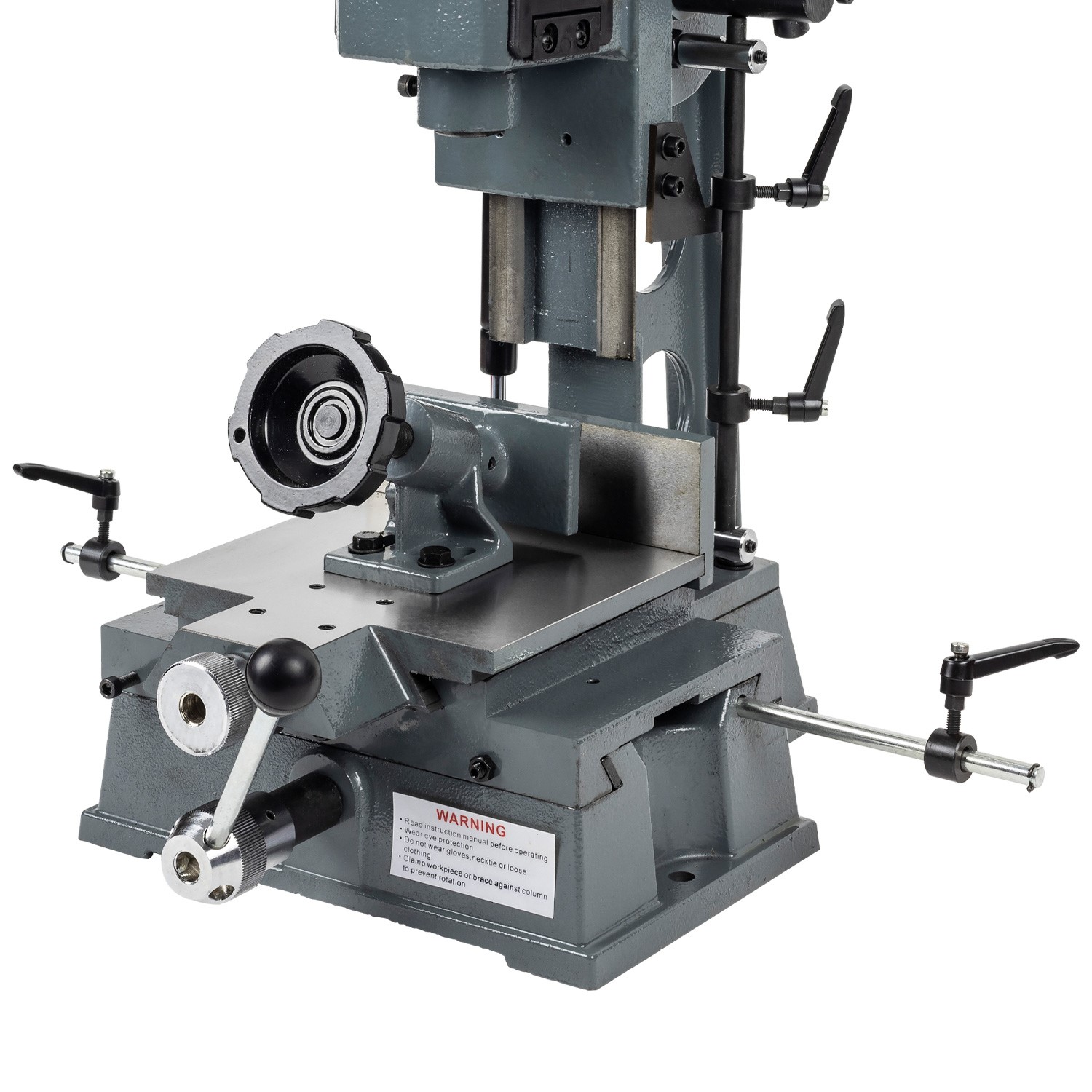

  • Versatile longitudinal and lateral table movement
  • 180mm x 157mm table size for larger workpieces
  • Built from heavy-duty cast iron for durability
  • Design doubles as a bench-mounted pillar drill
  • Heavy-duty clamps keeps the workpiece secure
  • Large work area for bigger or irregular timber
  • Integrated NVR switch for increased safety
  • SIP 2-Year Standard Silver Warranty

Product Video



Technical Information

ITEM NO. 01944
Input Supply: 230v (13A)
Motor Power: 370w (0.5hp)
Morticing Capacity: 6mm - 18mm (1/2" - 5/8")
Max. Chisel Stroke: 130mm
Max. Chisel to Table: 100mm
Max. Clamping Width: 80mm

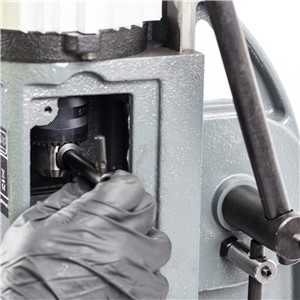

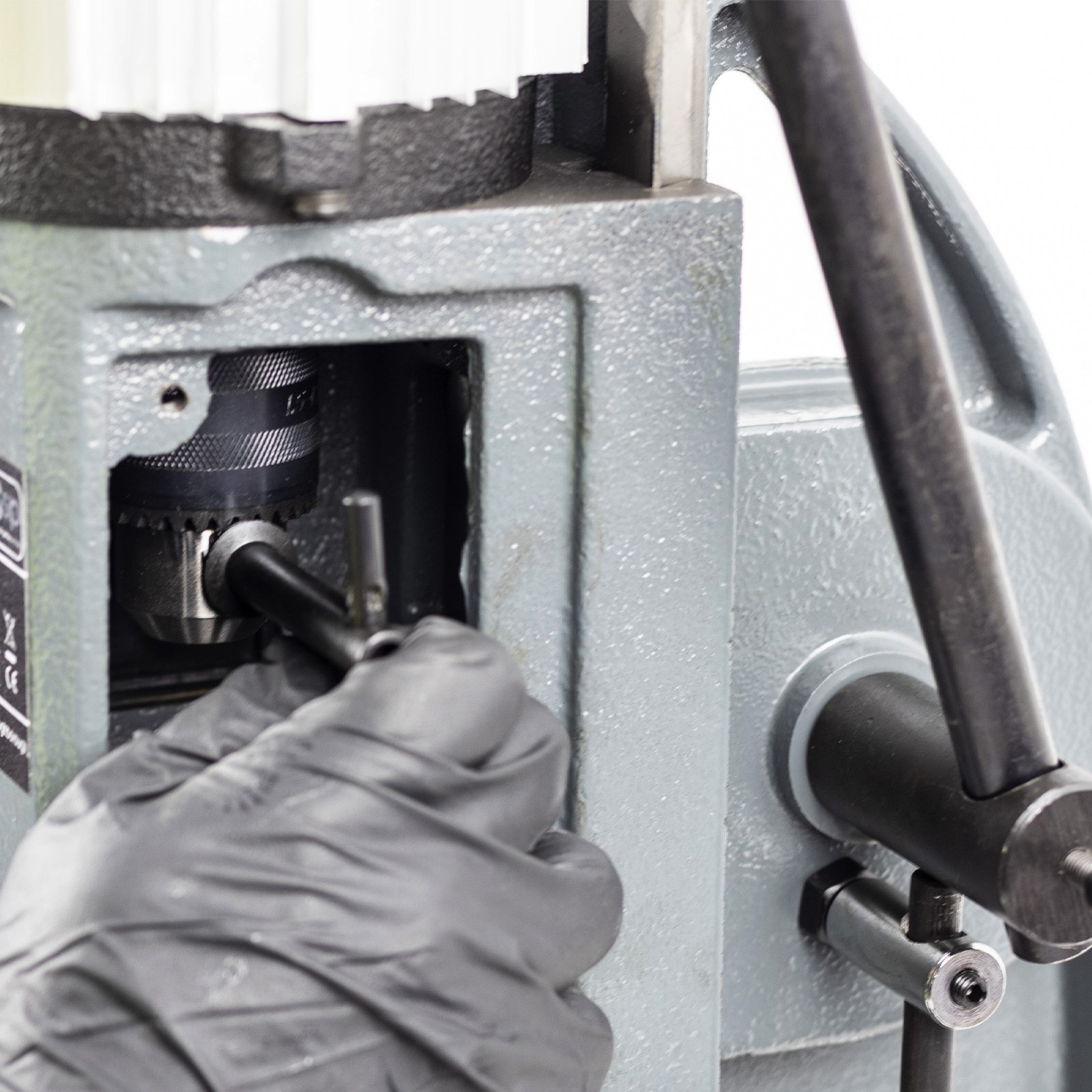

Chuck Capacity: 13mm
Work Table Size: 180mm x 157mm
Base Size: 320mm x 270mm
Net Weight: 38.00kg
Gross Weight: 41.00kg
Product Dimensions:
Packaged Dimensions: 350(H) x 680(W) x 450mm(D)
