SIP 4" Belt Linisher

01960

Click on image to enlarge

*These images are representative

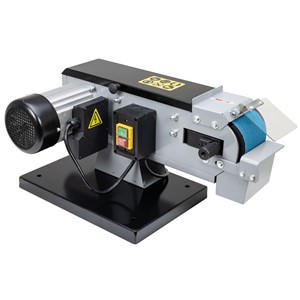

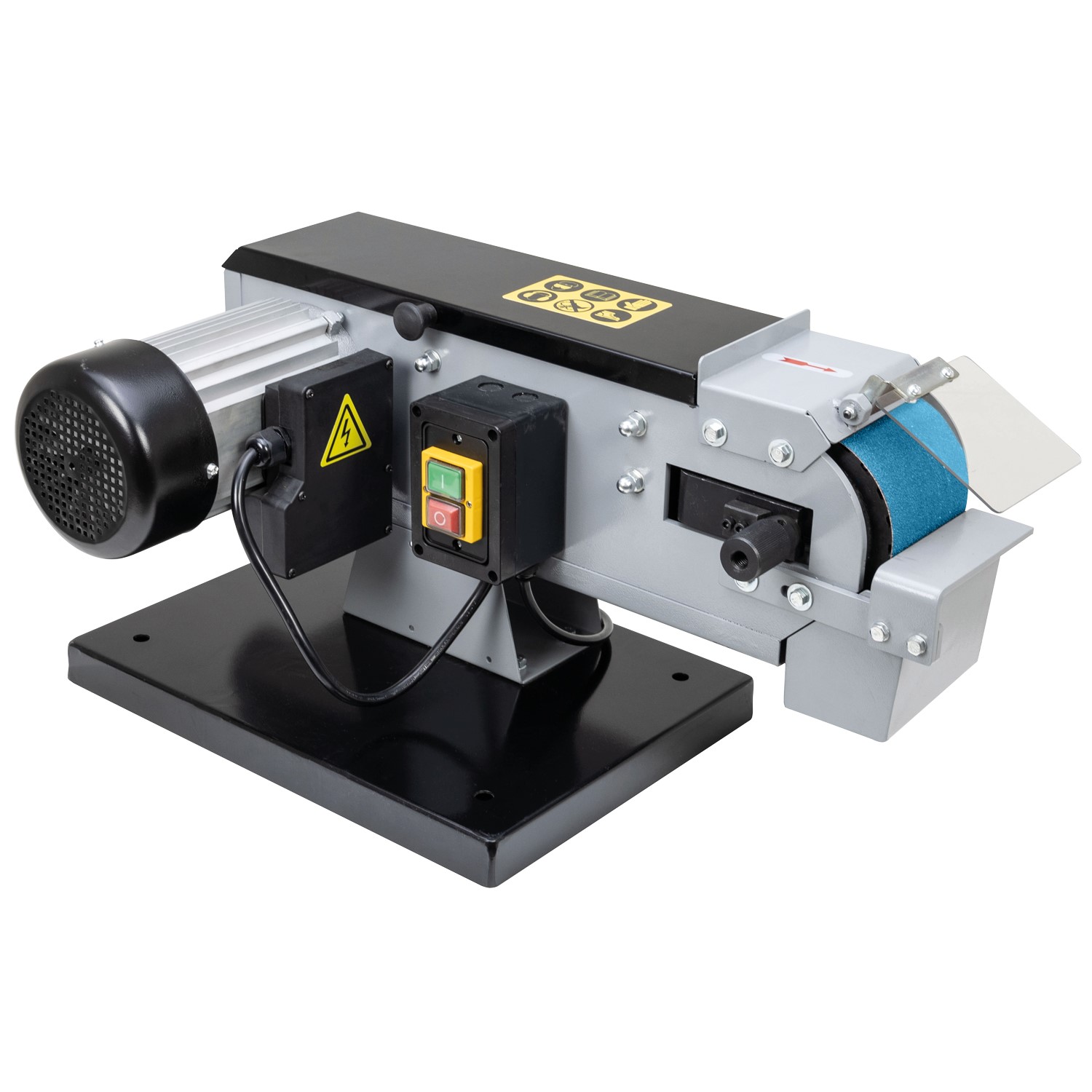

SIP 4" Belt Linisher

01960

The SIP 4" Belt Linisher is designed for removing sharp edges and burrs from workpieces and finishing metalwork products. This includes cleaning and grinding of products, tubes and profiles. Ideal for metals including mild steel, aluminium and stainless steel.

With a high-quality and long-lasting zirconium bonded belt, this linisher is essential for professional metalwork, engineering and fabrication workshop processes.

KEY FEATURES

Two-point belt access at wheel and full platen for versatility
High-quality and long-lasting 100mm x 1220mm zirconium bonded belt
Quick-release belt via easy-access panel for quick belt replacement
100mm extraction port for pairing with SIP Metal Dust Collector (01996)
Bench or floor-mountable using supplied steel stand or pedestal extension
Enhanced safety features include NVR switch, eye protection and spark trap

SIP 2-Year Standard Silver Warranty* | Find out more

BUY NOW

Full Specification

The SIP 4" Belt Linisher is designed for removing sharp edges and burrs from workpieces and finishing metalwork products. This includes cleaning and grinding of products, tubes and profiles. Ideal for metals including mild steel, aluminium and stainless steel.

With a high-quality and long-lasting zirconium bonded belt, this linisher is essential for professional metalwork, engineering and fabrication workshop processes.

Applications & uses: Ideal for removing sharp edges and burrs from metal pieces. Suitable for finishing mild steel, aluminium or stainless steel metalwork items.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

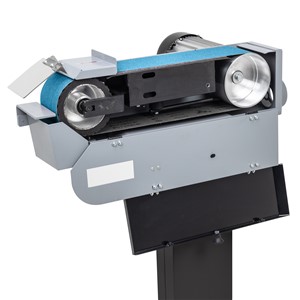

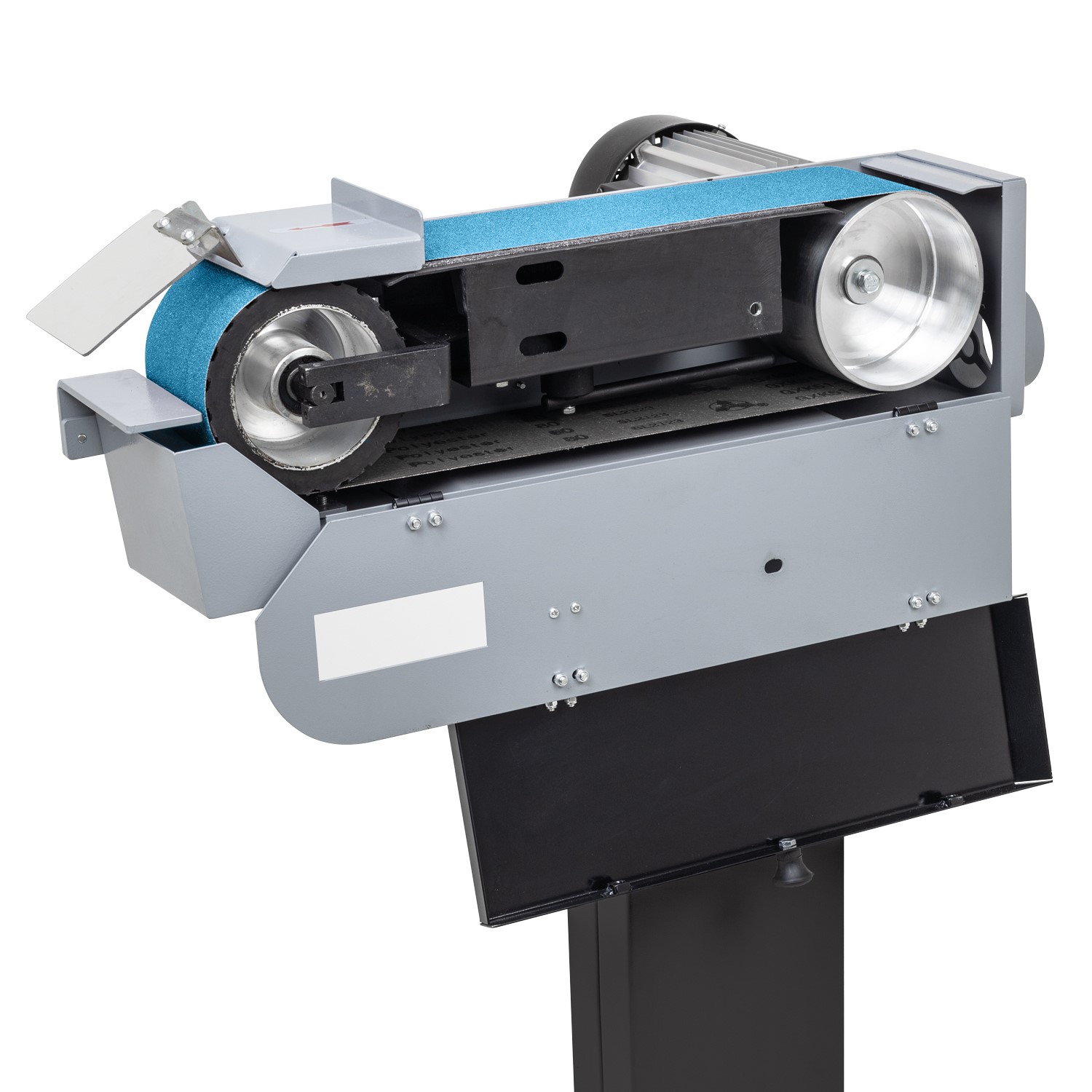

TWO-POINT BELT ACCESS FOR VERSATILE USE IN A VARIETY OF LINISHING APPLICATIONS

This versatile machine has 2 accessible working points (wheel and full platen) for a range of linishing tasks. Belt speed runs at 19mtr/sec for robust application use.

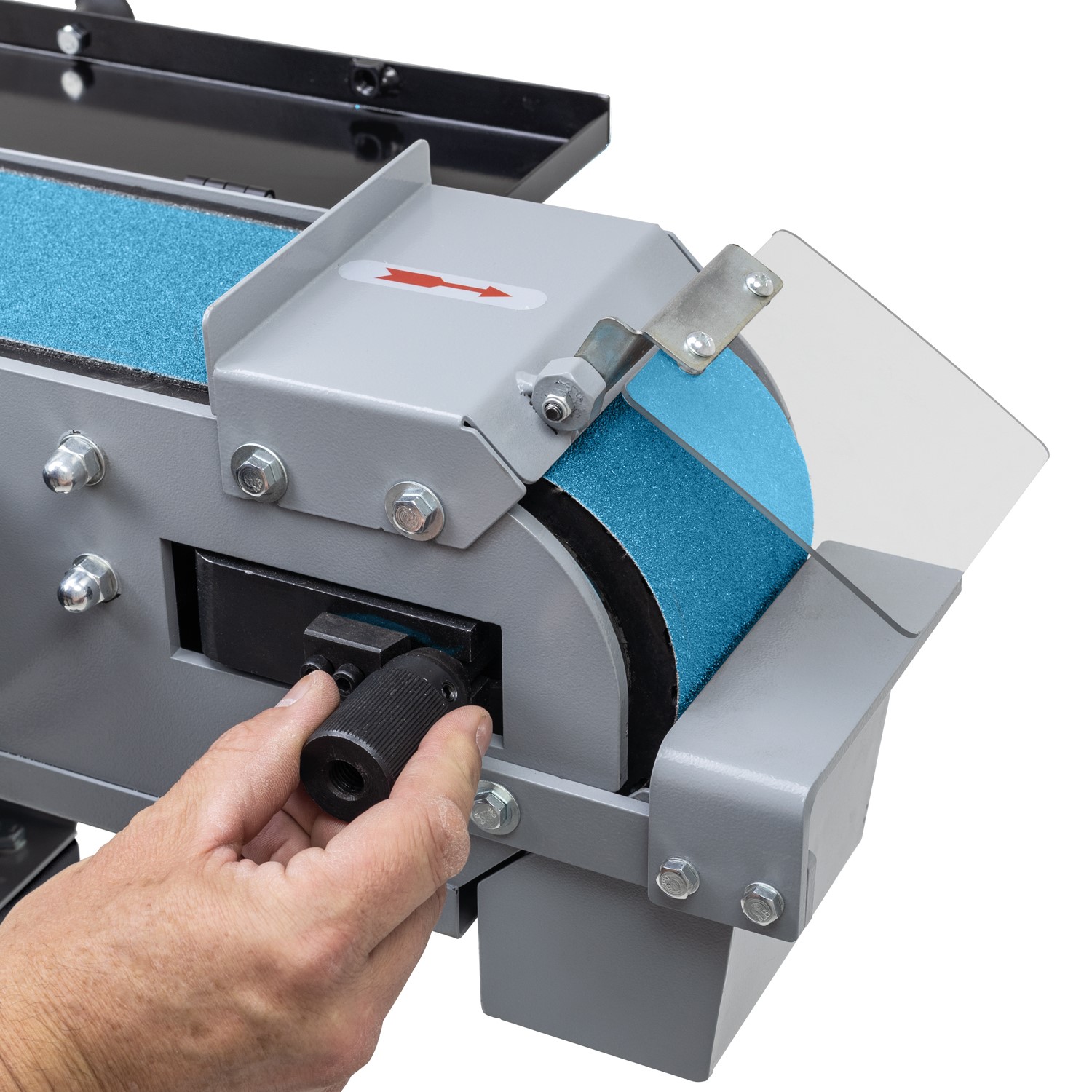

An adjustable tool support ensures workpiece makes accurate contact with the wheel. An adjustable belt tracker is fitted to ensure abrasive belt is centralised at all times.

100MM X 1220MM ZIRCONIUM BONDED BELT OFFERS SUPERIOR DURABILITY & HEAT RESISTANCE IN USE

Long-lasting zirconium bonded belt for smoothing and finishing a variety of metal types. This includes mild steel, aluminium and stainless steel.

QUICK-RELEASE BELT CHANGES VIA ACCESS PANEL HELPS REDUCE MACHINE DOWNTIME

The abrasive zirconium bonded belt can be quickly released and replaced using an easy-access panel.

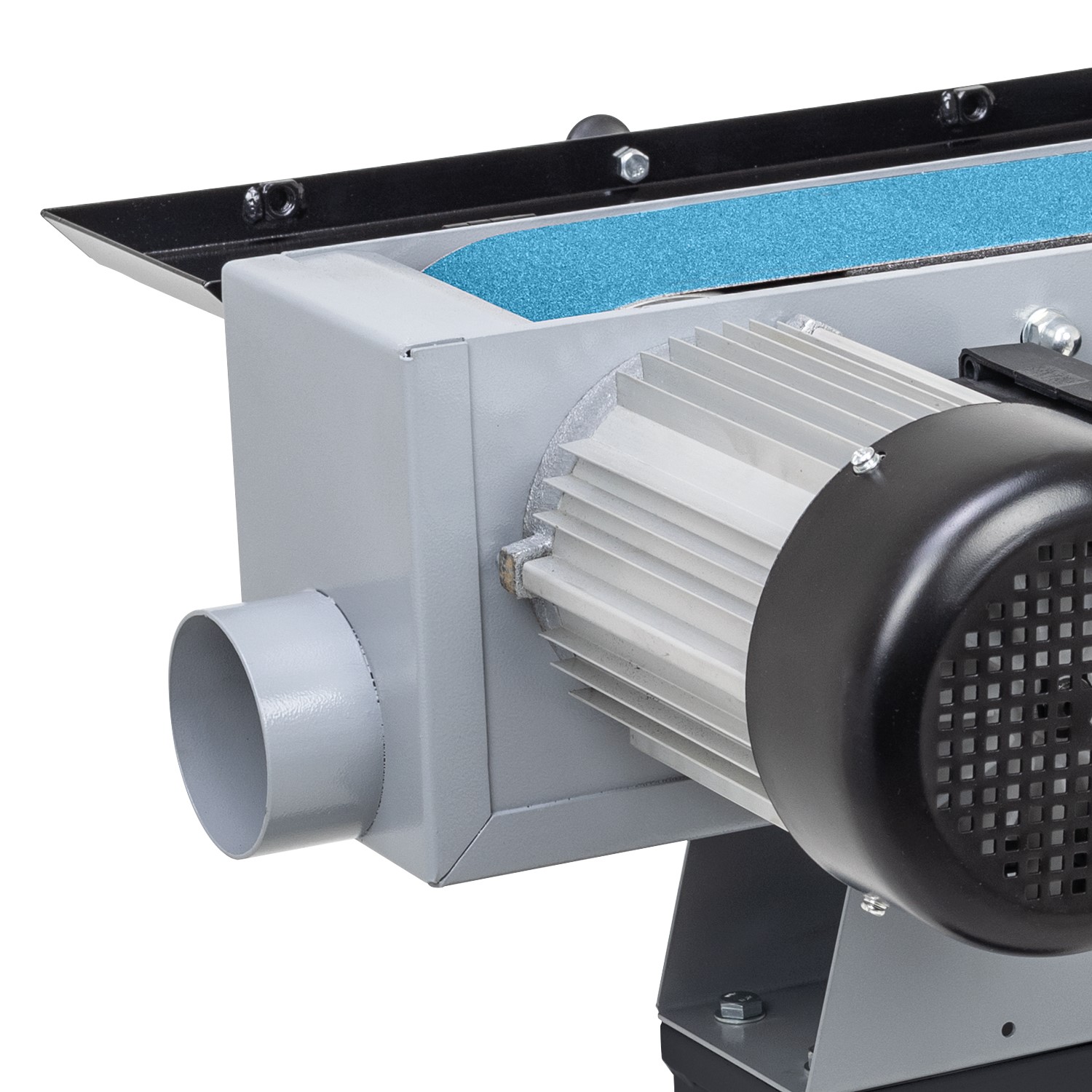

METAL DUST EXTRACTION PORT ALLOWS PAIRING WITH A DUST EXTRACTION SOLUTION

A 100mm metal dust extraction port to be paired with the SIP Metal Dust Collector (01996, sold separately).

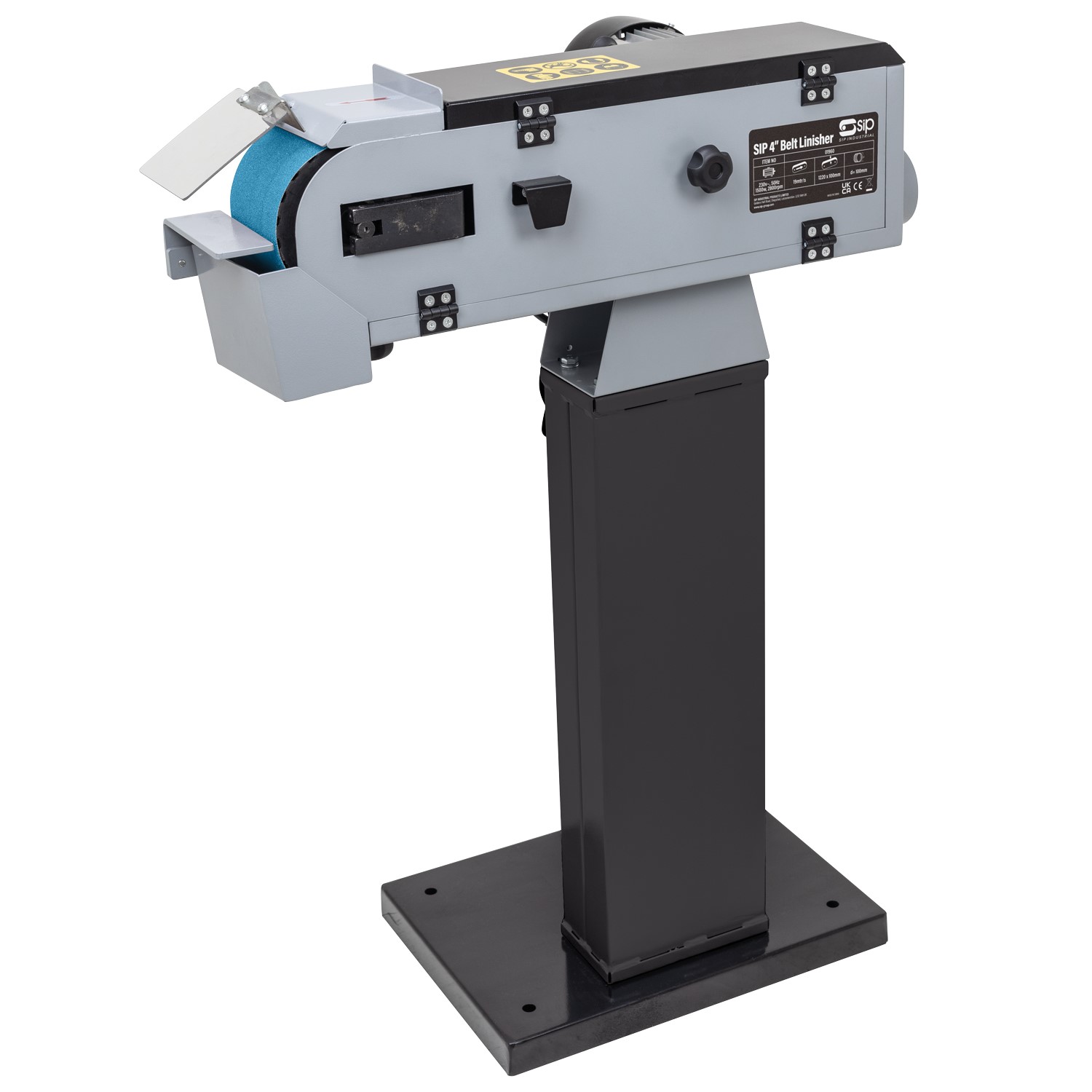

VERSATILE BENCH OR FLOOR-MOUNTABLE DESIGN USING SUPPLIED ACCESSORIES

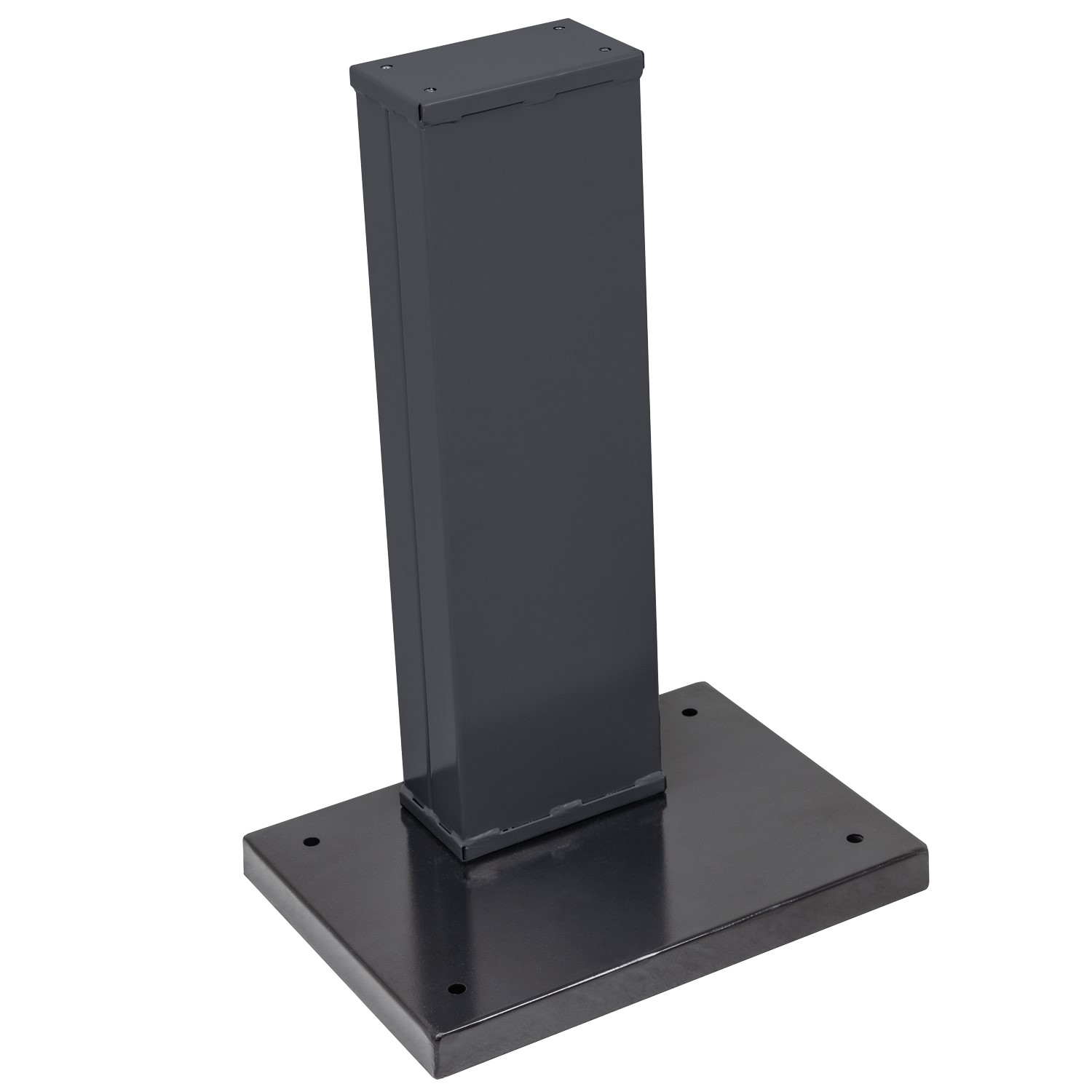

Purpose-built steel stand allows the linisher to be bench-mounted or floor-mountable using the pedestal extension.
This makes the linisher ideal for a variety of workshop environments. Steel stand and pedestal extension included.

ENHANCED SAFETY FEATURES

Fitted with NVR switch, adjustable eye protection and spark trap for greater user safety.

Technical Information

ITEM NO.	01960
Input Supply:	230v (13A)
Motor Power:	1.5kW (2hp)
Belt Size / Grade:	1220mm x 100mm / 60G
Belt Speed:	19mtr/sec
Flat Grinding Height:	860mm
Contact Wheel Size:	125mm x 100mm
Working Height (Contact Wheel):	800mm
Net Weight:	40.00kg
Gross Weight:	45.00kg
Product Dimensions:	885(H) x 390(W) x 650mm(D)
Packaged Dimensions:	750(H) x 400(W) x 330mm(D)
